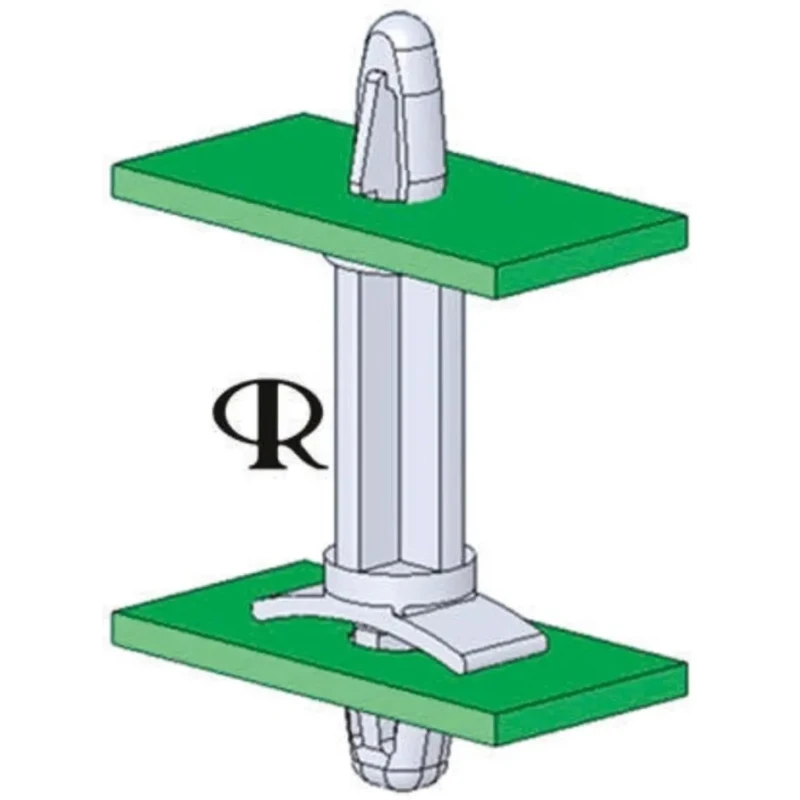

Essentra Nylon PCB Support Pillar for 3.18 mm PCB Hole LCBS-10-01 LCBS-10-01.
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Essentra |
| Material | Nylon |
| Colour | Natural |
| Model | LCBS-10-01. |
| Standards/Approvals | RoHS |
| PCB Hole Diameter | 3.18mm |
| Chassis Hole Diameter | 4.75mm |
| Chassis Thickness | 1.57mm |
Key Features
- Constructed from high-quality Nylon 66 material for durability and strength.
- Fits PCB holes with 3.18 mm diameter precisely.
- Designed to snap into place on both chassis and PCB without screws.
- Compatible with chassis holes of 4.75 mm diameter.
- Supports chassis thickness up to 1.57 mm effectively.
- Natural color finish suitable for various electronic applications.
- Compliant with RoHS standards for environmental safety.
- Locking type PCB pillars that are easy to install and release by hand.
Product Description
The Essentra LCBS-10-01 Nylon PCB Support Pillar is a precision-engineered component designed specifically to support printed circuit boards (PCBs) with a 3.18 mm hole diameter. Manufactured in the United Kingdom, this support pillar is crafted from Nylon 66 material, providing excellent mechanical strength and reliable performance in electronic assembly processes.
This support pillar securely snaps into place on both the chassis and the board, eliminating the need for additional fixing screws, thus simplifying installation and reducing assembly time. The pillar is designed to fit chassis holes with a 4.75 mm diameter and accommodates chassis thicknesses up to 1.57 mm, making it suitable for various electronic enclosures.
The natural color of the nylon material blends well in most assemblies and is RoHS compliant, ensuring adherence to environmental regulations. The locking feature allows easy removal by hand without damage to the support pillar or the PCB, facilitating maintenance and replacement procedures.
Crafted from Nylon 66 for strong and durable support. Fits PCBs with 3.18 mm hole diameter for precise installation. Locks securely onto chassis with 4.75 mm hole diameter. Accommodates chassis thickness of 1.57 mm. Natural color for versatile use across electronic applications.
RoHS compliant, ensuring environmental safety. Tool-less installation and removal enhance assembly efficiency. Manufactured in the United Kingdom with quality standards.
This Nylon PCB Support Pillar is ideal for use in electronic components manufacturing, assembly lines, PCB prototyping labs, and cleanroom environments. Its robust design and easy installation make it suitable for industrial, laboratory, and commercial electronics assembly applications.
Explore the Essentra range of electronic components and PCB supports for reliable and efficient assembly solutions on EnvMart.
