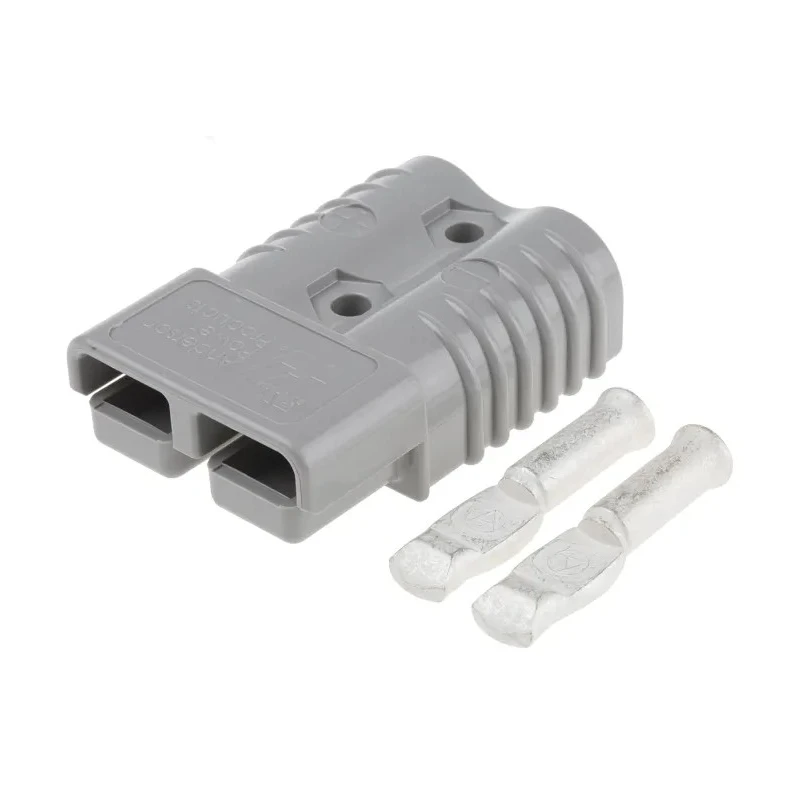

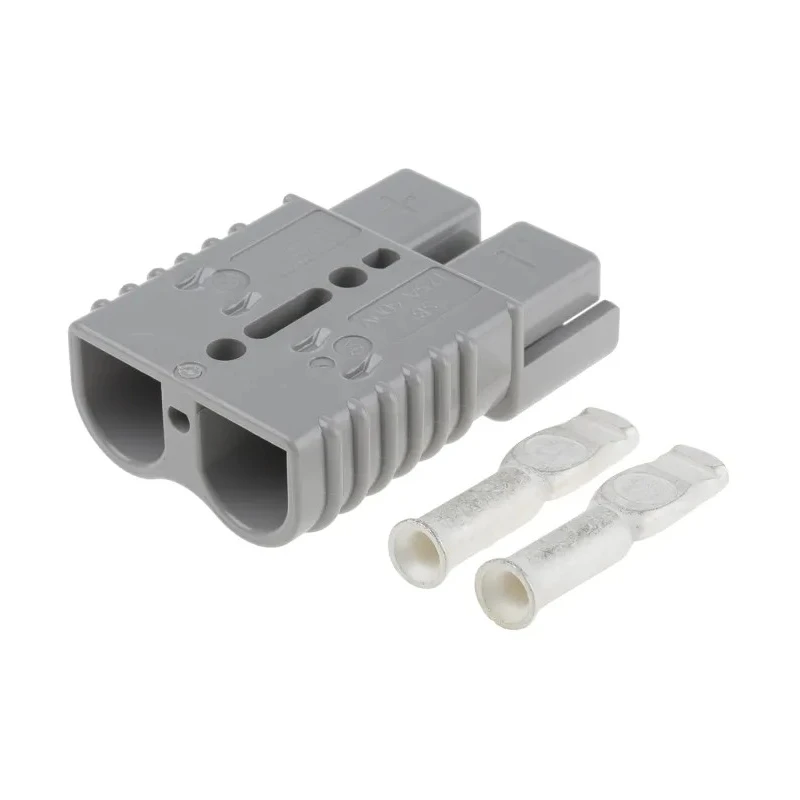

Anderson Power Products SB175 Series 2 Way Male Battery Connector, Straight Cable Mount, 600V, 280A SB175

Anderson Power Products SB175 Series 2 Way Male Battery Connector is a robust connector designed for high current power applications. Rated at 600 volts and capable of handling 280 amps, this connector features a durable polycarbonate housing that offers excellent chemical resistance, suited for industrial and electronic environments.

The connector's two silver-plated copper alloy contacts provide exceptional conductivity and corrosion resistance, ensuring reliable electrical performance. Its straight cable mount design with solder termination makes installation straightforward and secure.

Operating safely within a temperature range from -20°C to 105°C, this component is ideal for various demanding applications including industrial power distribution, battery connections, and electronic modules requiring stable power delivery.

Notably, the SB175 series has been re-tested and upgraded to handle 280 amps continuously - an improvement from the previous 175 amp rating. Despite this, the housing may still be marked for 175 amps until future updates are implemented. It is UL rated for hot-plugging up to 100 amps, enhancing safety during live connections.

The connector features two contacts for secure electrical connectivity. Constructed with a polycarbonate housing providing chemical resistance and durability. Silver-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.

Designed for cable mounting with a straight orientation for ease of installation. Operates reliably between -20°C to 105°C for versatile temperature applications. Termination type is solder, providing firm and stable wire connection.

Series upgraded to support 280A continuous current with UL hot plug rating up to 100A.

This battery connector is manufactured in the United Kingdom, ensuring high-quality standards and reliability. It is particularly suitable for industrial, electronic, electrical power distribution, and automotive battery applications where robust connections are critical.
