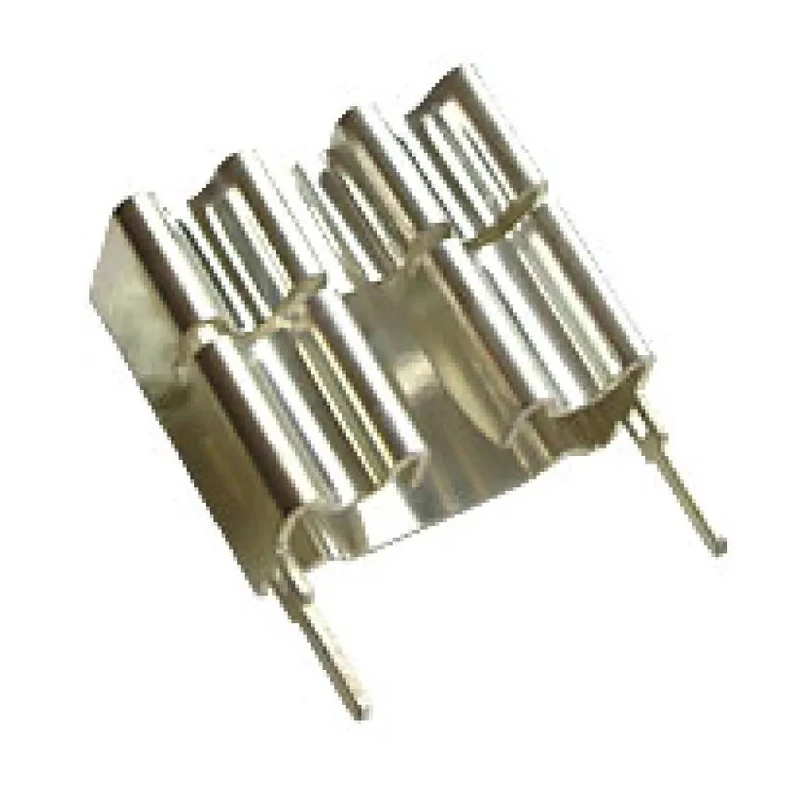

AAVID THERMALLOY Heatsink TO-220 Heat Sinks 20.3°C/W Tin Plated Aluminium 24 mm x 11 mm x 22 mm PF758G

AAVID THERMALLOY PF758G is a high-performance heatsink specifically engineered for TO-220 package type semiconductor devices. With a thermal resistance rating of 20.3°C/W, this heatsink effectively dissipates heat, ensuring reliable semiconductor operation and longevity. It is constructed from aluminium and finished with a tin plating to enhance both thermal conduction and corrosion resistance.

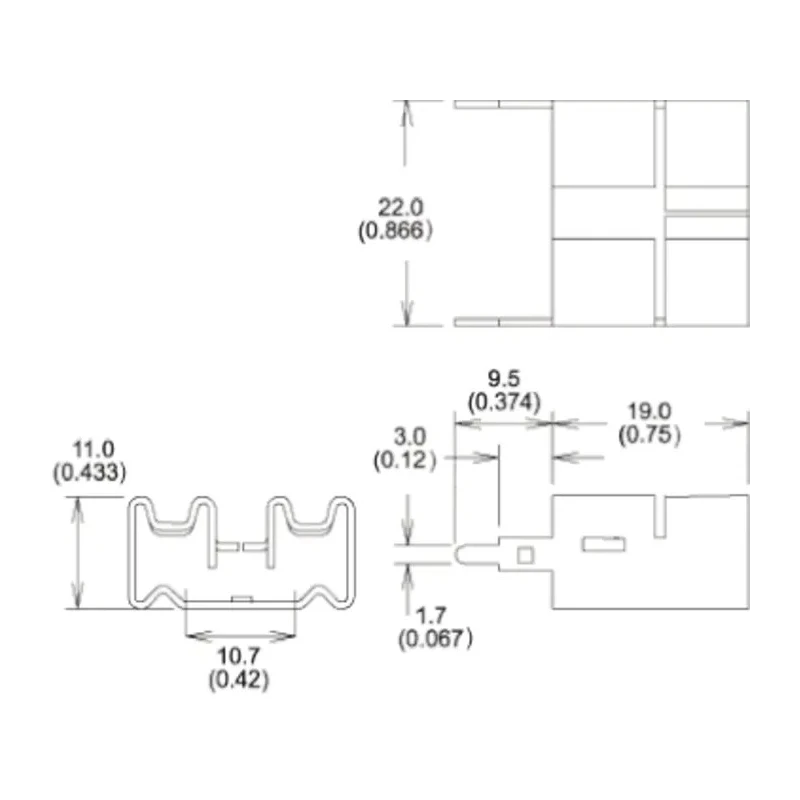

The heatsink measures 24 mm in height, 11 mm in length, and 22 mm in width, making it suitable for compact electronic assemblies. Integrated tabs allow for PCB through-hole fastening and soldering, while locating features provide simple device alignment. The spring action mechanism ensures secure contact between the heatsink and the device, optimizing thermal transfer.

This unit is silver in color and complies fully with RoHS environmental standards, making it suitable for industrial, electronics manufacturing, and HVAC applications where efficient thermal management is critical. It is commonly used in electronics heating and cooling systems to maintain device temperature within safe levels.

Constructed from robust aluminium with tin plating for superior heat dissipation. Compact dimensions enable integration into limited space assemblies. Features integrated mounting tabs with PCB through-hole fastening. Locating features facilitate precise device placement and alignment.

Spring action holds the device firmly for optimal thermal transfer. Silver finish provides corrosion resistance and durability. RoHS compliant for environmental safety assurance. Ideal for use in electronics heating and cooling applications.
