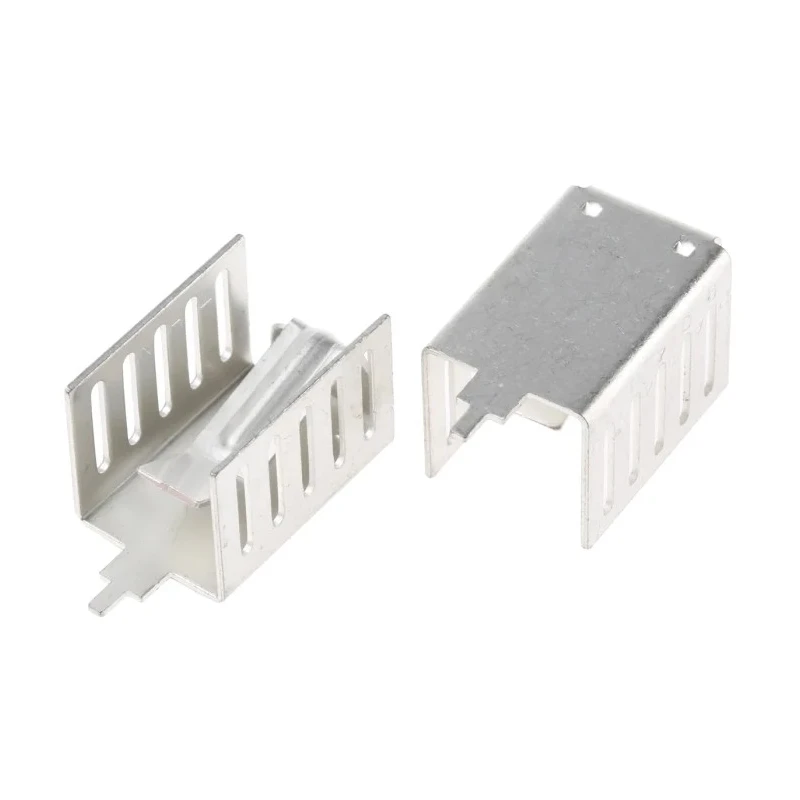

AAVID THERMALLOY Heatsink for Single Devices and Printed Circuit Boards 20.3°C/W Thermal Resistance 19.81 mm Height 7141DG

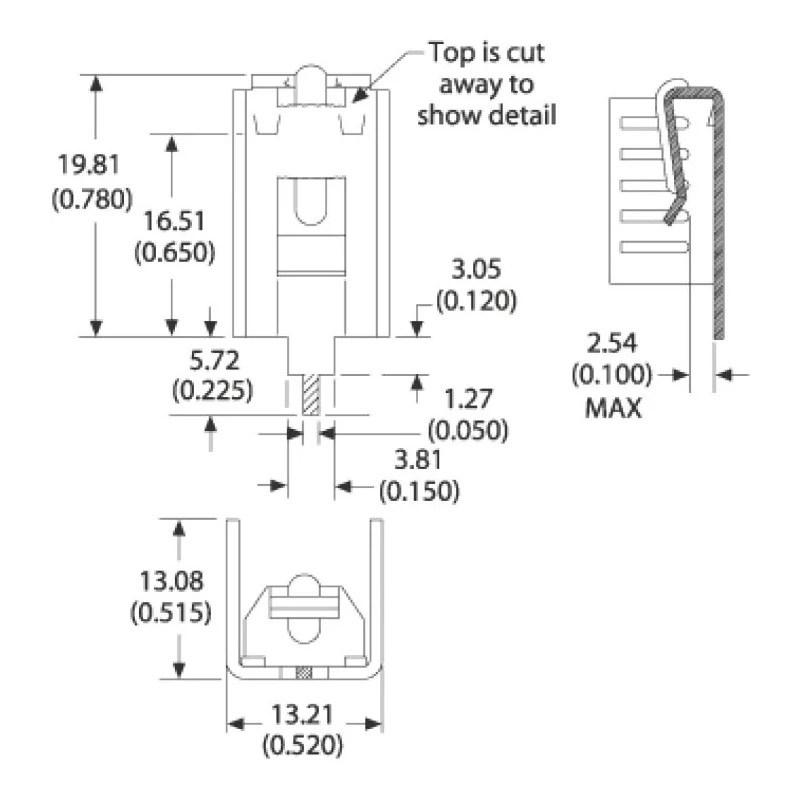

The AAVID THERMALLOY 7141DG heatsink is engineered specifically for single devices, dual devices, and printed circuit boards, offering a thermal resistance of 20.3°C/W. This heatsink features compact and precise dimensions (13.08 mm length, 13.21 mm width, and 19.81 mm height), making it suitable for demanding applications where space is constrained.

Manufactured using high-quality copper and aluminium, the heatsink provides efficient heat dissipation critical for maintaining device performance and longevity in industrial, electronics, HVAC, and automation environments. The black anodised finish with tin plating enhances durability and protects against corrosion.

It includes a PCB through-hole fastening system with an integrated clip and locking tab designed for a secure fit to devices. The single center tab can be soldered directly to the printed circuit board, ensuring stability and low thermal resistance for optimized heat transfer.

This product is compatible with TO-220 package types, widely adopted in thermal management solutions for electronic assemblies. Compliance with RoHS standards demonstrates commitment to environmental safety and regulatory demands.

The AAVID THERMALLOY 7141DG is well-suited for various industrial and laboratory uses, including electronics manufacturing, HVAC systems, and thermal management in automation applications. Its precise construction and robust materials make it an essential component for enhancing device reliability and performance.

Constructed from copper and aluminium materials for efficient heat dissipation. Compact dimensions of 13.08 mm length, 13.21 mm width, and 19.81 mm height allow easy PCB integration. Black anodised finish with tin plating ensures corrosion resistance and durability.

Features a PCB through-hole fastening with an integrated clip and locking tab for secure attachment. Compatible with TO-220 package types for versatile application. Designed to improve thermal management in electronic and HVAC systems.

RoHS compliant, ensuring environmental and safety standards are met. Single center tab allows direct soldering to the printed circuit board for enhanced stability. Explore more in our Electronics Components and Heatsinks category at EnvMart for the best thermal management solutions to suit your technical requirements.
