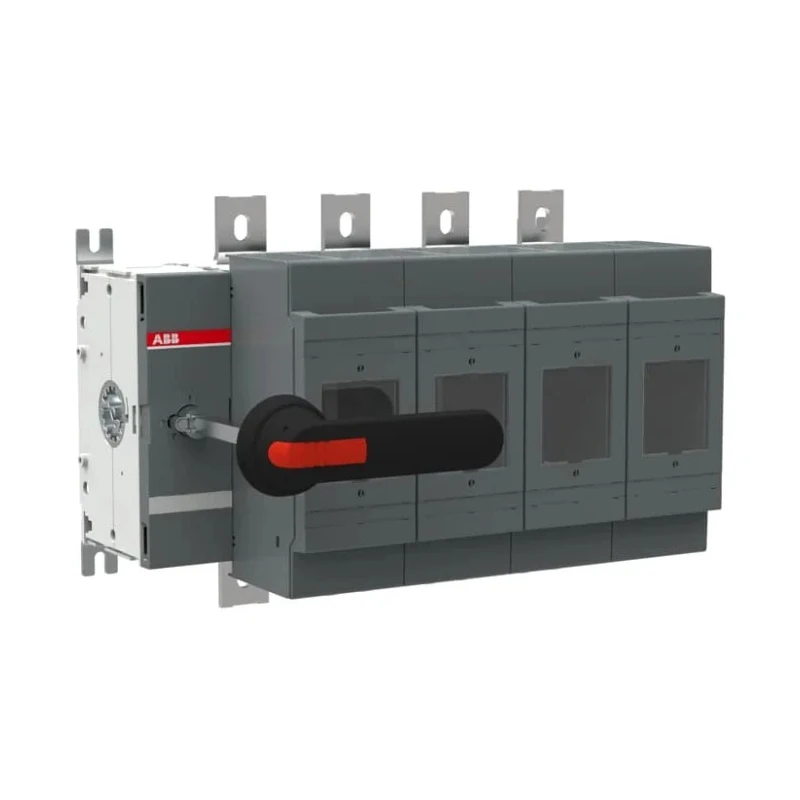

ABB Switch Disconnector & Isolator 4-Pole Base Mount with Lug Terminal 800A 1SCA022839R5430

Free Delivery in India | Lowest Global Shipping Charges

ABB Switch Disconnector & Isolator 4-Pole Base Mount with Lug Terminal 800A 1SCA022839R5430



Category Electrical Switches & Components Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Model	1SCA022839R5430
Mount Type	Base
Series	1SCA
Terminal type	Lug Terminal
Number of Poles	4
Standards/Approvals	RoHS
Fuse Current	800A

Key Features

The switch features a front-operated mode with a Class L fuse system for effective disconnecting and isolating.
It is base mounted with 4 poles and includes a pistol handle plus shaft for manual operation.
The lug terminals have a width of 39 mm, ensuring secure electrical connections.
The switch utilizes a pollution degree 3 rating, suitable for industrial environments.
The fourth pole is switched and acts as a fusible pole for enhanced protection.
The switches operating mechanism is type 04 positioned on the left side for convenience.
Line terminals are positioned top in - bottom out and bottom in - top out, enabling flexible wiring configurations.
The fuse size is rated at 800 A, matching industrial electrical applications.

Product Description

ABB 1SCA022839R5430 is a high-quality switch disconnector and isolator designed for industrial electrical applications requiring robust performance and safety. This 4-pole base-mounted device features a front-operated Class L fuse system, ensuring reliable disconnection and isolation of circuits.

The device incorporates lug terminals with a width of 39 mm to accommodate heavy-duty wiring. Its pistol handle design, including the shaft, provides ergonomic and efficient manual operation, facilitating safe switching.

Designed for pollution degree 3 environments, this switch disconnector withstands industrial conditions, maintaining dependable operation. The fourth pole functions as a switched fusible pole, enhancing protective capabilities in the installation.

The switches operating mechanism is of type 04 located on the left side, enabling easy access and control. The line terminals are flexibly arranged, allowing wiring either top in - bottom out or bottom in - top out, supporting diverse installation requirements.

Fuse rating at 800 A ensures compatibility with high current industrial circuits, suitable for protection and control in electrical panels and switchboards. The switch operates in front-operated mode with Class L fuse system for safety.

It is base mounted with 4 poles, ensuring comprehensive disconnection. Lug terminals with 39 mm width provide secure electrical connections. The pistol handle and shaft enable ergonomic manual operation. Pollution degree 3 rating allows use in industrial environments.

Fourth pole is a switched fusible pole for enhanced protection. Switches operating mechanism is type 04 positioned on the left side. Line terminals allow flexible wiring configurations: top in - bottom out or bottom in - top out.

Fuse size rated at 800 A for industrial electrical use.

This ABB switch disconnector and isolator is ideal for industrial, manufacturing, and automation sectors requiring reliable circuit isolation and fuse protection. Its robust features, flexible mounting, and operational ergonomics make it an excellent choice for electrical switchgear.
