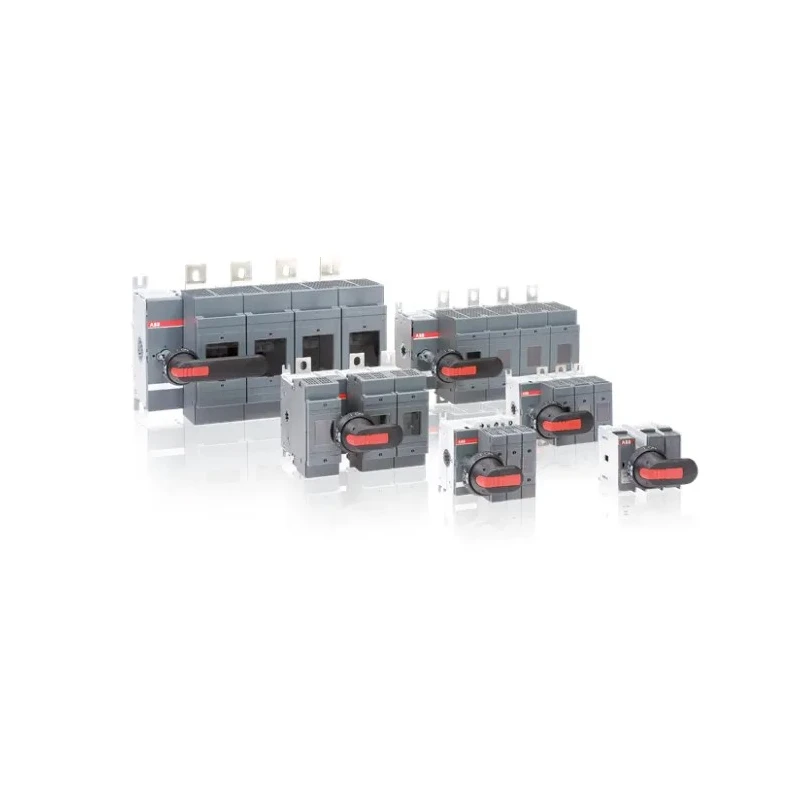

ABB Fuse Switch Disconnector 4-Pole 250A Enclosed Base Mount 500V 1SCA022779R0360

ABB 1SCA022779R0360 Fuse Switch Disconnector is a robust 4-pole enclosed electrical switch device rated for 250 amps and 500 volts, designed specifically for base mounting applications. This device employs a British Standard fuse system and is intended for front operation, making it suitable for industrial and commercial electrical installations requiring reliable disconnection and fuse protection.

The unit features lug-type terminals with a width of 25 mm, ensuring secure and stable electrical connections. The fourth pole is positioned on the right side and uses a switched solid link for enhanced switching reliability. This model does not include a handle or shaft, which are to be procured separately as accessories.

Compatible mechanical fuse sizes range from B1 to B3, supporting versatile fuse options according to system requirements. It conforms strictly to IEC 60947-3 standards, ensuring international compliance and operational safety. The device is built for pollution degree 3 environments, making it well suited for demanding industrial conditions.

The switch operating mechanism is classified as type 22, providing reliable operation between the poles. It is base mounted, enclosed, and designed for high switching currents, which makes it applicable for industrial power distribution, automation systems, and other electrical infrastructure requiring secure fuse switch disconnection.

This fuse switch disconnector operates with a British Standard fuse system ensuring compatibility with standard industrial fuses. Four enclosed poles provide isolation and protection at switching currents up to 250A at 500V.

Base mounting design allows stable installation within electrical panels or enclosures. Lug terminal design with 25 mm width terminals provide secure electrical connections. The fourth pole with a switched solid link enhances operational reliability and safety.

Compatible with fuse sizes B1 to B3, offering flexible mechanical fuse options. No auxiliary contacts are incorporated, simplifying the electrical configuration. Certified to IEC 60947-3 standards for industrial electrical devices.

Designed for pollution degree 3 environments typical in industrial settings. Switch operating mechanism type 22 supports dependable operation between poles.

Industrial users can install this ABB fuse switch disconnector in a range of applications including power distribution boards, manufacturing plants, electrical panels, and automation systems to ensure safe power isolation and fuse protection. For more components and variants, explore curated switch disconnectors and fuse switch ranges available at EnvMart.
