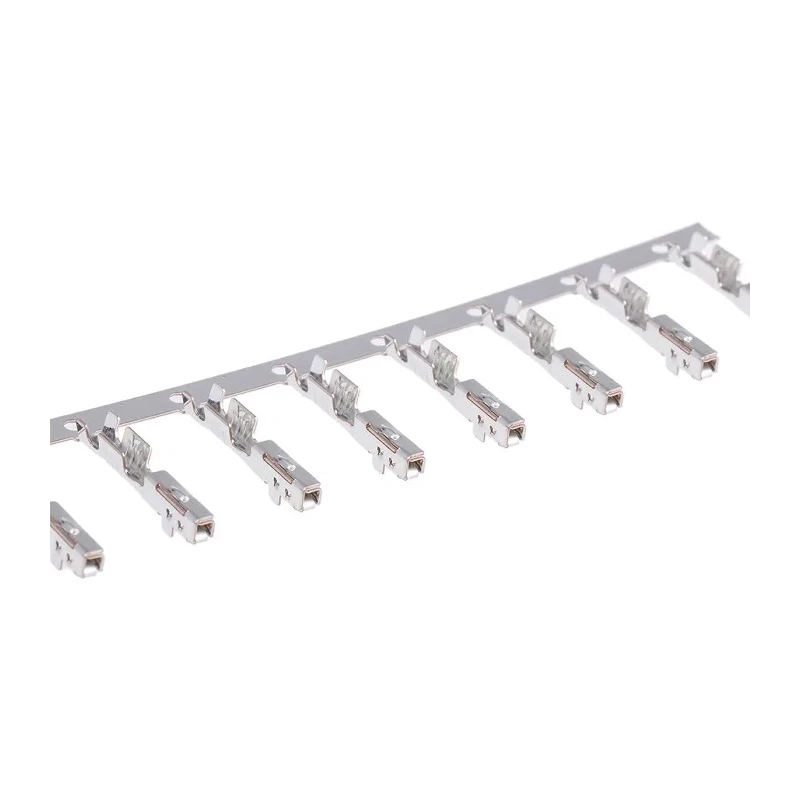

TE Connectivity MULTILOCK 040 III Series Female Crimp Terminal, Tin Plated Copper Alloy, 19 AWG to 16 AWG, Crimp 316838-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Length | 13.4mm |
| Model | 316838-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.85mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 19AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed with copper alloy contact material and tin plating for reliable electrical conductivity.
- Crimp termination type ensuring secure and stable wire connections.
- Compatible with MULTILOCK 0.025/0.04 Hybrid I/O connector housings.
- Operating temperature range from -30°C to 105°C suitable for varied environmental conditions.
- Compact length of 13.4mm facilitating high-density connection layouts.
- Rated for a current of 15A, supporting demanding electrical loads.
- Snap-in fixing ensures secure fitting within connector cavities.
- Ideal for automotive, industrial automation, and electronic applications requiring miniature high-density connectors.
Product Description
TE Connectivity 316838-1 MULTILOCK 040 III Series Female Crimp Terminal is engineered for precise wire connection in electrical and electronic assemblies. This crimp terminal is manufactured from high-quality copper alloy with tin plating to ensure reliable conductivity and corrosion resistance. It operates effectively within a temperature range of -30°C to 105°C, making it suitable for harsh industrial environments.
Designed specifically for use with MULTILOCK 0.025/0.04 Hybrid I/O connector housings, this female Crimp Terminal supports wire sizes ranging from 19 AWG (minimum) to 16 AWG (maximum). With a compact length of 13.4 mm, it facilitates high-density wiring solutions in automotive, industrial automation, and electronic systems.
The contact terminal features a crimp termination type enabling a secure mechanical and electrical connection, ensuring durable performance over time. Rated for a current capacity of 15A, it handles demanding electrical loads with low initial contact resistance of 10 milliohms max and overall resistance of 20 milliohms max after use.
This terminal includes a snap-in fixing mechanism for easy installation into connector cavities, improving assembly efficiency. Although standardized approvals are not specified, its robust construction suits many industrial and manufacturing applications where miniature high-density connectors are essential.
Constructed from tin-plated copper alloy providing reliable electrical contact. Compatible with MULTILOCK connector housings offering flexible application options. Supports a wide temperature range of -30°C to 105°C, ideal for industrial environments.
Current rating of 15A ensures it meets high power requirements. Low contact resistance enhances conductivity and reduces power losses. Snap-in fixing design simplifies installation and maintenance. Compact 13.4mm length allows for tight connector configurations.
Widely used in automotive, industrial automation, and electronics sectors. This product is a reliable choice for high-density wire-to-connector applications demanding durability, electrical integrity, and compact form factor.
Discover more TE Connectivity products and connectors within the Electronics & Electricals category at EnvMart.
