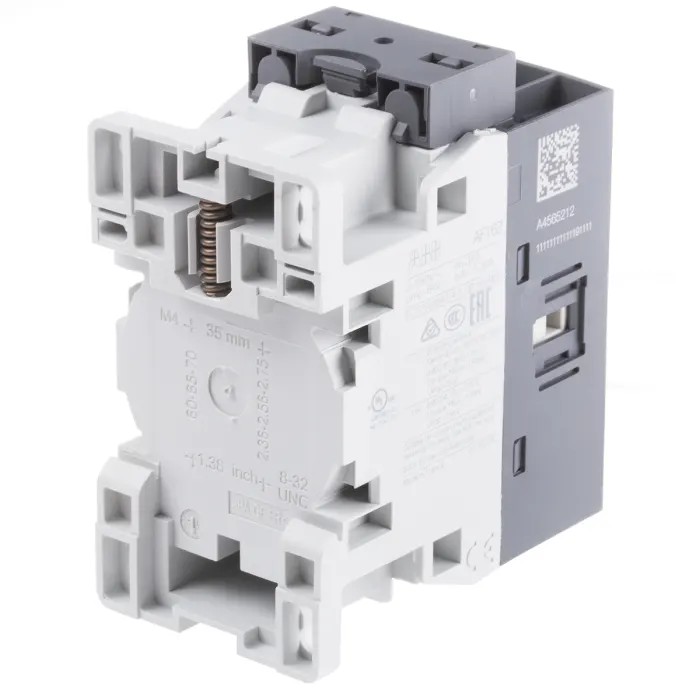

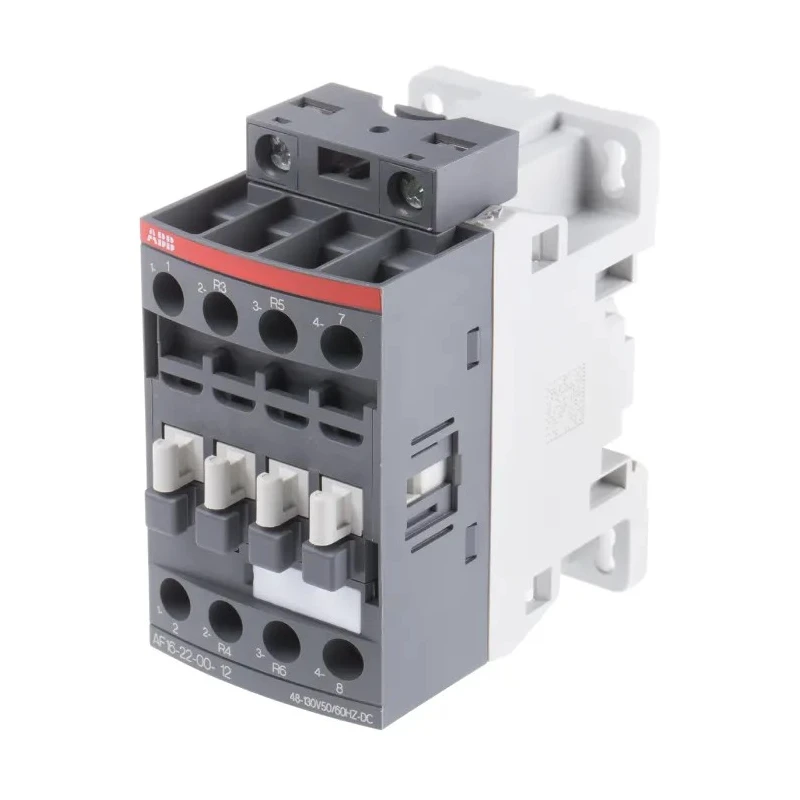

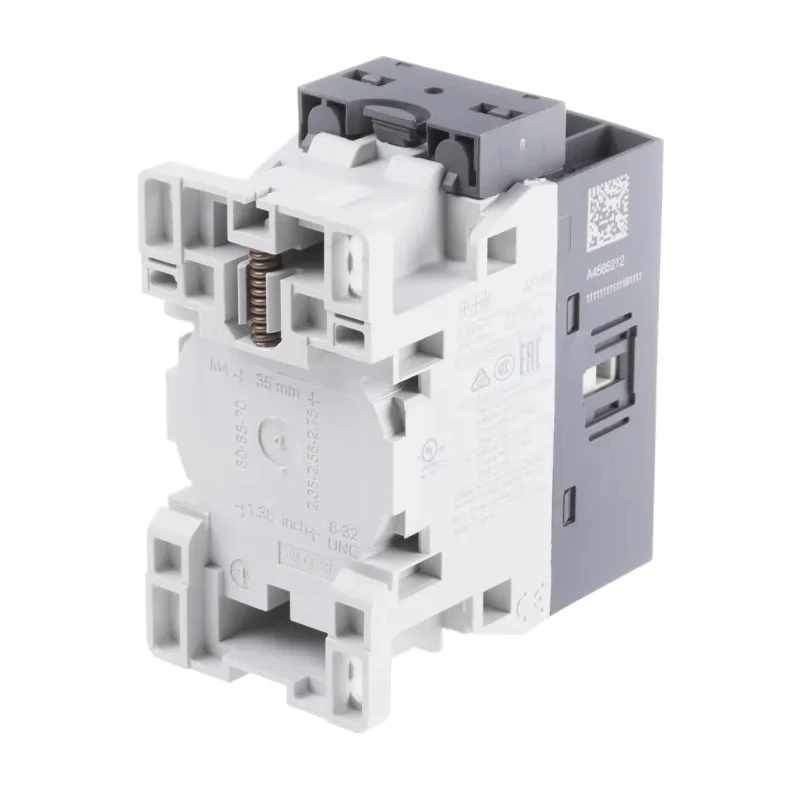

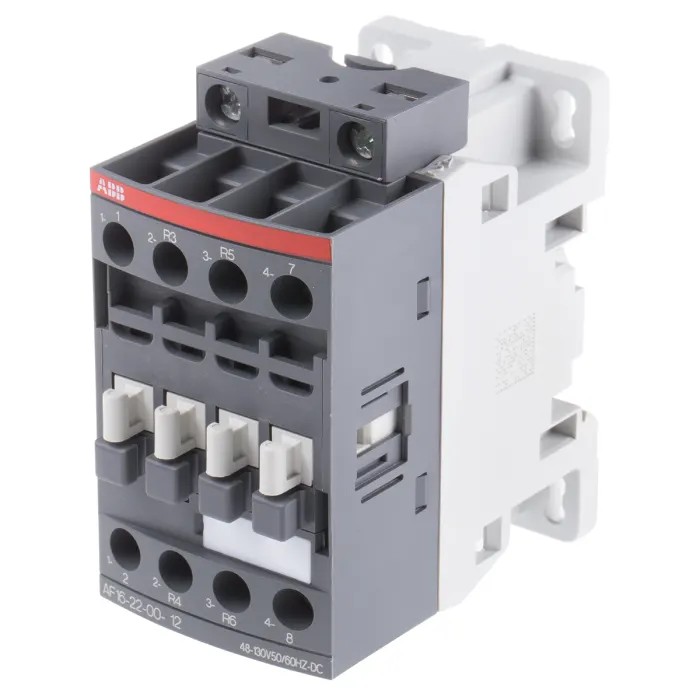

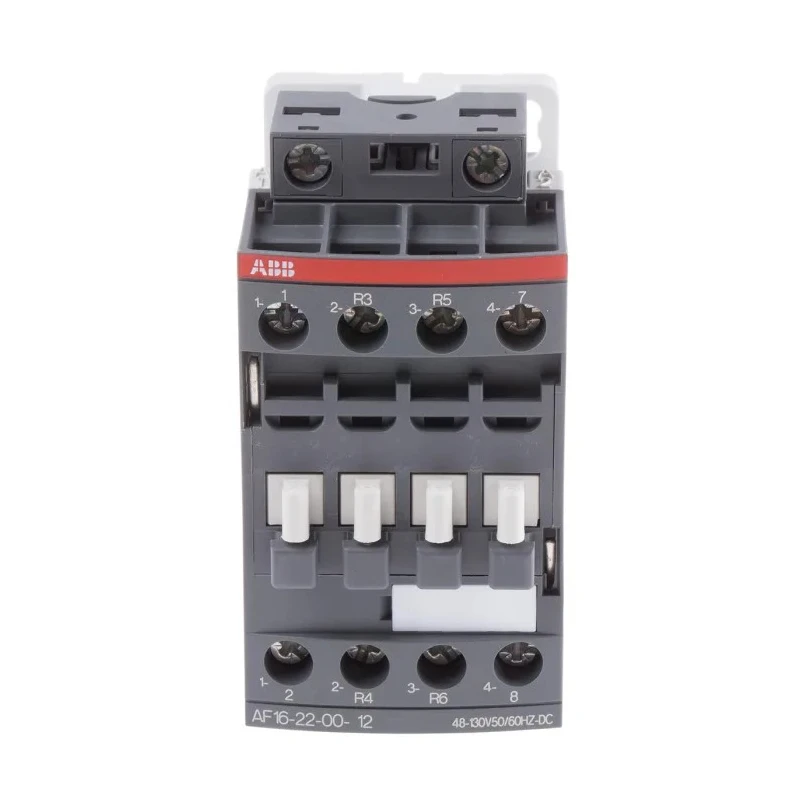

ABB Contactor, 110V AC/DC Coil, 4-Pole, 30A, 7.5 kW Power Rating, 130V Control Voltage, 2 NO/2 NC, 690V AC Contact AF16



Category Contactor Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF16
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF16
Power Rating	7.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	110V ac/dc
Normal State Configuration	2 NO/2 NC
Contact Current	30A
Operational Current Ie	30A
Control Circuit Voltage Uc	130V
Contactor Application	Motor Control
Pole and Throw Configuration	4

Key Features

The contactor supports motor control functions with a contact current of 30A and contact voltage of 690V AC.
It is equipped with a screw terminal type ensuring secure and easy wiring.
The device operates within an ambient temperature range of -40°C to +70°C suitable for various industrial environments.
Its DIN rail mount design allows quick and stable installation in control panels.
The contactor features 2 normally open and 2 normally closed contacts providing flexible control configurations.
Compact dimensions of 80mm length, 45mm width, and 77mm depth optimize panel space.
In compliance with IEC 60947-4-1 standard for safety and reliability in automation usage.
Designed to accommodate control circuit voltage up to 130V for enhanced control versatility.

Product Description

ABB AF16 Contactor, model AF16, features a 110V AC/DC coil and a 4-pole configuration designed for high-efficiency motor control applications. Rated for 30A contact current and 7.5 kW power capacity, it is ideal for use in industrial automation, manufacturing, HVAC motor starters, and assembly line control systems.

This device is engineered for durability and performance, supporting contact voltages up to 690V AC and control voltage up to 130V, making it suitable for complex electrical control environments. The screw terminal type terminals facilitate straightforward installation and maintenance, while the DIN rail mounting ensures secure and compact integration into electrical panels.

With operational temperature range from -40°C to +70°C, the contactor performs reliably in diverse ambient conditions encountered in industrial and commercial facilities. Its 2 normally open (NO) and 2 normally closed (NC) contacts enable versatile switching configurations for different control schemes.

The compact design (80mm x 45mm x 77mm) helps optimize panel space, while compliance with IEC 60947-4-1 standard guarantees safety and industry-standard performance.

This contactor is widely used in motor control, offering effective switching for electrical circuits driving AC motors and other industrial automation equipment. It is suited for integration into control panels requiring dependable energy management and precise control functions.

The contactor supports motor control functions with a contact current of 30A and contact voltage of 690V AC. It is equipped with a screw terminal type ensuring secure and easy wiring. The device operates within an ambient temperature range of -40°C to +70°C suitable for various industrial environments.

Its DIN rail mount design allows quick and stable installation in control panels. The contactor features 2 normally open and 2 normally closed contacts providing flexible control configurations. Compact dimensions of 80mm length, 45mm width, and 77mm depth optimize panel space.

In compliance with IEC 60947-4-1 standard for safety and reliability in automation usage. Designed to accommodate control circuit voltage up to 130V for enhanced control versatility. EnvMart offers this ABB AF16 Contactor as a high-quality solution for efficient motor and industrial control applications within the Automation & Control Gear category.
