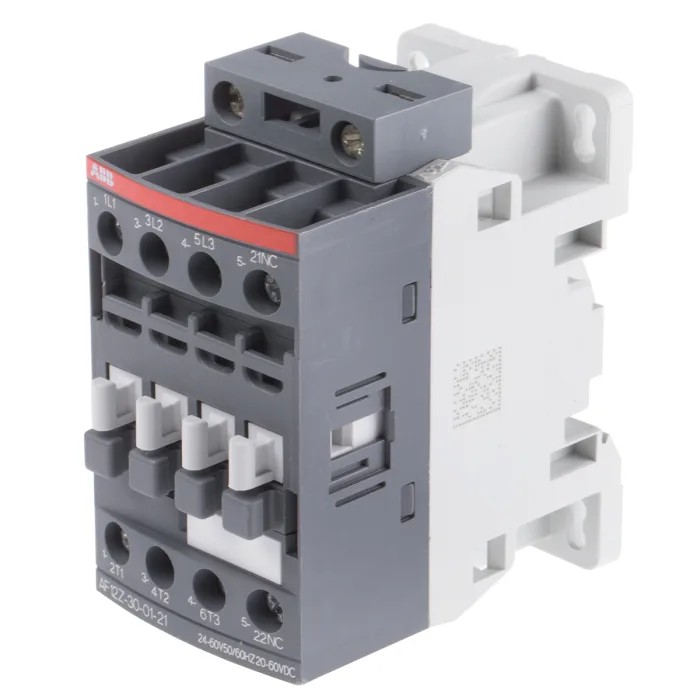

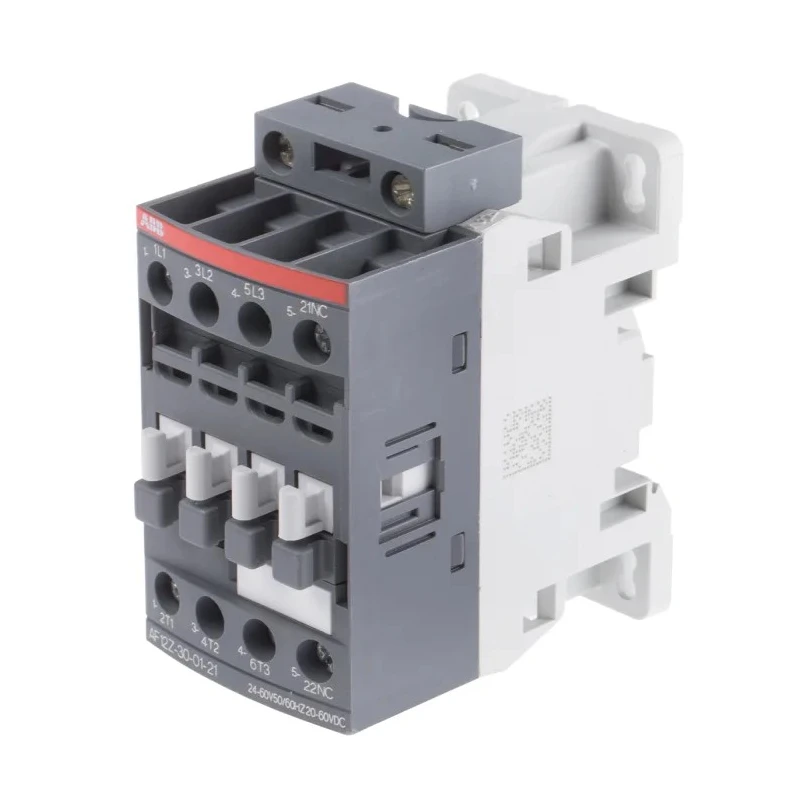

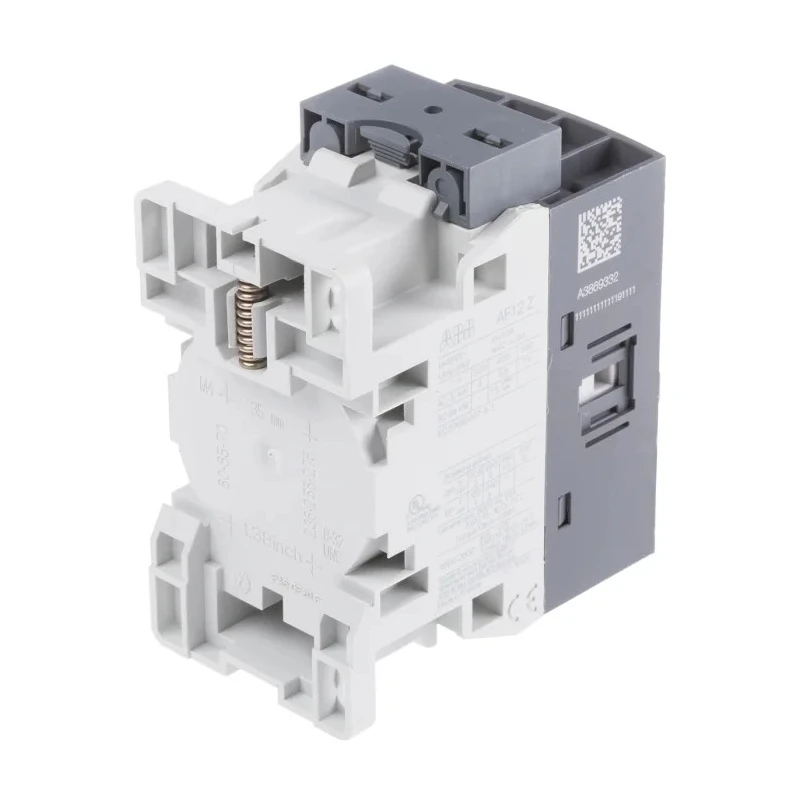

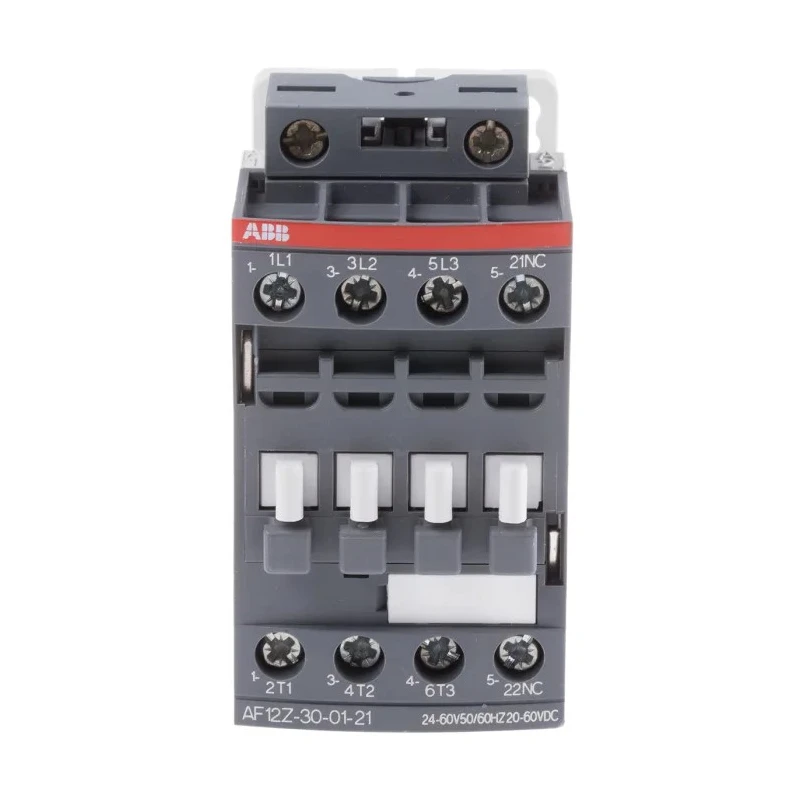

ABB AF12 Contactor, 60 V DC Coil, 3-Pole, 9 A, 5.5 kW, 690 V AC, DIN Rail Mount AF12

Free Delivery in India | Lowest Global Shipping Charges

ABB AF12 Contactor, 60 V DC Coil, 3-Pole, 9 A, 5.5 kW, 690 V AC, DIN Rail Mount AF12



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Control Unit
Length	80mm
Model	AF12
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF12
Power Rating	5.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	60V dc
Normal State Configuration	3 NO
Contact Current	9A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	28A
Control Circuit Voltage Uc	60V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3P

Key Features

Equipped with a robust 3-pole configuration for reliable operation.
Features DIN rail mount type suitable for panel installations.
Operates efficiently with coil voltage of 60 V DC and contact voltage up to 690 V AC.
Integrated auxiliary contact with 1 NC configuration for enhanced control flexibility.
Compact dimensions with 77 mm depth, 45 mm width, and 80 mm length.
Supports high operational current Ie of 28 A for demanding applications.
Certified to IEC 60947-4-1 standards ensuring industrial reliability.
Wide operating temperature range from -40 °C to +70 °C for harsh environments.

Product Description

ABB AF12 contactor (model AF12, MPN 1SBL156001R2101 AF12Z-30-01-21) is an industrial-grade electrical device designed for motor control and power circuit switching applications. Featuring a 60 V DC coil voltage and a 3-pole, 9 A contact current configuration, it is capable of handling motor and power loads up to 5.5 kW with contact voltages up to 690 V AC.

This DIN rail mounted contactor has compact dimensions measuring 77 mm depth, 45 mm width, and 80 mm length, allowing easy integration into electrical panels and automation systems. The screw terminal configuration simplifies wiring and installation. The device incorporates one auxiliary contact with a normally closed (NC) configuration to provide additional control options.

Engineered for demanding industrial conditions, this contactor supports an operational current Ie of 28 A and operates reliably over a wide temperature range from -40 °C to +70 °C. Built-in surge protection enhances operational reliability. The unit complies with IEC 60947-4-1 standards, ensuring compatibility and safety across industrial installations.

The ABB AF12 contactor is ideal for motor control tasks in automation, manufacturing, HVAC systems, and other electrical distribution applications requiring efficient and compact switching solutions. Its capability to handle frequent switching operations and compatibility with industrial-grade control circuits makes it suitable for various electrical control systems.

Robust 3-pole design for versatile control applications. DIN rail mounting simplifies panel integration. High current and voltage ratings meet industrial requirements. Auxiliary contact enhances operational flexibility. Wide temperature tolerance ensures dependable performance in harsh environments.

Compact form factor saves space in control panels. Screw terminals provide secure and easy wiring. Complies with IEC industrial standards for reliability. Suitable for motor control and power circuit switching in automated systems.
