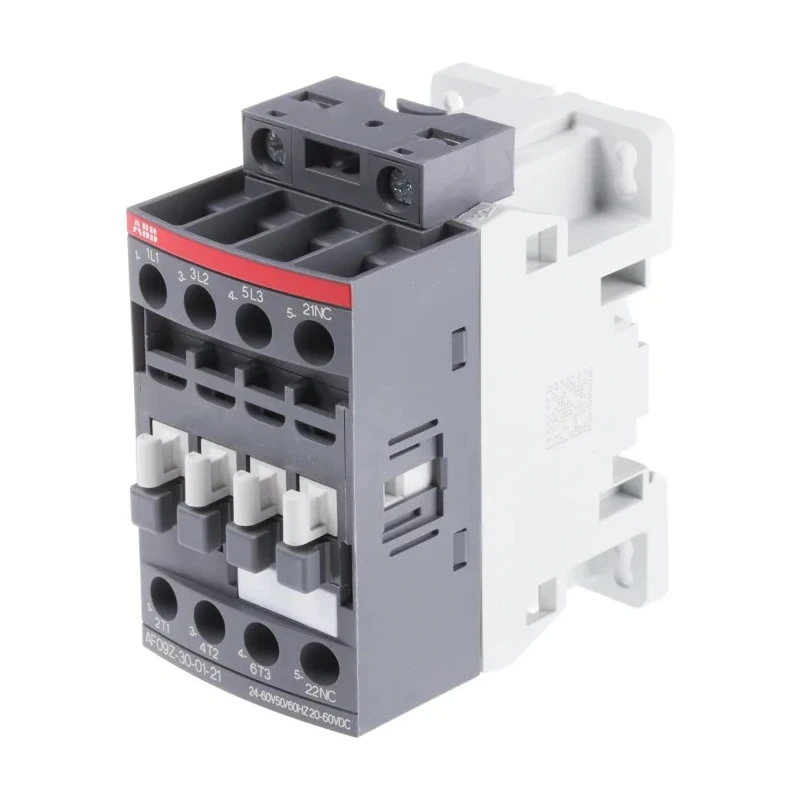

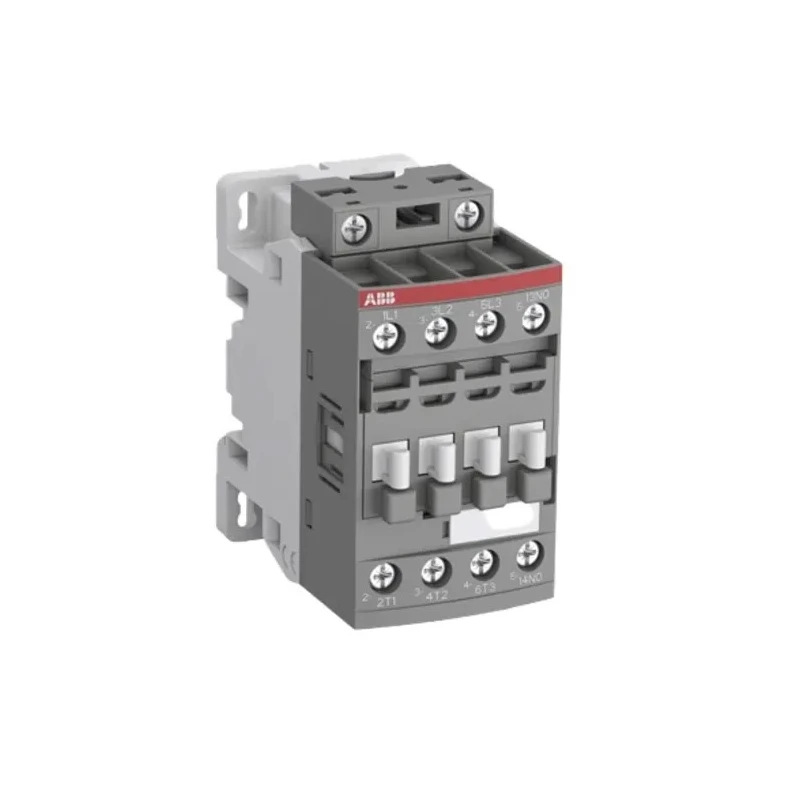

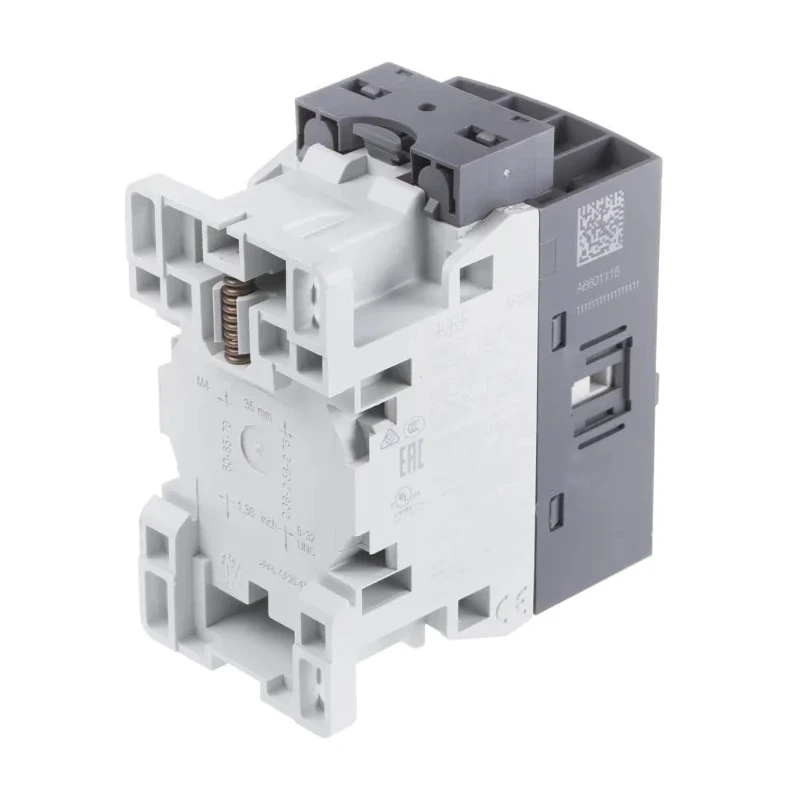

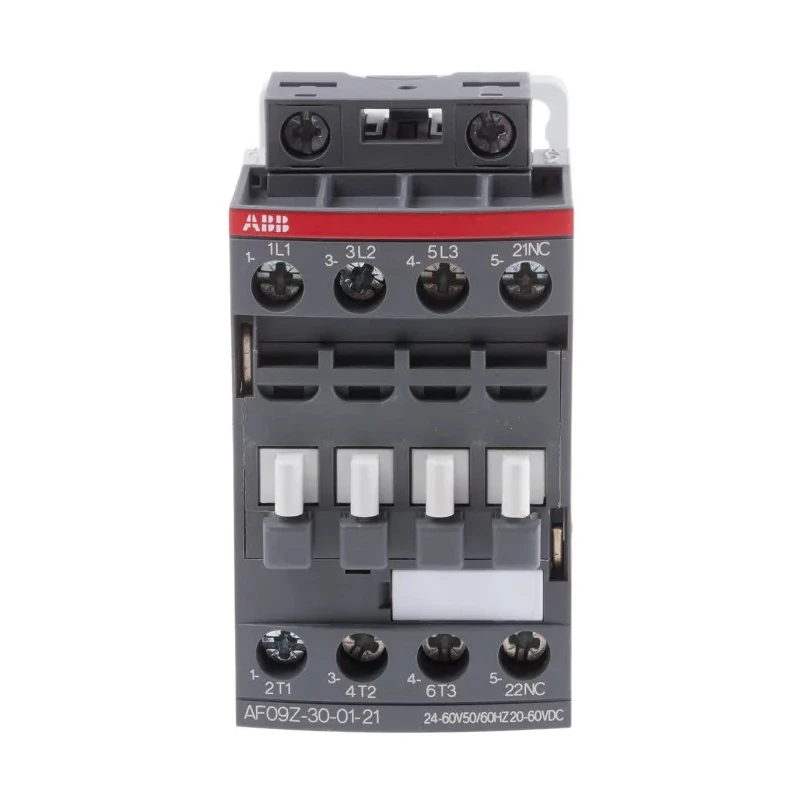

ABB Contactor 3-Pole 7A 4kW 690V AC with 60V DC Coil AF09 1SBL136001R2101 AF09Z-30-01-21

Free Delivery in India | Lowest Global Shipping Charges

ABB Contactor 3-Pole 7A 4kW 690V AC with 60V DC Coil AF09 1SBL136001R2101 AF09Z-30-01-21



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF09
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF09
Power Rating	4kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	60V dc
Normal State Configuration	3 NO
Contact Current	7A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	25A
Control Circuit Voltage Uc	60V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Compact contactor suitable for motor control with a 60V DC coil voltage.
Three poles with a contact voltage rating of 690V AC for reliable circuit switching.
Rated for 7A contact current and a power rating of 4kW for industrial use.
Equipped with 3 normally open contacts (3 NO) and 1 normally closed auxiliary contact (1 NC).
Mount type is DIN Rail with screw terminals for secure and easy installation.
Operational temperature range from -40°C to 70°C for use in demanding environments.
Electrical switching frequency supports up to 1200 cycles per hour at 4kW load.
Conforms to IEC 60947-4-1 standards, ensuring industrial safety and reliability.

Product Description

ABB AF09 contactor model 1SBL136001R2101 AF09Z-30-01-21 is a robust 3-pole contactor designed for motor control applications. It operates with a 60V DC coil voltage and supports contact voltage up to 690V AC. Rated for 7A contact current and 4kW power, it is suitable for effective switching and motor control in various industrial settings.

The compact design with a width of 45mm, length of 80mm, and depth of 77mm allows installation in densely packed control panels. The contactor uses screw terminals mounted on a DIN rail for secure and easy wiring. It features three normally open contacts (3 NO) and one normally closed auxiliary contact (1 NC) to meet complex circuit requirements.

Designed to withstand harsh conditions, this device operates reliably within a temperature range of -40°C to 70°C and meets the IEC 60947-4-1 standard, guaranteeing safety and performance for industrial automation and control systems. Its built-in surge protection reduces the need for auxiliary suppressors, protecting your circuits from overloads.

It is ideal for electric motors, manufacturing plants, commercial lighting systems, and industrial machinery where precise control and frequent switching cycles are necessary. The electrical switching frequency ranges from 600 to 1200 cycles per hour depending on the load, ensuring durability in high-demand environments.

Compact size fits densely packed control systems. DIN rail mount with screw terminals for convenience. Supports motor control with 4kW rating at 7A contact current. Broad temperature range from -40°C to 70°C for demanding settings.

Meets IEC 60947-4-1 safety and performance standards. Built-in surge protection enhances circuit safety. Suitable for industrial, manufacturing, and commercial applications. Electrical switching frequency up to 1200 cycles per hour at rated power.
