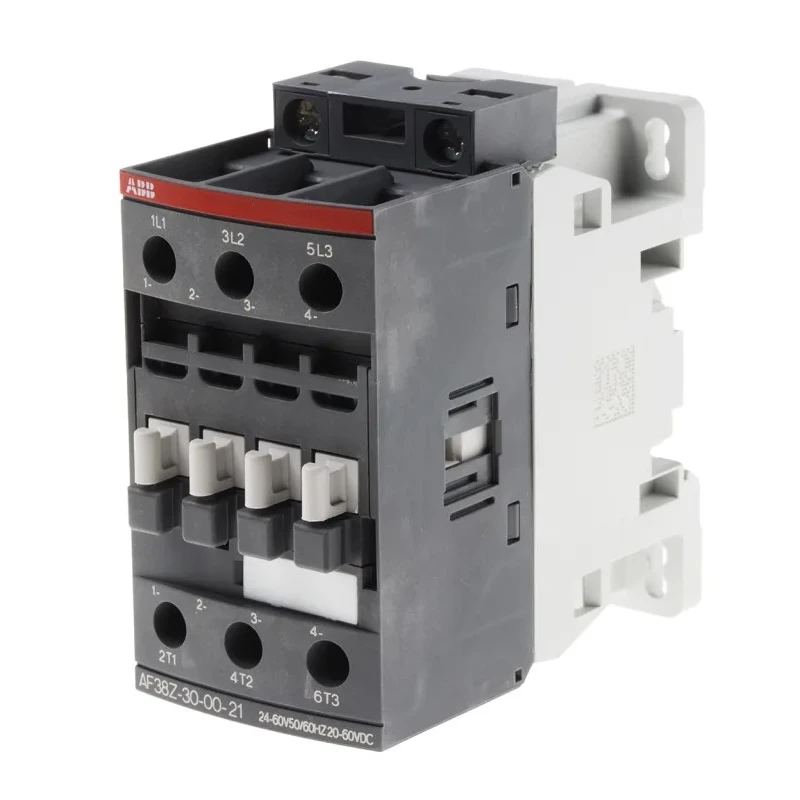

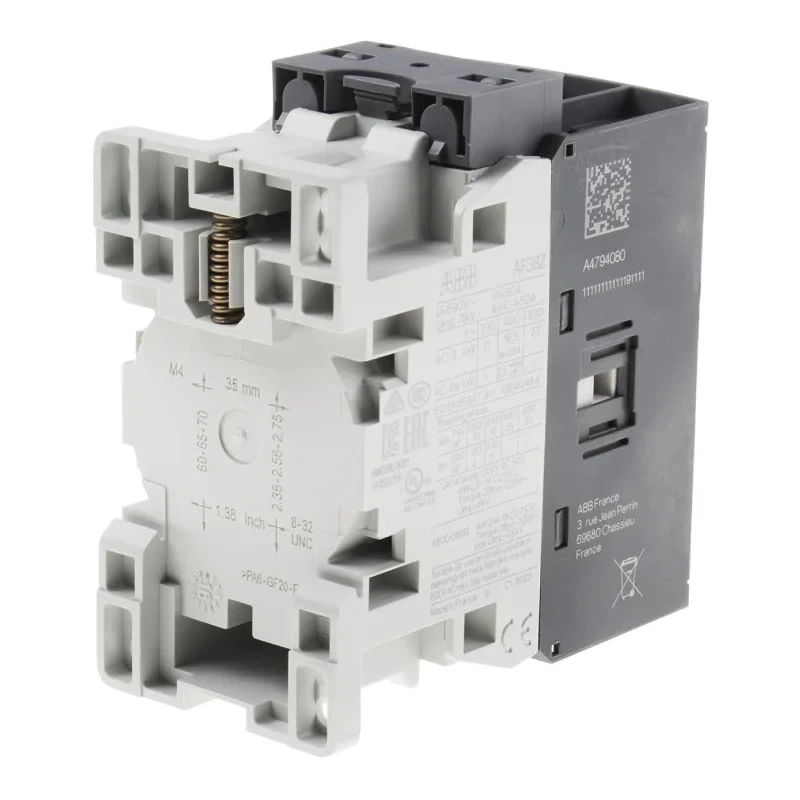

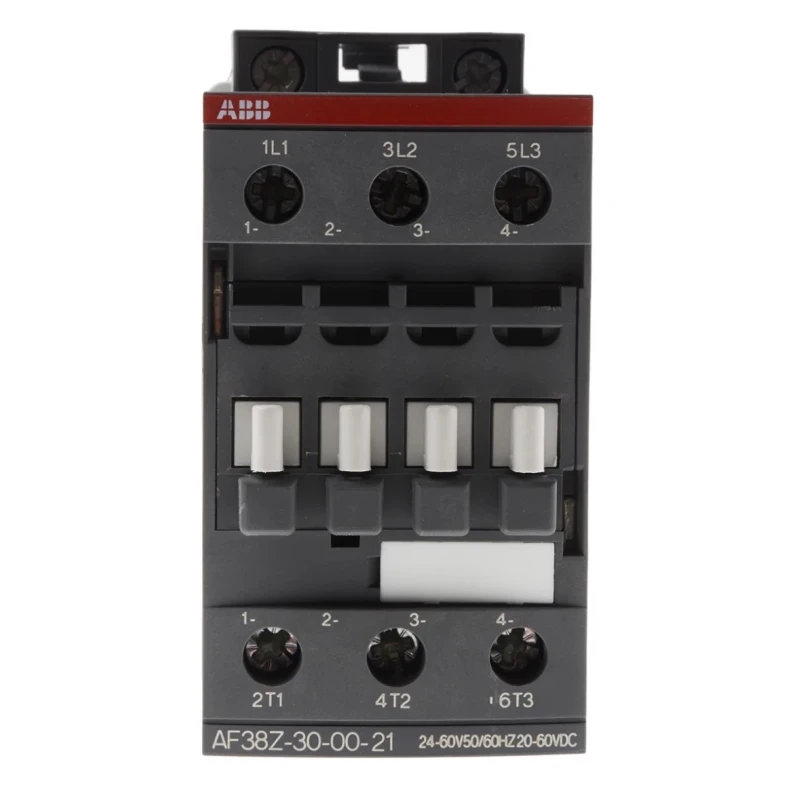

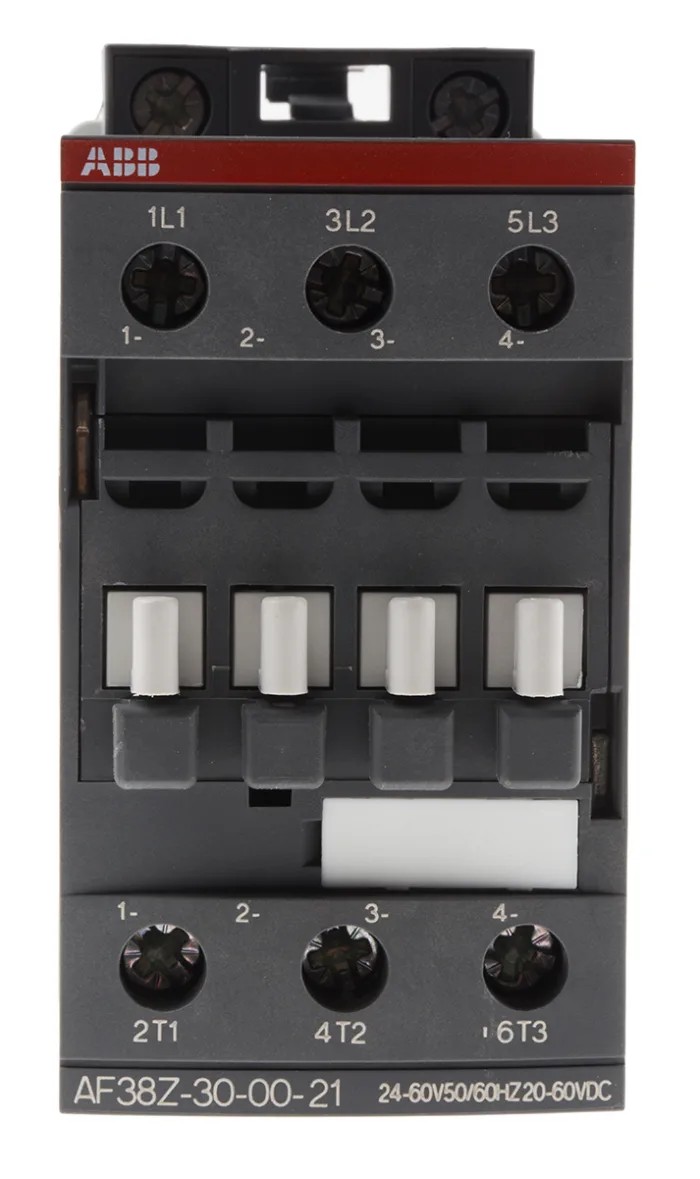

ABB 3-Pole Contactor with 24V AC/DC Coil, 24 A Contact Current, 18.5 kW Power Rating, 60V Control Circuit, 690V AC AF38Z



Category Contactor Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	86mm
Model	AF38Z
Depth	86mm
Width	45mm
Mount Type	DIN Rail
Series	AF38Z
Power Rating	18.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	CSA, UL, NEMA, IEC
Contact Voltage	690V ac
Coil Voltage	24V ac/dc
Normal State Configuration	3 NO
Contact Current	24A
Operational Current Ie	5kA
Control Circuit Voltage Uc	60V
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

The contactor supports a 24V AC/DC coil voltage for versatile control circuit compatibility.
Features a 3-pole configuration suitable for three-phase motor control.
Operates at contact voltage of up to 690V AC ensuring robust electrical performance.
Designed with a control circuit voltage of 60V for enhanced operational control.
Capable of handling operational current up to 5kA and power rating of 18.5 kW for efficient motor management.
Mounts easily on DIN rail systems for convenient installation in control panels.
Suitable for industrial automation, HVAC systems, compressors, and pumps requiring dependable switching.
Functions effectively within a temperature range of -40°C to 70°C for reliable operation in diverse environments.

Product Description

ABB AF38Z 3-Pole Contactor with 24V AC/DC Coil Voltage and 18.5 kW Power Rating is engineered for motor control applications in industrial and commercial automation systems.

This contactor features a robust 3-pole configuration supporting a contact current rating of 24A and contact voltage of 690V AC, suitable for controlling three-phase motors effectively.

The device is designed for installation on DIN rail mounting systems, facilitating easy integration within electrical control panels. Its coil voltage of 24V AC/DC allows flexible control circuit operation with a control circuit voltage of 60V, optimizing motor control conditions.

Built to withstand operational temperatures ranging from -40°C to +70°C, this contactor ensures reliable performance in challenging industrial environments. Applications include motor control in HVAC systems, automation setups, and managing compressors and pumps across varied industries.

The contactor supports a wide control voltage range for versatile applications. Optimized for motors up to 18.5 kW for effective functionality. Built with surge protection features for durability in unstable electrical networks.

Minimizes panel energy consumption during operation with an efficient design. Suitable for managing high operational currents up to 5kA safely. Designed according to CSA, UL, NEMA, and IEC standards for compliance and safety.

Ideal choice for industrial automation requiring dependable motor control switches. For detailed motor control solutions, explore additional ABB contactors with varying coil voltages and current ratings. Discover the full range of high-quality Contactors and control gear for automation needs at EnvMart.
