ABB Contactor, 3-Pole, 9 A, 5.5 kW Power Rating, 500V dc Coil, DIN Rail Mount AF12



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF12
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF12
Power Rating	5.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	500V dc
Normal State Configuration	3 NO
Contact Current	9A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	28A
Control Circuit Voltage Uc	500V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Supports coil voltage of 500V dc suitable for diverse industrial control circuits.
3 poles configured with 3 normally open contacts for effective switching.
Power rating of 5.5 kW ensures efficient motor control up to this capacity.
Designed for DIN rail mounting, enabling easy installation and space saving.
Equipped with a screw terminal type for secure electrical connections.
Includes one auxiliary contact with a NO configuration for additional control functions.
Operates reliably between -40°C and +70°C for varied environments.
Complies with IEC 60947-4-1 standards ensuring industry safety and quality.

Product Description

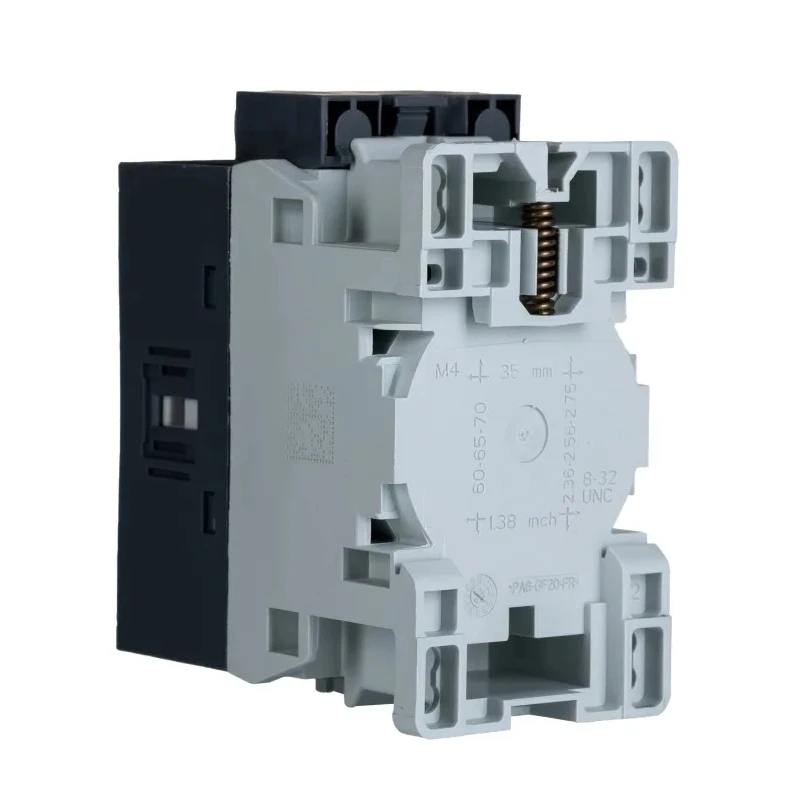

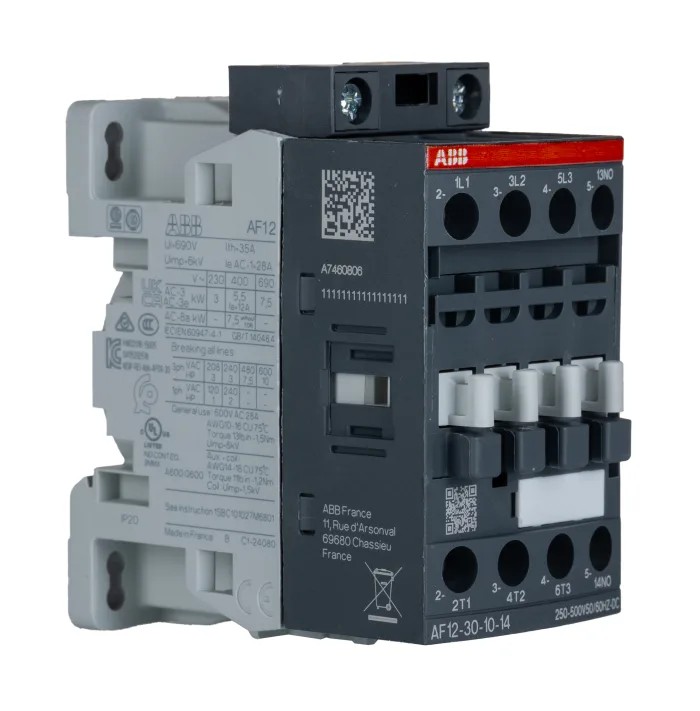

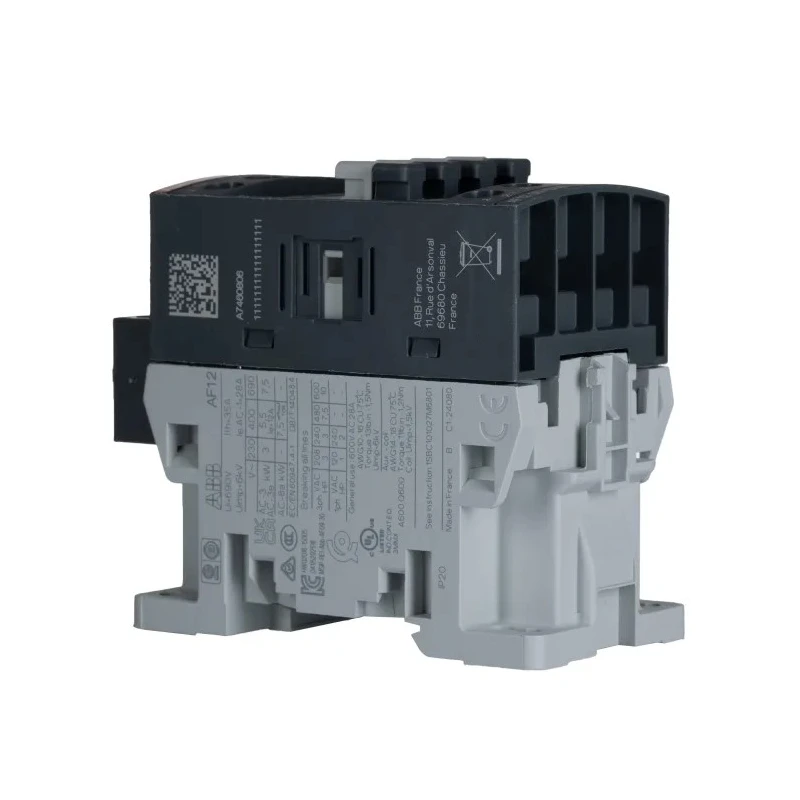

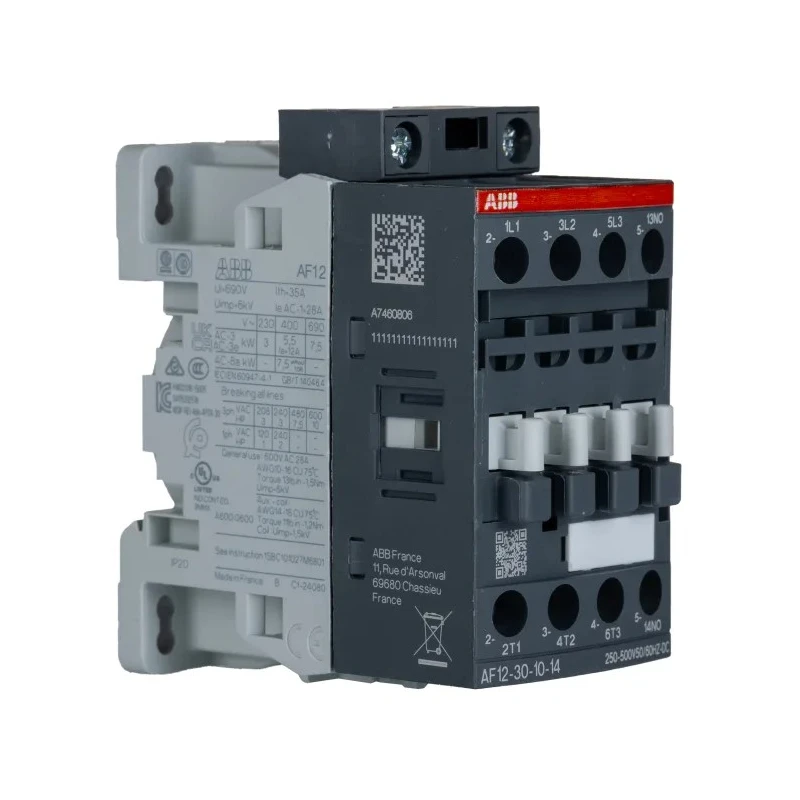

ABB AF12 contactor, model 1SBL157001R1410 AF12-30-10-14, is a professional motor control device featuring a coil voltage of 500V dc and a robust 3-pole, 9A contact configuration.

Its power rating of 5.5 kW and compatibility with 690V ac contact voltage make it ideal for industrial automation and control applications. The contactor is designed with DIN rail mounting enabling efficient installation and space saving in electrical panels.

With a screw-type terminal, it ensures secure and reliable connections in demanding environments. It includes a single auxiliary contact configured as normally open, enhancing functionality without requiring additional components.

Its operational temperature range from -40°C to 70°C means it performs reliably under harsh conditions common in manufacturing and industrial settings. This contactor meets IEC 60947-4-1 standards, affirming its quality and safety compliance.

Supports coil voltage of 500V dc for versatile motor control. 3 poles with normally open contacts ensure efficient switching. Rated for 9A current and 5.5 kW power capacity. Mount type DIN rail for easy and secure installation.

One auxiliary contact with NO configuration for extended control. Screw terminal type provides durable electrical connection. Operating temperature range -40°C to +70°C. Meets IEC 60947-4-1 quality and safety standards. Compact physical dimensions: Length 80mm, Depth 77mm, Width 45mm.

This ABB AF12 contactor is well-suited for industrial, manufacturing, automation, and motor control applications where reliable switching and durability are critical. It enables efficient management of three-phase motors and other power circuits with enhanced safety features.

Choose ABB AF12 Contactors for high-performance motor control solutions that meet strict electrical industry standards and offer versatile applications in diverse automated systems.
