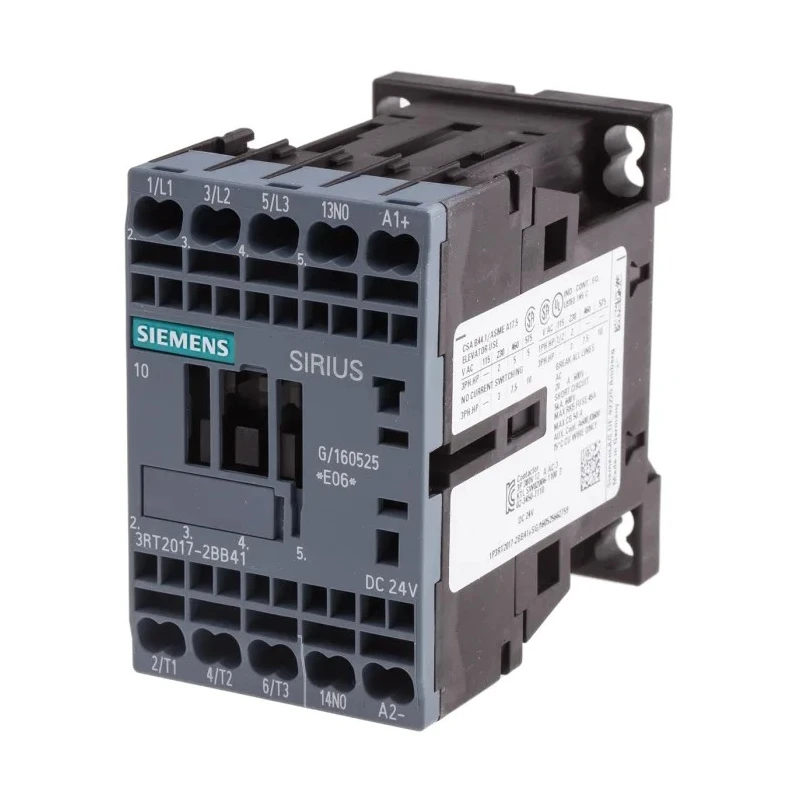

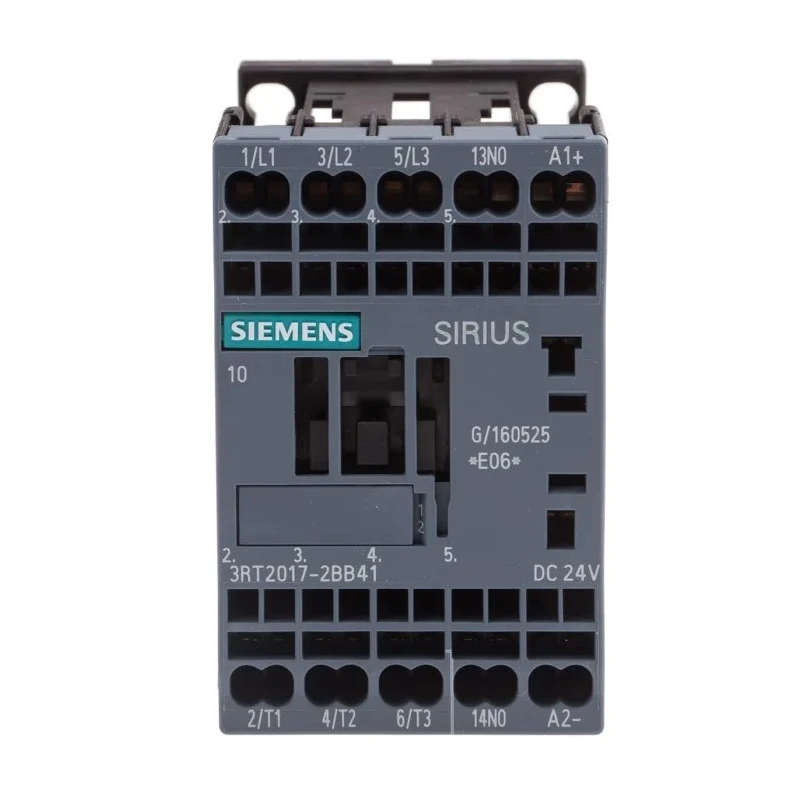

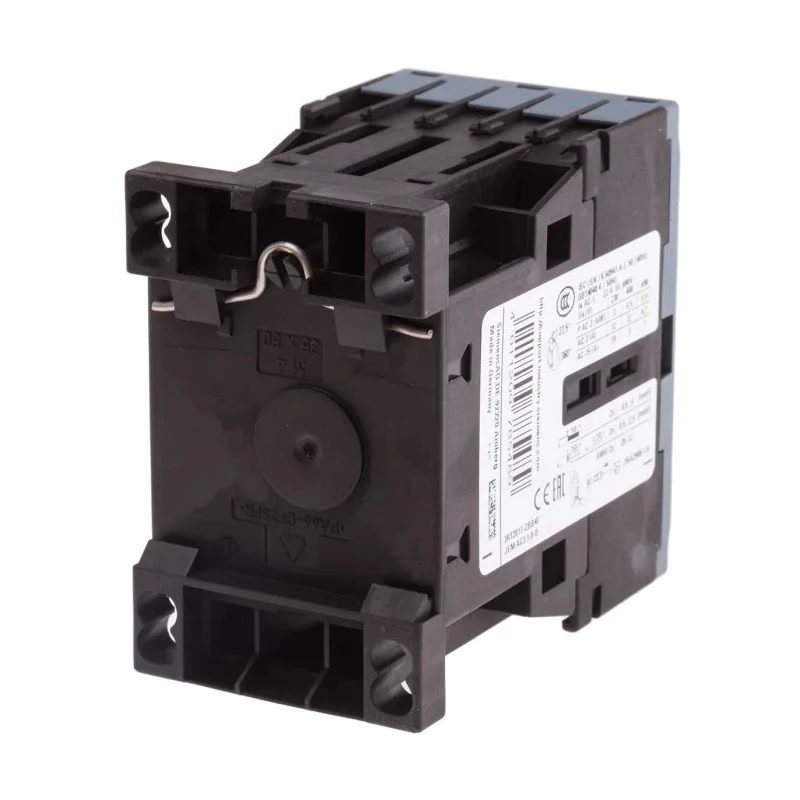

Siemens 3RT2 Motor Control Contactor, 24V dc Coil, 3-Pole, 12 A, 5.5 kW, 400V ac, 3 NO, DIN Rail Mount 3RT2017-2BB41
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Motor Control |
| Length | 70mm |
| Model | 3RT2017-2BB41 |
| Depth | 73mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Cage Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EAC |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 22A |
| Control Circuit Voltage Uc | 24V dc |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with a 24V dc coil and designed for DIN rail mounting.
- Features 3 normally open (NO) main contacts and 1 normally closed (NC) auxiliary contact.
- Supports a contact current rating of 12 amperes and operational current of 22 amperes.
- Compact dimensions of 70 mm length, 45 mm width, and 73 mm depth for dense control panel installations.
- Operates reliably within a temperature range of -25°C to 60°C suitable for harsh industrial environments.
- Cage clamp terminals ensure secure and easy wiring connections.
- IP20 front panel protection prevents accidental contact and ingress of large objects.
- Complies with EAC standards and is manufactured in Germany.
Product Description
Siemens 3RT2017-2BB41 is a durable and compact 3-pole motor control contactor featuring a 24V dc coil and rated for 12 A contact current and 5.5 kW power at 400V ac. This contactor is designed for efficient switching of electrical loads such as motors in industrial automation and HVAC systems.
The device is equipped with a built-in auxiliary contact (1 NC) that allows for remote signalling of main contact status, saving space and installation time. Cage clamp terminal technology facilitates secure wiring and maintenance.
With its compact size of 70 mm length, 45 mm width, and 73 mm depth, the contactor suits high-density control cabinets and offers reliable service over a wide operating temperature range from -25°C to 60°C, making it suitable for varied industrial environments including manufacturing and processing plants.
The IP20-rated front panel offers protection against accidental contact and intrusion of larger foreign objects, ensuring operator safety. Certified under EAC standards and manufactured in Germany, this Siemens 3RT2 contactor endorses quality and compliance with global industrial standards.
The 3 normally open main contacts provide robust motor control performance, while the auxiliary contact supports additional control circuit functionalities. The device is especially suitable for motor control applications in production lines, chillers, and compressors.
Compact 3-pole contactor with 24V dc coil and 3 NO main contacts. 12 A contact current and 5.5 kW power rating at 400V ac. One auxiliary normally closed contact for signaling and diagnostic functions. Wide operating temperature range from -25°C to 60°C.
Cage clamp terminal type for secure electrical connection. DIN rail mounting facilitates easy installation. IP20 front panel rating ensures operator protection. Manufactured in Germany under strict quality controls. Compliant with EAC certification standards.
Environmentally conscious low carbon manufacturing.
This Siemens 3RT2017-2BB41 contactor is a reliable choice for controlling motors and other loads in industrial automation, water treatment, food processing, and HVAC applications. Explore a wide range of industrial Contactors and control gear on EnvMart for tailored automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 5.5 kW at 400V ac.
The contact current rating is 12 A, with an operational current of 22 A.
It is equipped with a 24V dc coil for operation.
This unit features a 3-pole configuration.
The dimensions are 70 mm in length, 45 mm in width, and 73 mm in depth.
It operates reliably within a temperature range of -25°C to 60°C.
It utilizes cage clamp terminals for secure and easy wiring connections.
Yes, it includes 1 normally closed (NC) auxiliary contact for signaling purposes.
This model is designed for DIN rail mounting, facilitating easy installation.
It complies with EAC standards, ensuring quality and safety in industrial applications.
This contactor is manufactured in Germany, adhering to strict quality controls.
It is suitable for motor control applications in industrial automation, water treatment, food processing, and HVAC systems.
