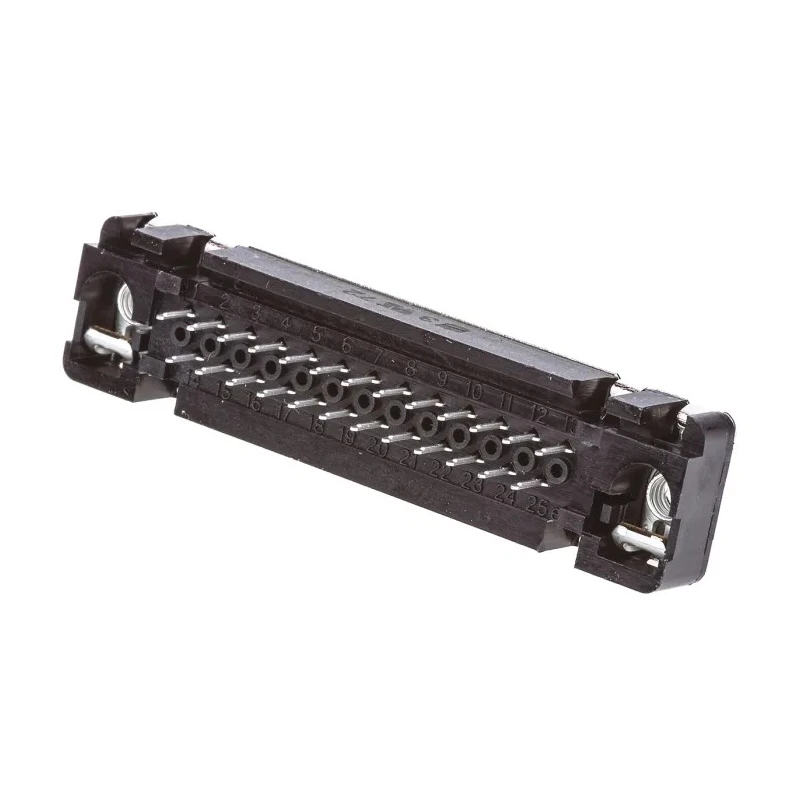

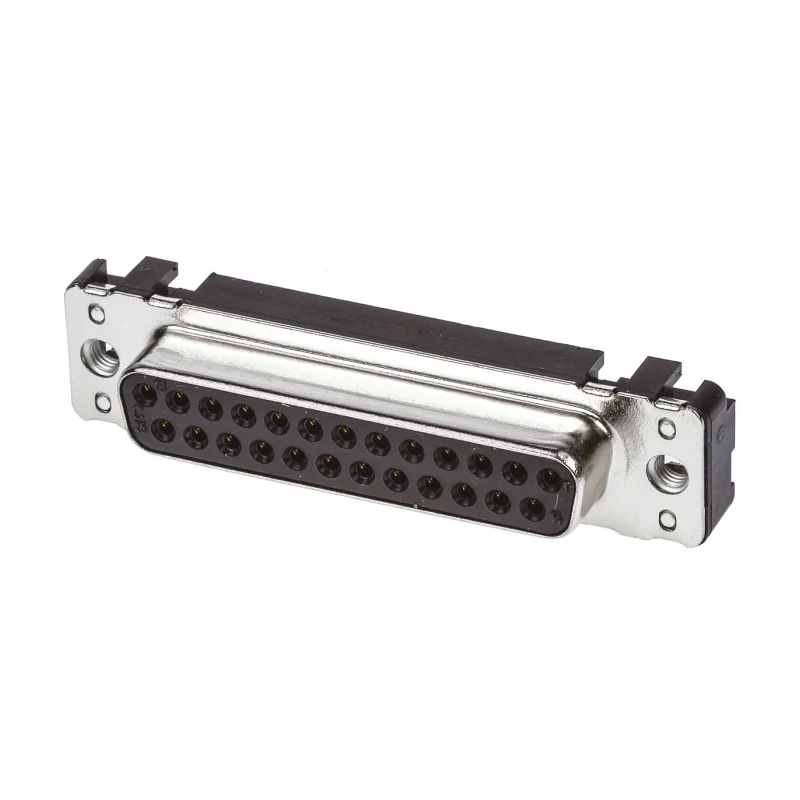

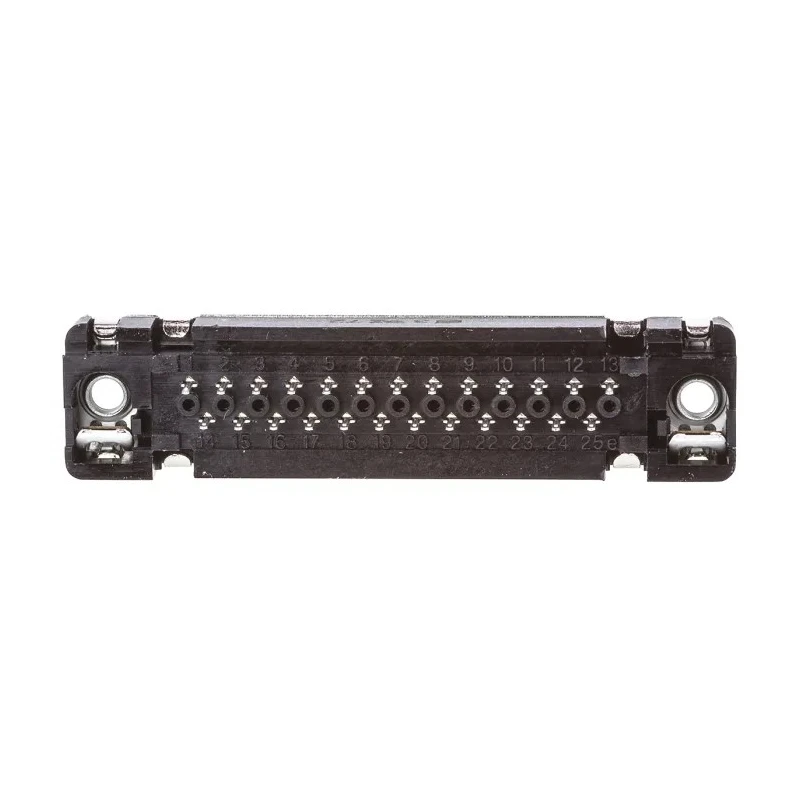

HARTING D-Sub Standard 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female 09663117501

HARTING 09663117501 D-Sub Standard 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female offers robust and reliable electrical connectivity solutions for industrial and electronic applications.

Designed for PCB mounting, this connector features 25 female contacts with precise 2.76 mm pitch to ensure accurate soldered connections. The metal housing and copper alloy contacts enhance durability and corrosion resistance, making it suitable for harsh operating environments. With a current rating of 6A and voltage capability of 1 kV, it supports demanding power and signal transmission needs.

This connector operates efficiently across a wide temperature range from -55°C to 125°C, allowing its use in industrial, manufacturing, telecommunications, and aerospace sectors. The through-hole mount type with M3 threaded inserts guarantees secure mechanical fastening on printed circuit boards.

The product is compliant with industry standards MIL-C-24308, DIN 41652, and CECC 75301-802, ensuring quality and interoperability in multiple system designs.

Its solder termination style is compatible with standard PCB fabrication techniques, suitable for both automated and manual assembly lines. This D-Sub Connector supports high production efficiency by providing reliable and repeatable connections in electronic assemblies.

This connector features 25 female contacts with a 2.76 mm pitch for precise alignment. The mount type is through hole with M3 threaded insert for secure installation. It supports a maximum current rating of 6 amps ensuring robust electrical performance.

The housing is made of durable metal with copper alloy contact material for longevity. Operable in temperatures ranging from -55°C to 125°C, suitable for demanding environments. The connector has a straight orientation, facilitating easy PCB mounting.

Termination is solder style, compatible with standard PCB assembly processes. Voltage rating is 1 kV, providing insulation strength for various applications. It complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards for quality assurance.

Ideal for use in electronic device manufacturing, industrial control equipment, telecommunication systems, and other precision electronic assemblies, this connector provides a dependable interface for signal and power transmission.
