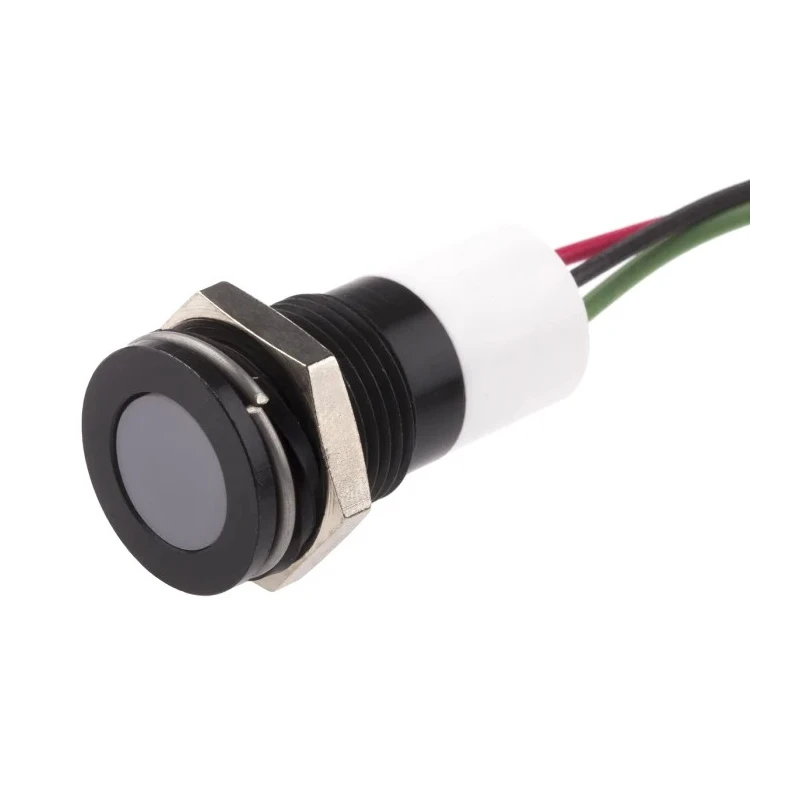

RS PRO Panel Mount Indicator 24V dc 20mA Lead Wire Termination IP67 Flush Bezel 703-9036

RS PRO 703-9036 is a high-quality Panel Mount Indicator designed for industrial and commercial electrical applications. Rated at 24V dc and 20mA current, this unit ensures efficient and reliable visual signaling through coloured LED indicators. The device features a lead wire termination for easy wiring and is protected with an IP67 rated enclosure, making it dust-tight and resistant to water ingress, suitable for use in harsh or outdoor environments.

The indicator has a flush bezel style that offers a compact and neat appearance on panels. It measures 30.6mm in length and requires a 14 mm mounting hole, compatible with standard panel mounting requirements.

Its 10 mm coloured diffused epoxy lens delivers high visibility with bright LED illumination. It offers bi-colour LED with red and green for clear signal differentiation, and tri-colour variants that blend colours for enhanced indication. The LEDs have low power consumption, long life, and operate at low temperature compared to traditional lighting solutions.

Each indicator is supplied with a fixing nut, washer, and gasket to ensure easy and secure mounting. The IP67 rating certifies that the device performs well when exposed to dust and can be submerged in water up to 1 meter for 30 minutes without damage.

This panel mount indicator is ideal for instrumentation, control panels, machinery, electrical equipment, and instrumentation systems in industrial, manufacturing, laboratory, and commercial installations.

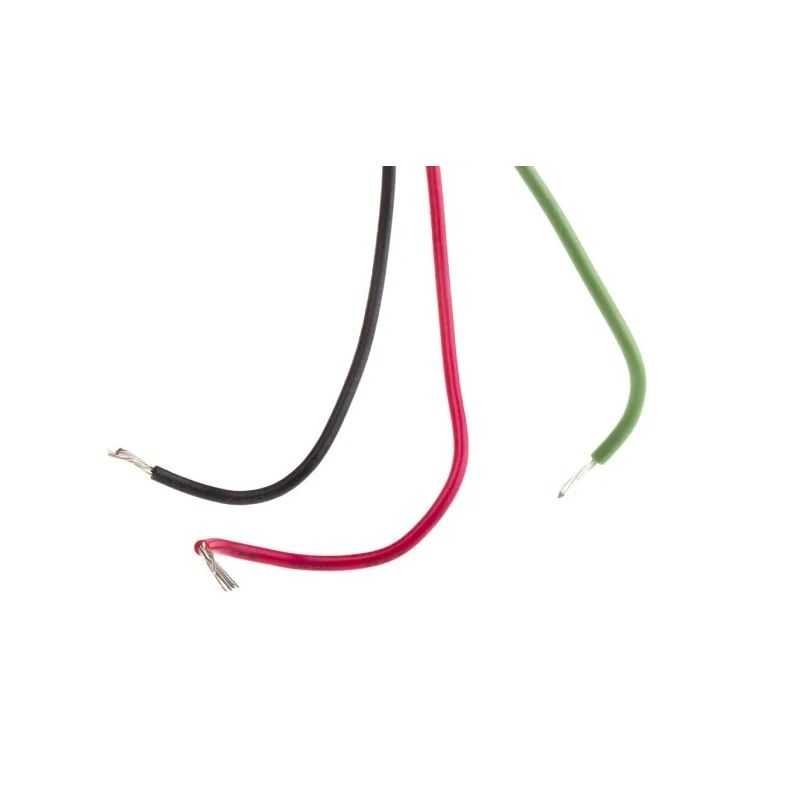

This indicator features a 24V dc voltage rating and 20mA current for efficient operation. Lead wire termination ensures secure electrical connections. IP67 rating guarantees dust-tight sealing and water resistance for harsh environments.

The 14 mm mounting hole size and 30.6 mm length allow for easy panel installation. The flush bezel style provides a sleek, low-profile finish on installations. Designed with a 10 mm coloured diffused epoxy lens for visible brightness and clarity.

Tri-colour and bi-colour LED options provide versatile signal indication. Includes fixing nut, washer, and gasket for quick and stable mounting. Browse EnvMart for more Panel Mount Indicators suitable for all your electrical and electronic system needs.
