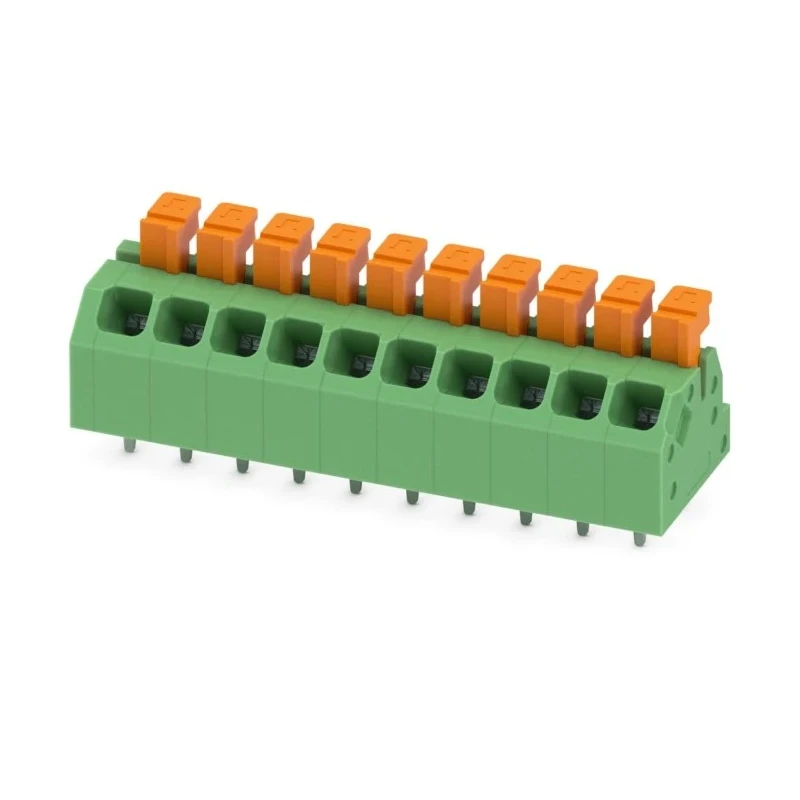

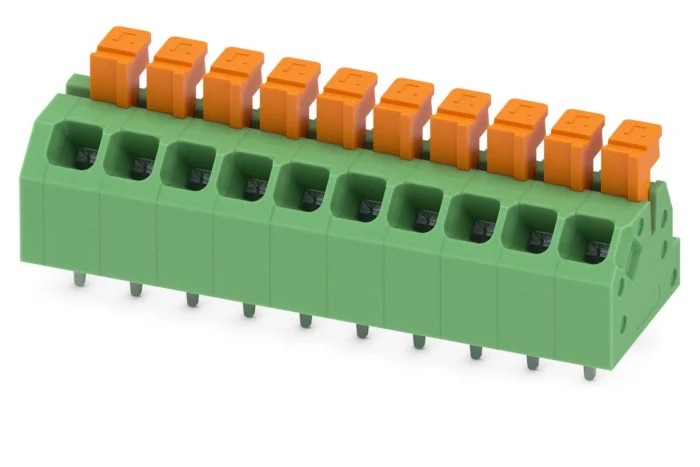

Phoenix Contact Angled PCB Terminal Block, 10 Contacts, 3.5 mm Pitch, 2 Row, 13.5 A, 160 V 1864367

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Angled PCB Terminal Block, 10 Contacts, 3.5 mm Pitch, 2 Row, 13.5 A, 160 V 1864367

Name: Phoenix Contact Angled PCB Terminal Block, 10 Contacts, 3.5 mm Pitch, 2 Row, 13.5 A, 160 V 1864367
Brand: PHOENIX CONTACT
SKU: 214635
Price: 4.63 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	160V
Brand	Phoenix Contact
Orientation	Angled
Current	13.5A
Model	1864367
Housing Material	Polyamide
Series	SPTAF 1/10-3.5-LL
Number of Rows	2
Pitch	3.5mm
Standards/Approvals	cULus Recognised, EU RoHS, UL Recognised
Number of Contacts	10
PCB Terminal block, nominal current	13.5 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 10, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green

Key Features

Constructed from durable polyamide housing for reliable operation.
Push-in spring connection allows tool-free and time-saving wiring.
Wave soldering compatible mounting ensures secure PCB attachment.
Contacts are arranged at a 45-degree angle to facilitate compact design.
Equipped with finger-operated, fixable release button for easy wire release.
Integrated test option enables quick and convenient circuit testing.
Compact green component suitable for applications with limited space.
Meets cULus and UL Recognised standards and is EU RoHS compliant.

Product Description

Phoenix Contact 1864367 is an angled PCB terminal block engineered for electronic and electrical power connector applications. This product offers 10 contacts arranged in 2 rows with a 3.5 mm pitch, supporting a nominal current of 13.5 A and voltage rating of 160 V. The housing is made of high-quality polyamide, ensuring durability and long-term performance.

The terminal block utilizes a time-saving push-in spring connection method, eliminating the need for tools and providing stable contact pressure to maintain reliable electrical connections. It mounts through wave soldering for secure attachment to printed circuit boards, with conductor and PCB connection direction angled at 45 degrees to optimize PCB layout and save space.

Designed in a compact green form factor, the unit features a finger-operated and fixable release button for simple wire insertion and removal. Additionally, it incorporates an integrated test option that allows fast and convenient verification of electrical circuits without disassembly.

This terminal block meets rigorous safety and environmental standards, being cULus Recognised and EU RoHS compliant, as well as UL Recognised, making it suitable for industrial, electronic manufacturing, power distribution, automation, and control system applications.

Durable polyamide housing material provides reliable insulation and mechanical strength. Push-in spring connection ensures secure, tool-free wiring and reduces installation time. Wave soldering compatible for robust PCB mounting in manufacturing processes.

Angled conductor/PCB connection design facilitates optimized circuit layouts. Finger-operated release button enhances ease of maintenance and wire replacement. Integrated test option supports efficient electrical testing without component removal.

Compliance with cULus, UL Recognised, and EU RoHS standards guarantees safety and environmental regulations. Compact size suitable for space-restricted PCB assemblies in industrial electronics.

This Phoenix Contact angled PCB terminal block is an essential component for electronics engineers and manufacturers requiring dependable, space-saving terminal solutions with simplified installation and testing capabilities. Explore more products in the PCB Terminal Block category on EnvMart for comprehensive industrial and electronic connector options.
