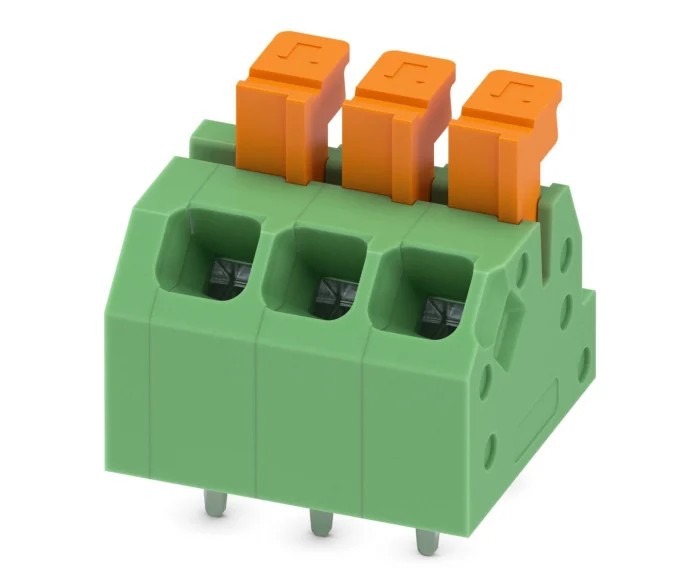

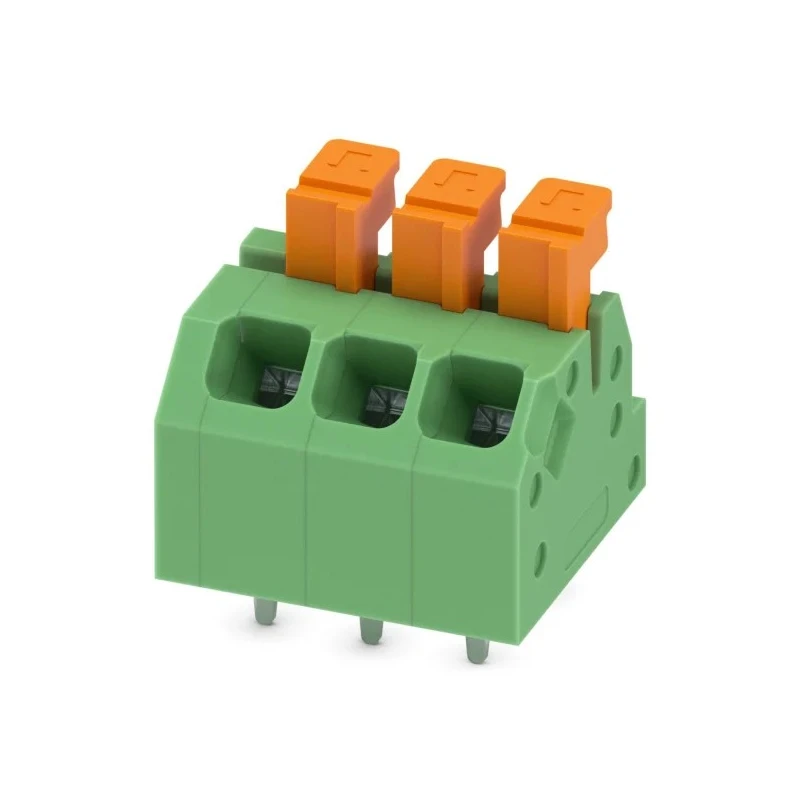

Phoenix Contact Angled PCB Terminal Block 3 Contact 3.5 mm Pitch 2 Row 160V 13.5A 1864299

Phoenix Contact 1864299 angled PCB terminal block is engineered for high reliability in electrical and electronic connector applications. With 3 contacts and a 3.5 mm pitch arranged in 2 rows, this terminal block supports nominal currents up to 13.5 A and nominal voltages of 160 V. Constructed with robust polyamide housing, it offers excellent durability suitable for industrial, manufacturing, electronic equipment assembly, and communications system installations.

The push-in spring connection mechanism enables fast and secure wiring without requiring tools, significantly reducing installation time. The angled orientation provides a 45-degree conductor to PCB connection, optimizing PCB layout and cable routing in dense assemblies. Mounting is compatible with wave soldering processes, enhancing production efficiency.

Designed with user convenience in mind, the finger-operated and fixable release button allows easy disconnection of wires during maintenance. Its compact size makes it suitable for applications with limited space. Additionally, an integrated test option is provided to facilitate rapid electrical verification during assembly and diagnostics.

This terminal block conforms to multiple standards, including UL Recognition, cULus Recognition, and EU RoHS compliance, ensuring safety and environmental adherence. The product is manufactured in Germany under stringent quality controls.

Ideal for electronics manufacturing, industrial automation, telecommunications, instrumentation, and laboratory equipment, this Phoenix Contact angled PCB Terminal Block delivers reliable performance and installation ease.

Constructed with durable polyamide housing material for longevity. Rated for nominal current of 13.5 A and voltage of 160 V. Features push-in spring connection for tool-free, time-saving wiring. Angled design allows for efficient conductor and PCB connection at 45 degrees.

Supports wave soldering mounting method for secure PCB attachment. Incorporates finger-operated release button for easy connector disengagement. Compact size ideal for space-constrained installations. Includes integrated test option for convenient electrical testing.
