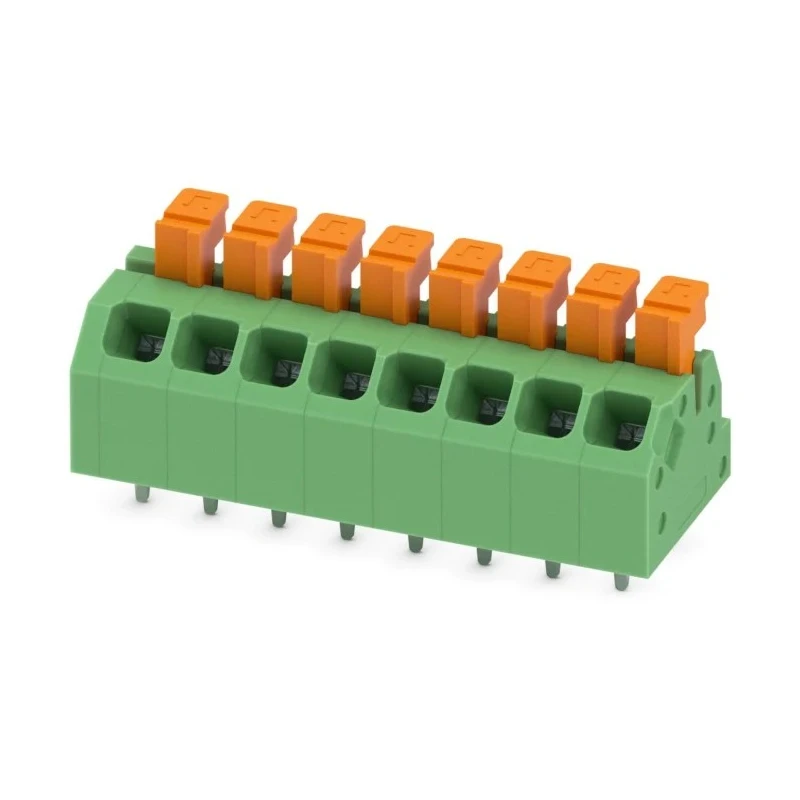

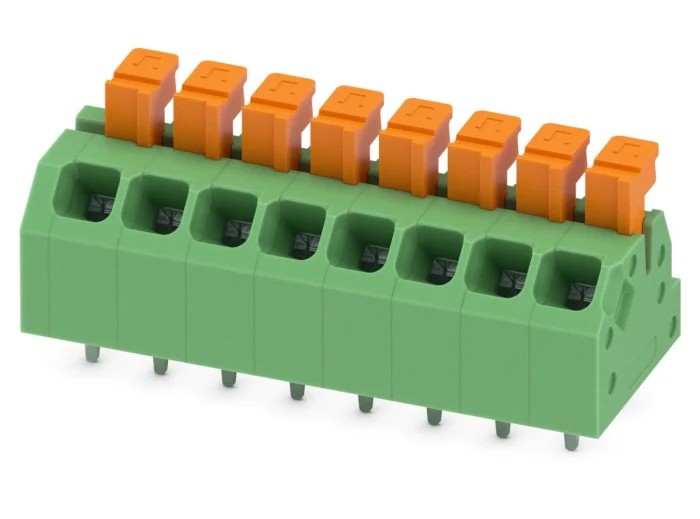

Phoenix Contact SPTAF 1/ 8-3.5-LL Series Angled PCB Terminal Block, 8 Contacts, 3.5 mm Pitch, 2 Rows 1864341

Phoenix Contact 1864341 is an angled PCB terminal block from the SPTAF 1/ 8-3.5-LL series, designed with 8 contact points and a 3.5 mm pitch, arranged in 2 rows. It operates with a nominal current of 13.5 A and voltage rating of 160 V, suitable for demanding electronics and electrical circuits.

The terminal block utilizes a push-in spring connection system, eliminating the need for tools and speeding up assembly processes. The angled construction (45° orientation) facilitates ergonomic conductor and PCB connection, while the polyamide housing ensures durable insulation and mechanical protection. Its green color makes it easy to identify on the PCB.

Mounting is performed via wave soldering, making the product compatible with automated PCB manufacturing lines. The finger-operated, fixable release button simplifies wire removal or adjustments during maintenance without damage to the contacts.

The stable and defined contact force maintains a secure electrical connection over time, reducing the risk of faults from vibrations or thermal cycling. A built-in test option allows for swift testing of circuits without disconnecting wiring, enhancing efficiency in industrial, laboratory, and manufacturing settings.

Certified to cULus and UL standards and complying with EU RoHS directives, this terminal block meets international safety and environmental protocols. Its compact form factor is optimized for space-constrained electronics and power connector applications.

The push-in spring connection system allows tool-free and time-saving wiring. Nominal current rating of 13.5 A and nominal voltage of 160 V ensures reliable electrical performance. Compact polyamide housing with a green color, angled at 45° for easy conductor and PCB connection.

Designed for wave soldering mounting method, suitable for automated PCB assembly. Integrated finger-operated and fixable release button enables convenient wire release. Stable contact force guarantees a long-term secure connection under vibration and mechanical stress.

Includes an integrated test option for quick and easy circuit testing. Complies with cULus Recognition, UL Recognition, and EU RoHS standards for safety and environmental compliance. Compact size optimizes space utilization in electrical and electronic devices.

This Phoenix Contact angled PCB terminal block is ideal for use in industrial electronics, power supplies, automation equipment, and control panels where reliable and compact connections are essential. It facilitates efficient assembly and maintenance while ensuring safety and compliance.
