Phoenix Contact PCB Terminal Block Angled Wave Soldering Mount 4 Contacts 3.5 mm Pitch 160V 16A 1862068

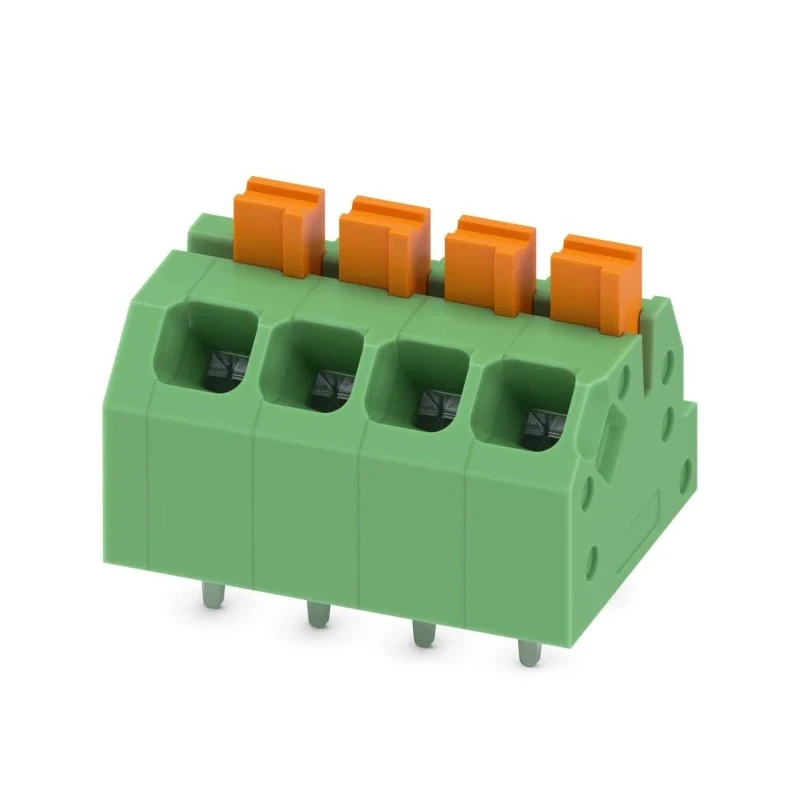

Phoenix Contact 1862068 PCB Terminal Block is a high-quality component designed for use in electronic assemblies requiring reliable power connections. It features an angled wave soldering mount designed for integration on printed circuit boards with a 3.5 mm pitch and 4 contact positions arranged over 2 rows. The green polyamide housing provides durability and electrical insulation while maintaining a compact footprint, suitable for applications where space is limited.

The terminal block’s push-in spring connection method enables fast, tool-free conductor installation, saving valuable assembly time. The finger-operated release button allows easy conductor removal or repositioning during maintenance without the need for special tools, enhancing operational convenience. The defined contact force ensures stable and secure electrical contact over long service periods, critical for industrial and commercial equipment reliability.

This component is mounted via wave soldering, which provides a strong mechanical bond to the PCB while maintaining excellent electrical connectivity. Its conductor/PCB connection orientation at 45 degrees facilitates wiring configurations in complex assemblies.

For testing and diagnostics, the terminal block includes an integrated test feature allowing quick verification of electrical continuity and circuit performance. It meets important safety and environmental compliance standards, including cULus recognition and EU RoHS directives, making it suitable for use in a wide range of industrial, manufacturing, and electronic applications.

The PCB Terminal Block operates with a nominal voltage of 160 V and supports currents up to 16 A, suitable for medium power electronic circuits. Its compact size and reliable operation make it an ideal choice for power connectors in control panels, automation equipment, and electronic instrument assemblies.

Consists of 4 contact positions arranged in 2 rows for secure electrical connection. Features a compact green polyamide housing with angled orientation for space-saving PCB integration. Mounting is designed for wave soldering, ensuring reliable mechanical and electrical fixation.

Connection method uses push-in spring technology for time-saving installation without tools. Includes finger-operated release button for convenient conductor release and maintenance. Stable contact force guarantees long-term reliable electrical connection.

Integrated test option allows quick and convenient testing of electrical circuits. Complies with cULus recognition and EU RoHS standards for safety and environmental compliance. Nominal voltage rating of 160 V and current capacity of 16 A ensures suitability for various power applications.
