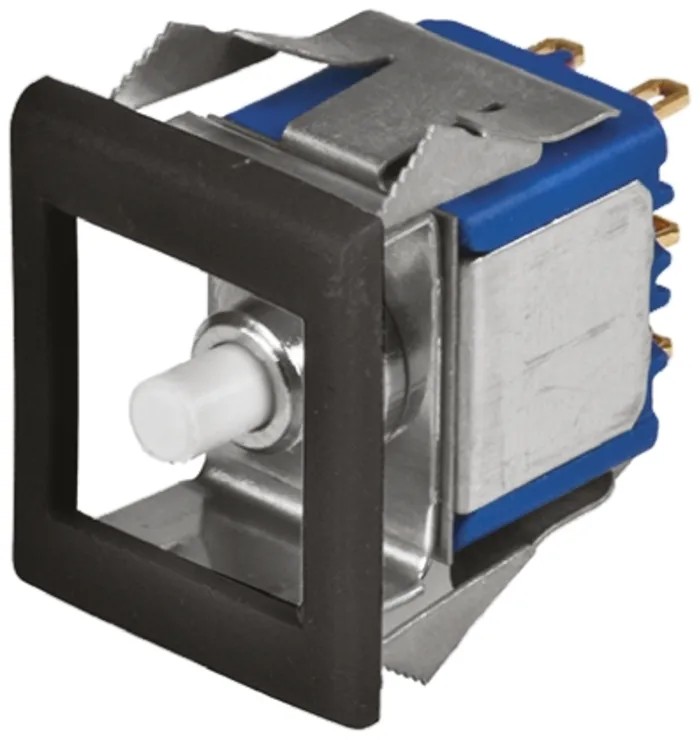

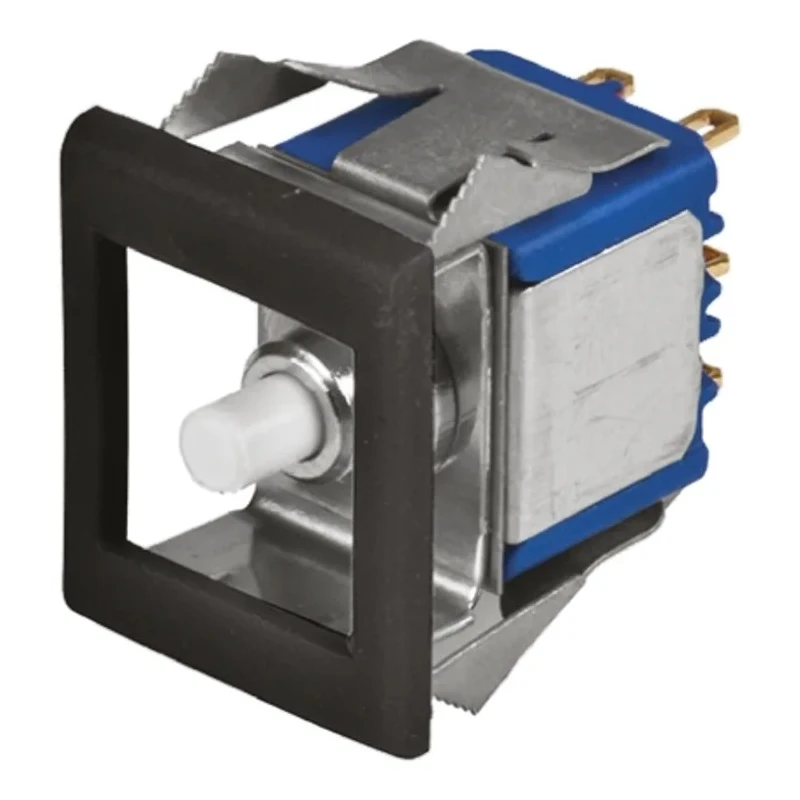

APEM 18000 Series Miniature Push Button Switch Momentary Panel Mount DPDT 15 mm Cutout IP65 30V dc 18845CD+U1202

APEM 18845CD+U1202 18000 Series Miniature Push Button Switch is a high-precision momentary action switch designed for panel mounting with a 15 mm cutout. It features a double pole double throw (DPDT) contact configuration with gold plated copper contacts, ensuring reliable signal switching performance in various industrial and electrical applications.

This switch is IP65 rated, providing excellent protection against dust and water ingress, making it suitable for industrial automation, control panels, electrical equipment, and signal control environments. It operates at 30 V dc with 100 mA current capacity and offers a broad operating temperature range from -30°C to 65°C, ensuring consistent operation under demanding environmental conditions.

The solder lug terminal connection provides secure wiring, while the microswitch action delivers a total travel of 0.5 mm with an additional 0.25 mm overtravel for tactile feedback and reliability. The narrow button actuator can be modified with interchangeable push-button caps for customization.

Applications include panel controls in industrial machinery, automation systems, instrumentation, and HVAC control panels, where precise momentary switching with robust environmental protection is required.

The switch operates momentarily with a precise microswitch action ensuring reliable performance. It features a 15 mm diameter panel cutout for easy mounting. The DPDT contact configuration supports flexible circuit control.

Gold plated copper contacts provide enhanced conductivity and corrosion resistance. The IP65 rating ensures dust-tight and water-resistant operation for harsh environments. Designed for 30 V dc contact voltage with a 100 mA current rating suitable for signal switching.

Connection is via solder lug terminals for secure assembly. The operating temperature range is -30°C to 65°C for wide industrial applications. The button actuator style allows for easy manual operation. RoHS compliant, ensuring adherence to environmental standards.

This product is manufactured in France and is compliant with RoHS directives, ensuring environmental safety and quality standards. Explore more in the Push Button Switch category on EnvMart for advanced industrial electrical switching solutions.
