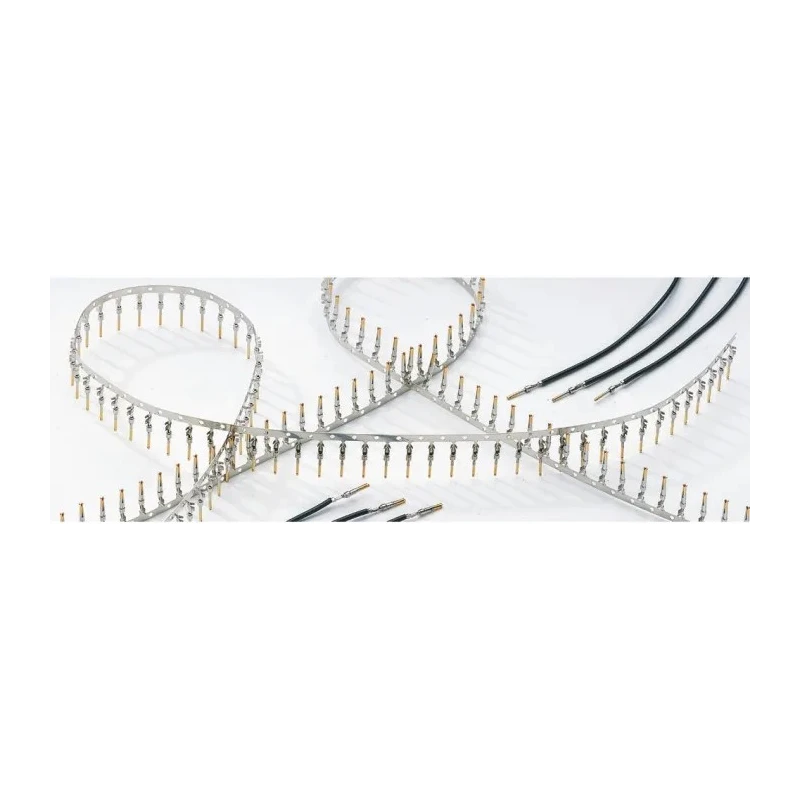

HARTING D-Sub Mixed Series Female Crimp D-Sub Connector Contact Signal 18 AWG 09670003672
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | D-Sub Mixed |
| Termination Type | Crimp |
| Contact Type | Signal |
| Standards/Approvals | RoHS |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 0.82mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- The contact is made from high-quality copper alloy ensuring excellent conductivity.
- Designed specifically for female crimp termination in D-Sub connectors.
- Compatible wire size ranges from 22 AWG to 18 AWG for versatile applications.
- Maximum contact resistance is limited to 20mΩ for efficient signal transmission.
- RoHS compliant, ensuring the product meets environmental standards.
- Suitable for use in electronics, power connectors, and industrial equipment.
- Machined with exacting tolerances to ensure performance and reliability.
Product Description
HARTING 09670003672 D-Sub Mixed Series Female Crimp D-Sub Connector Contact Signal 18 AWG is a premium connector contact designed for use within D-Sub connectors requiring hard-wearing, precise contacts. Featuring a copper alloy construction, these female crimp contacts deliver excellent electrical conductivity and durability for various industrial, electronic, and manufacturing applications.
This product supports wire sizes from 22 AWG up to 18 AWG, enabling compatibility with a broad range of cable sizes. The maximum contact resistance is tightly controlled at 20mΩ, ensuring efficient and reliable signal transmission in demanding environments.
Manufactured to performance level 1 standards with turned contacts and round bushings, these contacts are engineered for consistent insertion and removal cycles with minimal wear. Their crimp termination type allows secure connection with appropriate wire preparations.
The product is RoHS compliant, reflecting adherence to environmental and safety regulations, making it suitable for global electronic and industrial markets. The contact is made from high-quality copper alloy ensuring excellent conductivity.
Designed specifically for female crimp termination in D-Sub connectors. Compatible wire size ranges from 22 AWG to 18 AWG for versatile applications. Maximum contact resistance is limited to 20mΩ for efficient signal transmission.
RoHS compliant, ensuring the product meets environmental standards. Suitable for use in electronics, power connectors, and industrial equipment. Machined with exacting tolerances to ensure performance and reliability.
This D-Sub Connector Contact is ideal for applications in electronic assemblies, power connector manufacturing, telecommunications equipment, industrial machinery, and other commercial electronic systems.
Explore a wide range of connector contacts and accessories at EnvMart, your trusted source for industrial and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 22 AWG to 18 AWG, allowing for versatile applications in various electronic and industrial settings.
The maximum contact resistance is limited to 20mΩ, ensuring efficient signal transmission.
It is constructed from a high-quality copper alloy, which provides excellent electrical conductivity.
This unit features a crimp termination type, designed for secure connections with appropriately prepared wires.
Yes, it is RoHS compliant, meeting environmental and safety regulations for electronic components.
The country of origin for this product is India.
It is suitable for use in electronic assemblies, power connector manufacturing, telecommunications equipment, and industrial machinery.
Specific dimensions and weight details are not provided in the available information.
This model meets RoHS standards, ensuring compliance with relevant environmental regulations.
It is machined with exacting tolerances and engineered for consistent insertion and removal cycles with minimal wear.
It is a female crimp contact specifically designed for signal applications within D-Sub connectors.
This connector contact belongs to the D-Sub Mixed Series, indicating its compatibility with a range of D-Sub connectors.
