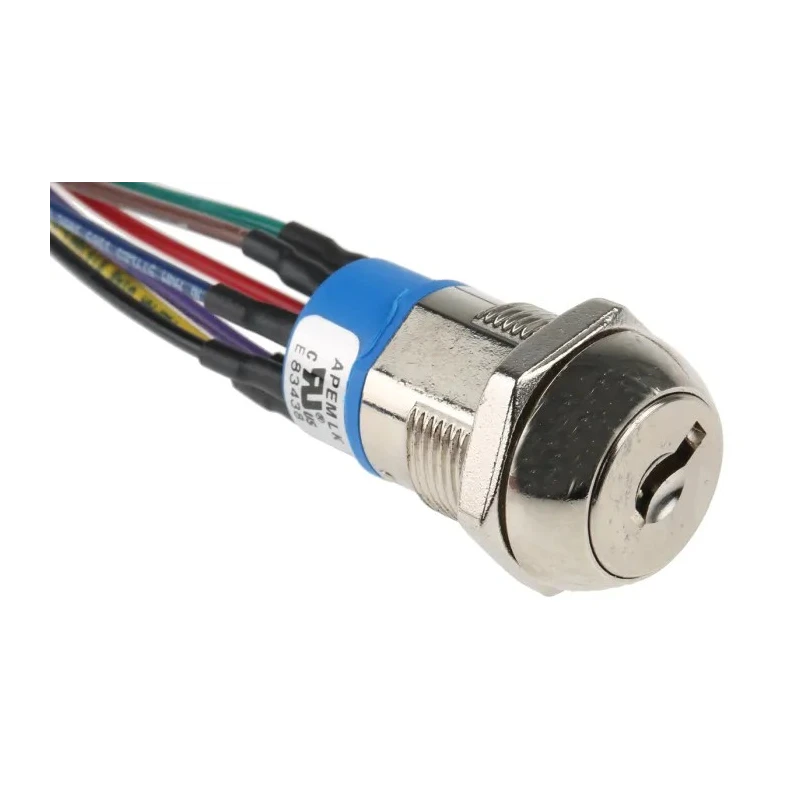

APEM Key Switch DPST 4A 3-Way Flat Key Zinc Alloy Housing Nickel-Plated JD10F126W
Specifications
| Country of Origin | China |
|---|---|
| Brand | APEM |
| Model | JD10F126W |
| Housing Material | Zinc Alloy |
| Contact Material | Brass |
| Series | JD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Number of Positions | 3 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Wire |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Switch Operation | Momentary |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 4A |
| Contact AC Voltage | 250V ac |
| Key Type | Flat |
| Bezel Shape | Round |
| Key Index Angle | 45° |
Key Features
- The switch has a 3-position configuration for flexible control.
- Contact configuration is double pole single throw (DPST) allowing dual circuit control.
- Key trapping feature enhances security by retaining the key in a specific position.
- Rated for a contact current of 4 amps at 28 volts DC, suitable for various electrical applications.
- Constructed with a zinc alloy housing and brass contacts for robust performance.

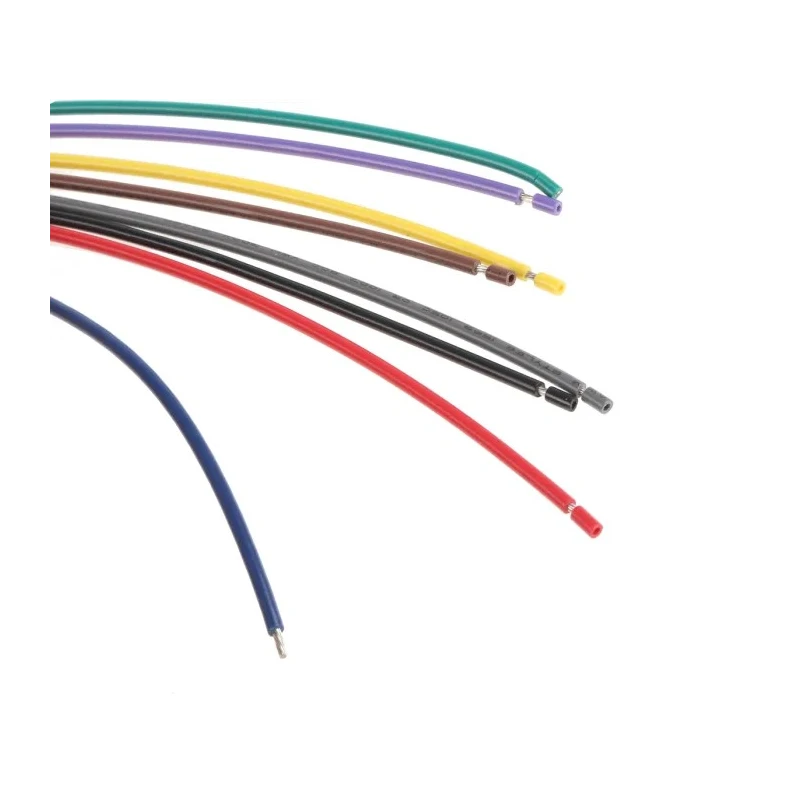

- Terminal type is wire lead for easy electrical connections.
- Round bezel shape with a 45° key index angle for ergonomic operation.
- Operates safely within the temperature range of -30°C to 85°C.
Product Description
The APEM JD10F126W Key Switch is a high-quality DPST (Double Pole Single Throw) momentary switch designed for industrial and commercial electrical applications. Featuring a durable zinc alloy housing with nickel plating and brass contacts, this key switch ensures long service life and reliable switching performance. Its 3-position key mechanism offers versatile operation, with key trapping to enhance security and prevent unauthorized removal.
The switch is rated for a contact current of 4A at 28V DC and 250V AC, making it suitable for many control circuits. It uses wire lead terminals for straightforward electrical connection and has a round bezel shape with a 45-degree key index angle for ease of use. This key switch operates effectively in a wide temperature range from -30°C to 85°C, ensuring stable performance in varied environments.
Compliance with RoHS standards guarantees environmental safety, making it suitable for modern industrial uses. The APEM JD10F126W is ideal for corridor and restroom lighting controls, and other electrical automation systems requiring secure, momentary switching keys.

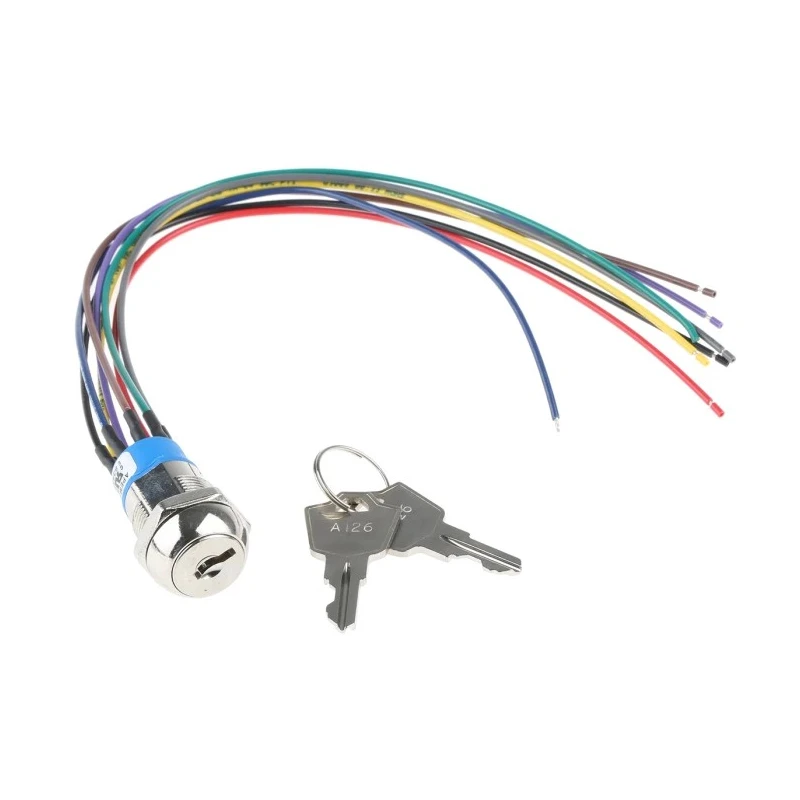

The switch integrates a 4-disc tumbler cylinder with 2 single-bitted brass keys for secure operation. Zinc alloy and brass construction provide mechanical strength and corrosion resistance. Momentary operation enables temporary activation of circuits for safety and control applications.
The 3-position setting allows multiple control states, improving system flexibility. Compact size and wire lead terminals ease installation in control panels and assemblies.
This product is manufactured in China and is part of the JD series by APEM, a trusted brand in industrial switches. Suitable for industrial automation, electrical panels, HVAC control, and commercial lighting systems, the JD10F126W is a reliable choice for controlling electrical loads where security and precise switching are essential.
Explore more high-quality Key Switches and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The key switch features a double pole single throw (DPST) contact configuration, allowing for dual circuit control.
It operates safely within a maximum temperature range of 85°C.
The switch is rated for a contact current of 4A at 28V DC and 250V AC.
The housing is made of zinc alloy, while the contacts are constructed from brass, providing mechanical strength and corrosion resistance.
This model has a 3-position configuration, allowing for flexible control.
It uses wire lead terminals for straightforward electrical connections.
The key type for this model is flat, designed for ergonomic operation.
Yes, it complies with RoHS standards and is also approved under ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
The key index angle is 45°, which aids in ergonomic operation.
The minimum operating temperature for this switch is -30°C.
This key switch is suitable for various applications including corridor and restroom lighting controls, as well as electrical automation systems.
