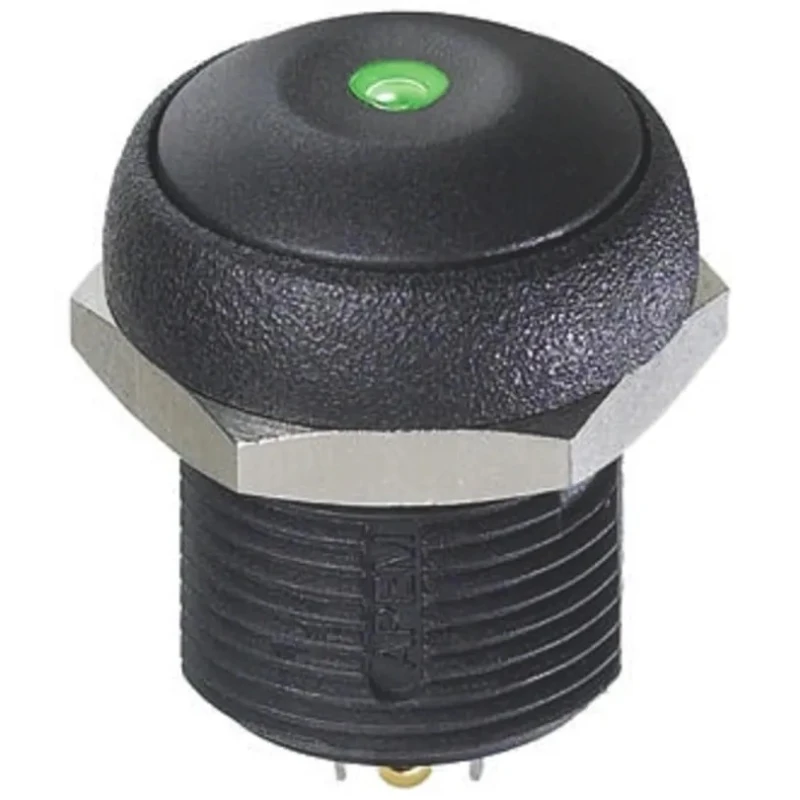

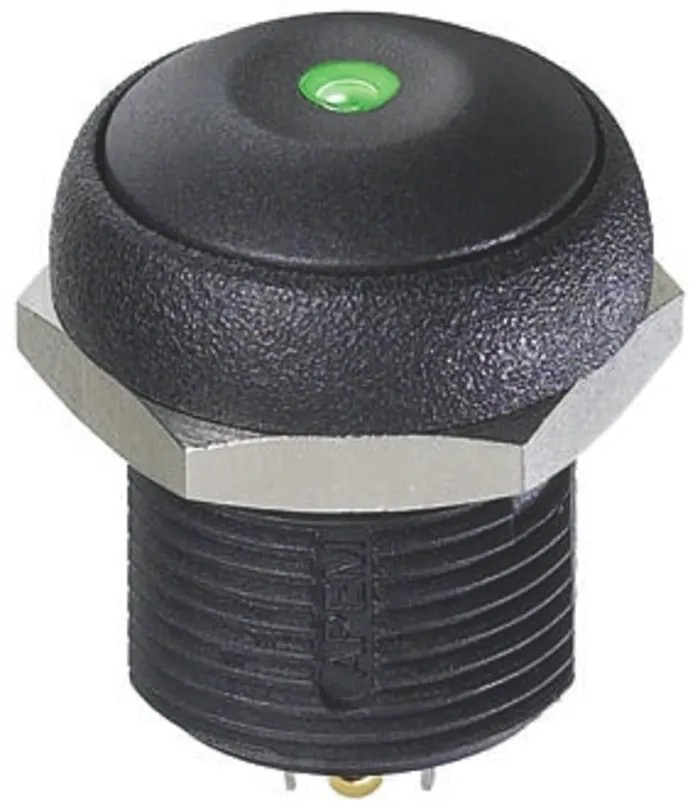

APEM IR Series Illuminated Momentary Push Button Switch, Panel Mount, SPST, Green LED, IP67, 14.8 mm Cutout, 48 IRR3S422LOG
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IRR3S422LOG |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | IR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 14.8 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 200mA |
| Contact AC Voltage | 250V ac |
| Legend | Optional Actuator Marking (On Request) |
Key Features
- The switch features a 14.8 mm panel cutout size for mounting.
- Equipped with a black actuator button style for tactile operation.
- Supports contact voltages of 48 V dc and 250 V ac.
- Designed to operate reliably within a temperature range of -40°C to 85°C.
- The LED illumination uses a green LED with a forward current of 20 mA.
- Switch contact current rating is 200 mA ensuring electrical performance.
- IP67 rating ensures protection against dust and water ingress for harsh environments.
- Terminals are designed for solder connections for secure electrical contact.
Product Description
The APEM IRR3S422LOG is a high-quality IR Series illuminated momentary push button switch designed for industrial and automation applications. Featuring a panel mount style with a 14.8 mm cutout, this switch offers a SPST contact configuration and is illuminated with a green LED for clear operational indication.
Designed to withstand harsh industrial conditions, the switch is sealed to IP67 standards, providing excellent protection against dust and moisture ingress. Its operating temperature range spans from -40°C to 85°C, making it suitable for demanding environments such as manufacturing, electrical panels, and control stations.
The actuator is a black button style, providing an intuitive momentary switch action. Its terminals use solder connections ensuring reliable and durable electrical joints. The green LED illumination operates at a forward current of 20 mA and contributes to easy visual feedback for the control system operator.
This push button switch complies with RoHS environmental regulations, supporting eco-friendly manufacturing and operation. The contact current is rated at 200 mA, with contact voltages up to 48 V dc and 250 V ac, providing versatility across many electrical control systems.
Custom actuator markings can be optionally requested to suit specific panel labeling requirements. Manufactured in France, the IRR3S422LOG combines precision engineering with robust design principles for consistent performance in industrial, laboratory, automation, and electrical panel applications.
The switch features a 14.8 mm panel cutout size for mounting. Equipped with a black actuator button style for tactile operation. Supports contact voltages of 48 V dc and 250 V ac. Designed to operate reliably within a temperature range of -40°C to 85°C.
The LED illumination uses a green LED with a forward current of 20 mA. Switch contact current rating is 200 mA ensuring electrical performance. IP67 rating ensures protection against dust and water ingress for harsh environments.
Terminals are designed for solder connections for secure electrical contact. Optional actuator marking legend can be requested for custom panel identification. This switch complies with RoHS environmental standards for hazardous substances.
Explore more high-quality Push Button Switches and industrial components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration.
It is designed to operate reliably within a maximum temperature of 85°C.
This model requires a panel cutout size of 14.8 mm for mounting.
It supports contact voltages of up to 48 V DC and 250 V AC.
This switch has an IP67 rating, providing protection against dust and water ingress.
The terminals are designed for solder connections, ensuring secure electrical contact.
The switch has a contact current rating of 200 mA.
It features a green LED for illumination.
The minimum operating temperature is -40°C.
Yes, optional actuator marking legends can be requested for custom panel identification.
This switch is manufactured in France.
It complies with RoHS environmental regulations for hazardous substances.
