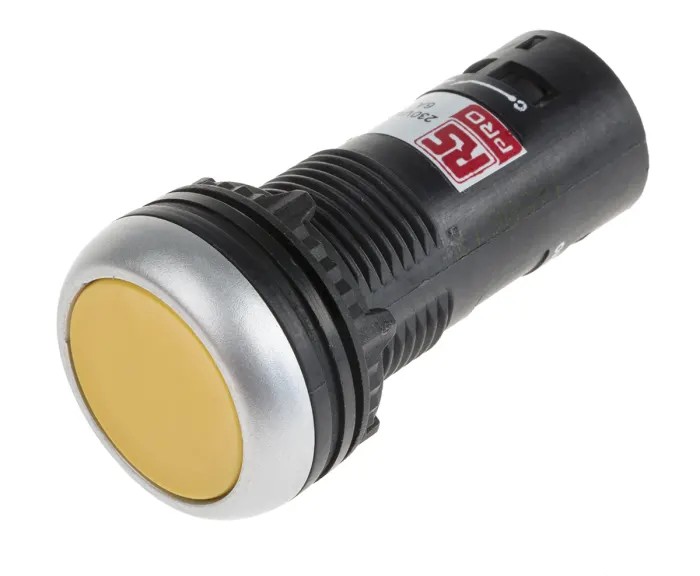

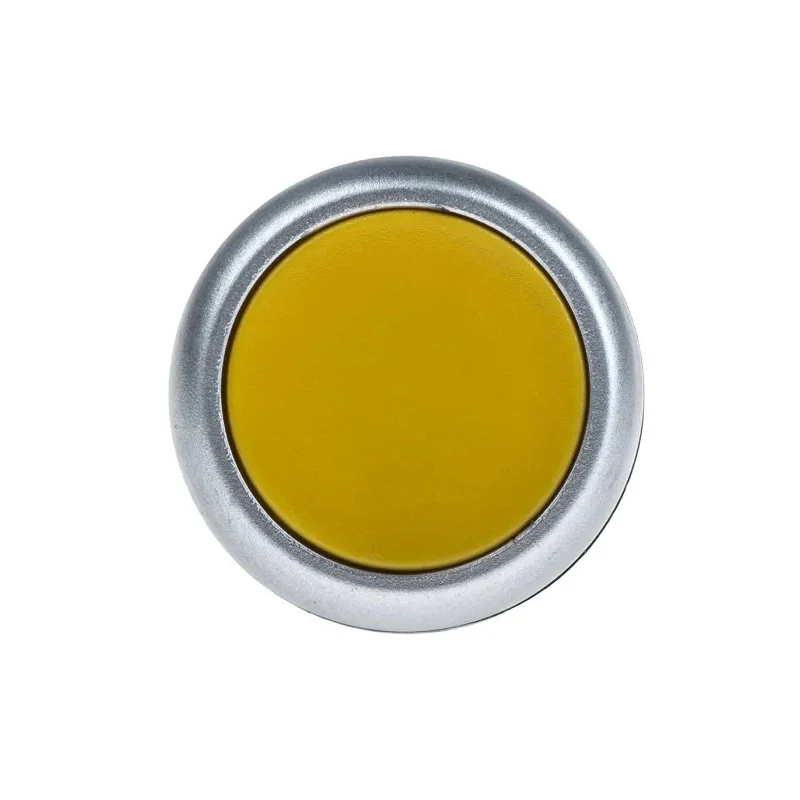

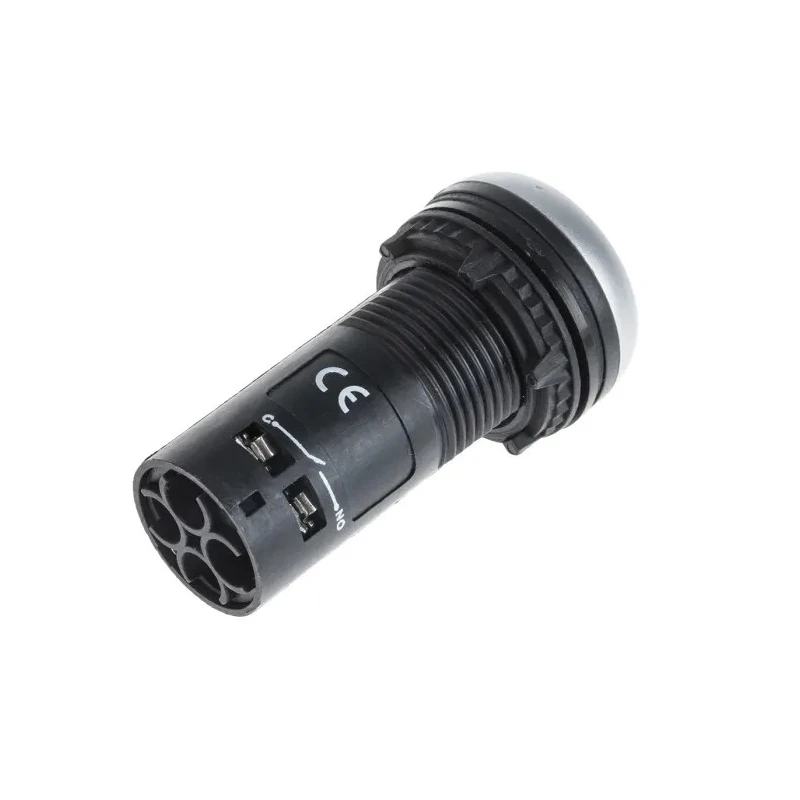

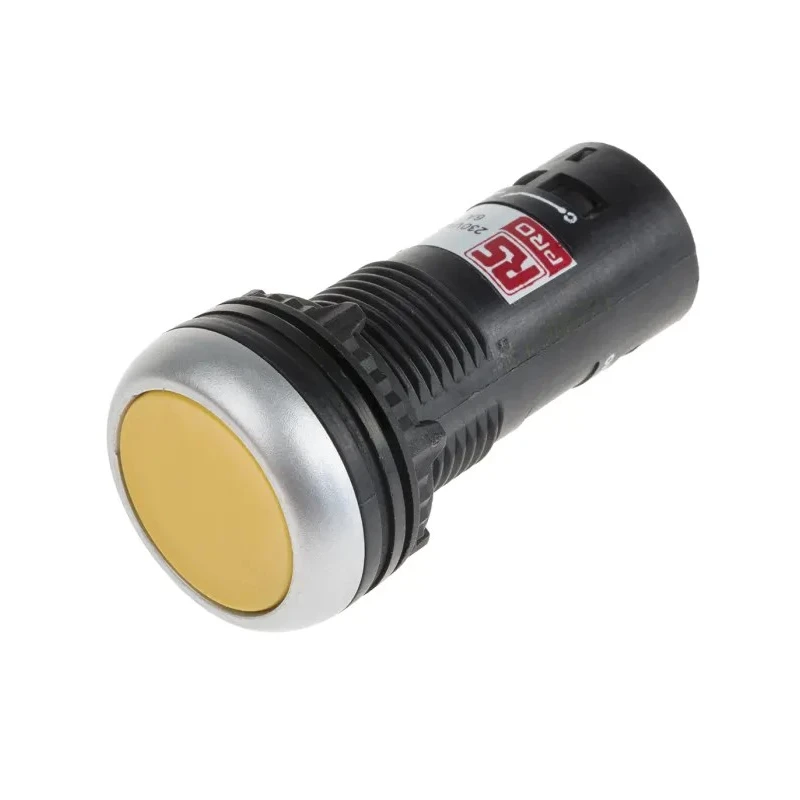

RS PRO Push Button Complete Unit Panel Mount 22 mm Cutout Yellow DPST IP65 230V 6A 145-0617
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Plastic |
| Model | 145-0617 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | cULus, CE, RoHS |
| Cutout Diameter | 22mm |
| Push Button Actuation | Momentary |
| Push Button Material | Plastic |
| Push Button Colour | Yellow |
| Push Button Diameter | 22mm |
| Push Button Style | Round |
Key Features
- Non-illuminated push button with momentary actuation.
- Plastic body and push button material provide durability.
- Screw terminal type ensures secure electrical connections.
- Suitable for machinery control and automation systems.
- Operating temperature range from -25°C to 65°C.
- IP65 rating protects against dust and low-pressure water jets.
- Round button with flush style and 22 mm diameter.
- Panel mount design with 22 mm cutout diameter.
Product Description
RS PRO 145-0617 is a Push Button Complete Unit designed for panel mounting with a 22 mm cutout. It features a yellow round plastic push button with momentary actuation and DPST contact configuration, rated for 230 V AC at 6 A. The product offers robust functionality suitable for industrial, machinery control, automation, and electrical applications.
This unit is constructed with durable plastic body and button materials to ensure longevity in demanding environments. The screw terminal type allows for secure and reliable electrical connections during installation. Its compact round shape and flush button style make it highly visible and user-friendly, simplifying operator interaction.
With an operating temperature range from -25°C to 65°C and an IP65 rating, the push button is well-protected against dust ingress and low-pressure water jets, making it suitable for indoor and outdoor industrial settings where resistance to harsh conditions is required. This non-illuminated push button operates on a momentary push actuation basis with a spring return mechanism for consistent performance.
The RS PRO 145-0617 push button complies with key industry standards including cULus, CE, and RoHS, ensuring it meets stringent safety and environmental requirements. Its design minimizes installation complexity by providing a complete unit including actuator, fixing collar, and integrated contact block ready for immediate use.
Non-illuminated push button with momentary actuation. Plastic body and push button material for durability. Screw terminal type for secure electrical connections. Suitable for machinery control and automation systems. Operating temperature range: -25°C to 65°C.
IP65 protection against dust and water jets. Round button with flush style and 22 mm diameter. Panel mount design with 22 mm cutout. Rated for 230 V AC and 6 A current. Complies with cULus, CE, and RoHS standards.
This push button is ideal for use in industrial and commercial equipment control, manufacturing lines, and HVAC systems where reliable switching and high visibility are essential. It ensures operational safety and environmental protection while simplifying installation and maintenance.
Explore more RS PRO electrical components, switches, and automation solutions in the Electronics & Electricals category on EnvMart for comprehensive industrial and commercial hardware needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this push button unit is 65°C.
This push button has an IP65 rating, which protects it against dust ingress and low-pressure water jets.
This model uses momentary actuation, meaning it returns to its original position after being pressed.
The required cutout diameter for panel mounting is 22 mm.
The contact configuration of this push button is DPST (Double Pole Single Throw).
This unit is rated for 230 V AC and a maximum current of 6 A.
The push button features a plastic body and a plastic push button material for durability.
This push button complies with cULus, CE, and RoHS standards, ensuring it meets safety and environmental requirements.
The minimum operating temperature for this model is -25°C.
This push button uses a screw terminal type to ensure secure electrical connections.
This push button is suitable for machinery control and automation systems, making it ideal for industrial and commercial equipment control.
The push button is round in style and is colored yellow, which enhances visibility.
