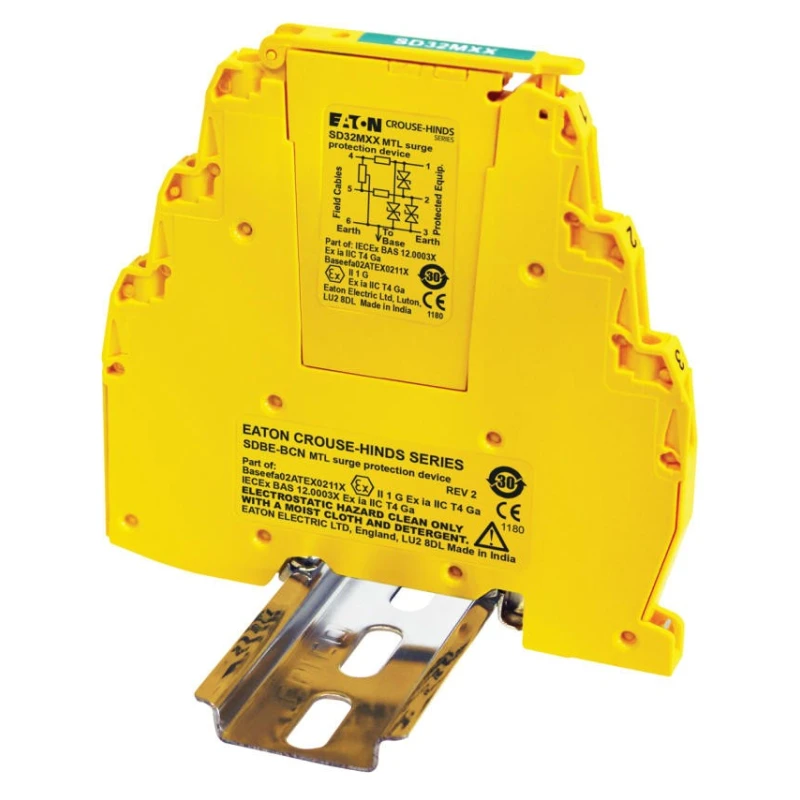

Eaton SD32 Surge Protection Device 32V Maximum Voltage Rating 20kA Maximum Surge Current DIN Rail Mount

Eaton SD32 surge protection device model SD32MXX-BCN is engineered to protect electrical equipment on control loop cabling by diverting voltage spikes through an advanced multi-stage hybrid protection circuit that combines solid-state electronics with a gas-filled discharge tube (GDT). This design ensures low line resistance and effective surge suppression up to 20kA.

The device supports 4 to 20mA milliampere loops, making it highly versatile for industrial and process control applications. Its ultra-slim form factor of only 7mm width allows mounting in compact, narrow spaces. The unit easily installs on standard DIN rails, facilitating quick integration into existing electrical panels or systems.

With an operating temperature range from -40°C to +80°C, it is suitable for use in harsh industrial environments. The optional loop disconnect feature allows maintenance or repairs without removing the device from the circuit, enhancing operational convenience. Additionally, it is ATEX certified and approved for use in potentially explosive atmospheres, ensuring safety in hazardous locations.

This surge protection device is characterized by a bright yellow color for easy visual identification in electrical assemblies. Its hybrid protection circuit technology minimizes voltage drop and offers high bandwidth capabilities, making it ideal for safeguarding sensitive electronic and networking equipment in industrial, laboratory, manufacturing, and commercial settings.

The Eaton SD32 series complies with UL E220693 standards and is manufactured in India, delivering trusted quality and reliability for surge suppression needs. Provides protection for 4 to 20mA loops with flexible application.

Features multi-stage hybrid protection circuit combining solid-state electronics and GDT. Ultra-slim design at 7mm width allows installation in narrow spaces. Equipped with DIN rail mount for quick and convenient installation.

Operating temperature range from -40°C to +80°C ensures reliability in harsh environments. Includes optional loop disconnect for maintenance without device removal. Certified for use in potentially explosive atmospheres.

Designed for low line resistance and high bandwidth applications. Bright yellow color for easy visual identification. Explore the Eaton brand and our range of Surge Protection Devices at EnvMart for reliable industrial surge suppression solutions.
