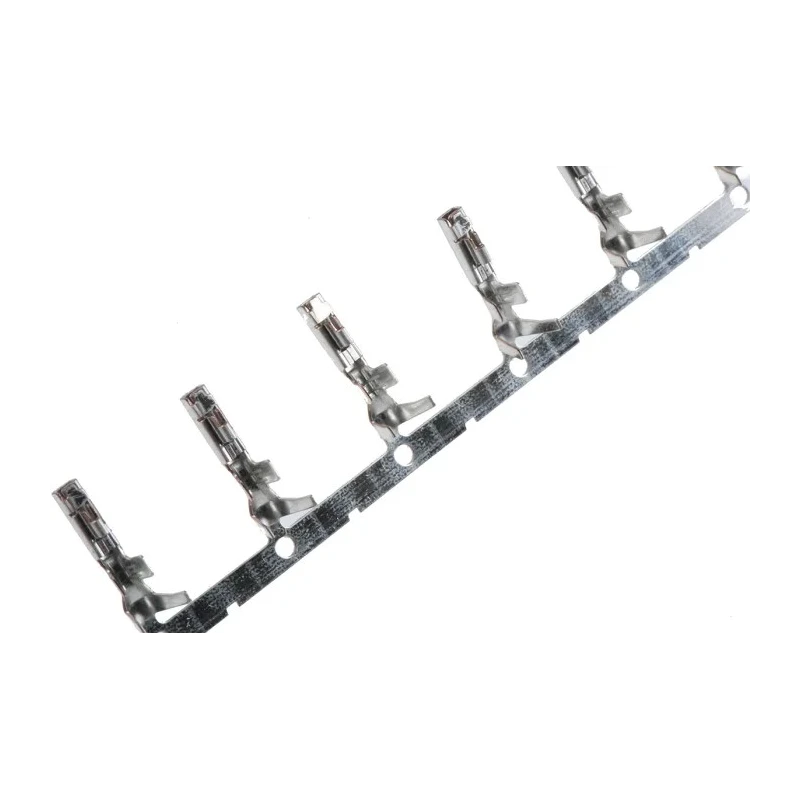

TE Connectivity Universal Power Series Female Crimp Terminal 12A 20 AWG Min, 16 AWG Max 175152-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Universal Power Series Female Crimp Terminal 12A 20 AWG Min, 16 AWG Max 175152-1

Name: TE Connectivity Universal Power Series Female Crimp Terminal 12A 20 AWG Min, 16 AWG Max 175152-1
Brand: TE Connectivity
SKU: 210908
Price: 0.08 USD
Availability: InStock



Category Power Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Current	12A
Length	11.75mm
Model	175152-1
Gender	Female
Contact Material	Copper Alloy
Series	AMP Universal Power
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
For Use With	AMP Universal Power Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.4mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	16AWG
Maximum Contact Resistance	20mΩ

Key Features

Supports wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.4 mm²).
Rated for a maximum current of 12 amperes.
Constructed from copper alloy with tin plating for corrosion resistance.
Operates reliably between -30°C and 105°C.
Termination type is crimp for secure wire attachment.
Maximum contact resistance of 20 milliohms ensures minimal signal loss.
Manufactured in China under high quality standards.
Designed for compatibility with AMP Universal Power Connector series.

Product Description

TE Connectivity 175152-1 Universal Power Series Female Crimp Terminal is engineered for secure and efficient electrical power connections. This crimp terminal supports wire sizes from 20 AWG (minimum) to 16 AWG (maximum), catering to a range of electrical wiring requirements.

With a maximum current rating of 12 amperes, it is suitable for various industrial, commercial, and electronic applications requiring high-quality power connectors. The contact is made of copper alloy and plated with tin, providing excellent conductivity and resistance to corrosion.

The terminal operates effectively in temperature ranges from -30°C to 105°C, making it reliable for diverse environmental conditions encountered in electronics and power systems. Its length of 11.75 millimeters is optimized for use with AMP Universal Power Connector housings, facilitating easy integration into assemblies.

This product employs crimp termination technology, ensuring a robust and durable connection to wires. The maximum contact resistance of 20 milliohms guarantees low electrical losses and efficient power transmission.

Supports wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.4 mm²). Rated for a maximum current of 12 amperes. Constructed from copper alloy with tin plating for corrosion resistance. Operates reliably between -30°C and 105°C.

Length of the terminal is 11.75 mm, suitable for AMP Universal Power Connector Housing. Termination type is crimp for secure wire attachment. Maximum contact resistance of 20 milliohms ensures minimal signal loss. Manufactured in China under high quality standards.

Designed for compatibility with AMP Universal Power Connector series.

This terminal is commonly used in electrical connectors for industrial, electronic component assemblies, automotive, and power management systems. It facilitates reliable power distribution and connectivity in devices and machinery.
