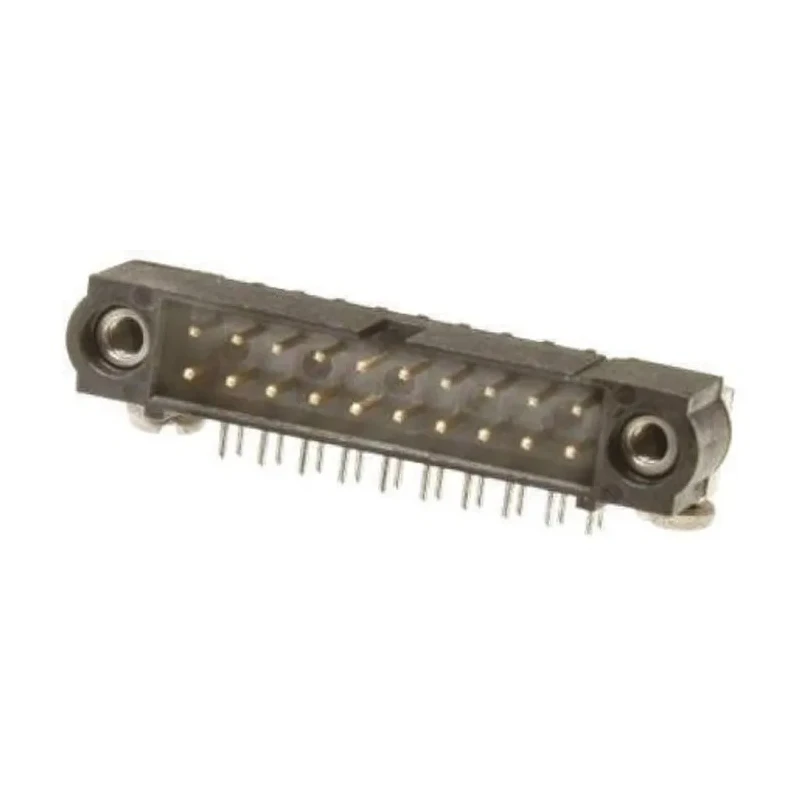

HARWIN Datamate J-Tek Series Right Angle Through Hole PCB Header 50 Contacts 2 mm Pitch 2 Rows Shrouded M80-5405042

HARWIN M80-5405042 Datamate J-Tek Series Right Angle Through Hole PCB Header delivers high reliability and robust connectivity suitable for industrial, electronic, and manufacturing applications. Featuring 50 male contacts with a precise 2 mm pitch in 2 rows, this shrouded connector is designed to withstand harsh environments and high vibration conditions encountered in automotive, aerospace, and industrial electronics.

The connector system supports both board-to-board and wire-to-board interfaces with a secure through-hole mounting configuration. Gold-plated phosphor bronze contacts ensure excellent electrical conductivity and resistance to corrosion, while the polyphenylene sulphide housing provides exceptional thermal and mechanical stability up to 125°C.

Mating cycles are highly durable thanks to the high-reliability four-finger beryllium copper contact design intrinsic to the Datamate J-Tek series. Its right angle orientation and 3 mm tail pin length facilitate reliable soldering and compact PCB layouts.

Operating at voltages up to 120V with a current rating of 3A, this connector is ideal for high load and safety-critical applications. The operating temperature range from -55°C to 125°C supports varied environmental conditions encountered in industrial and aerospace settings.

Manufactured in the United Kingdom, this component complies with quality and durability requirements without specific standards or approvals. It is a cost-effective solution for designers requiring rugged and dependable PCB mounting connectors.

The connector features a durable shrouded design for added protection. Includes 50 male contacts arranged in 2 rows for efficient board-to-board or wire-to-board connections. Constructed with gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance.

Housing is made from polyphenylene sulphide, ensuring high thermal stability and mechanical robustness. Supports a current rating of 3A and operates at voltages up to 120V. Right angle orientation with through-hole mount type for secure PCB integration.

Tail pin length measures 3 mm, facilitating reliable solder termination. Operates reliably in temperatures from -55°C to a maximum of 125°C. Designed to withstand harsh environments and high vibration applications with high mating cycle durability.
