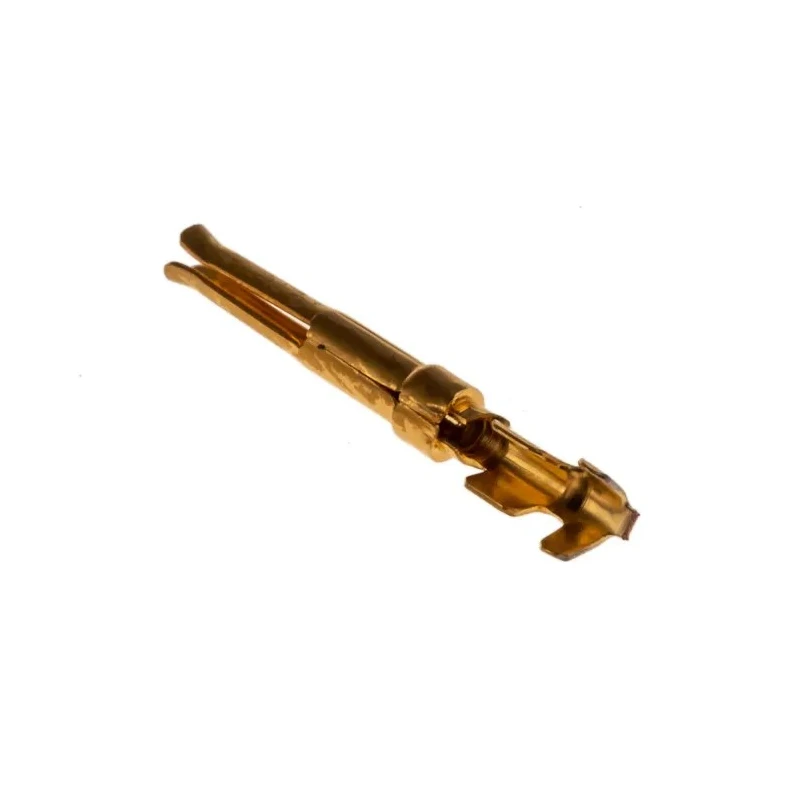

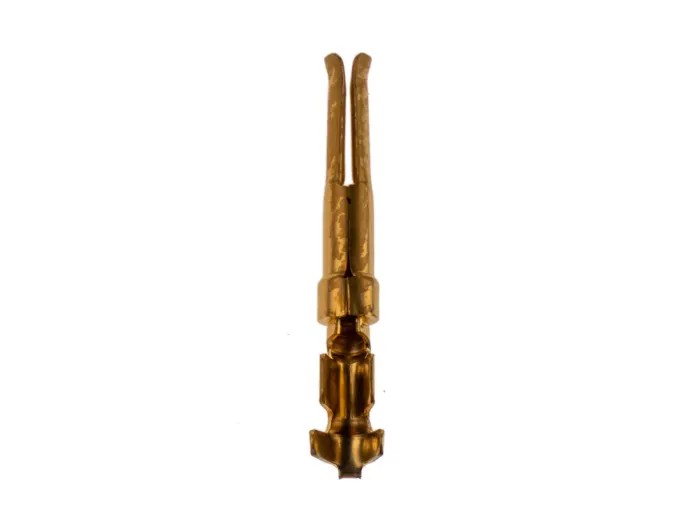

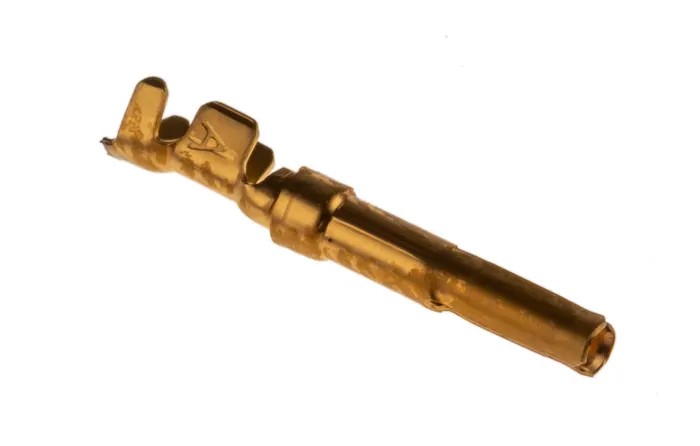

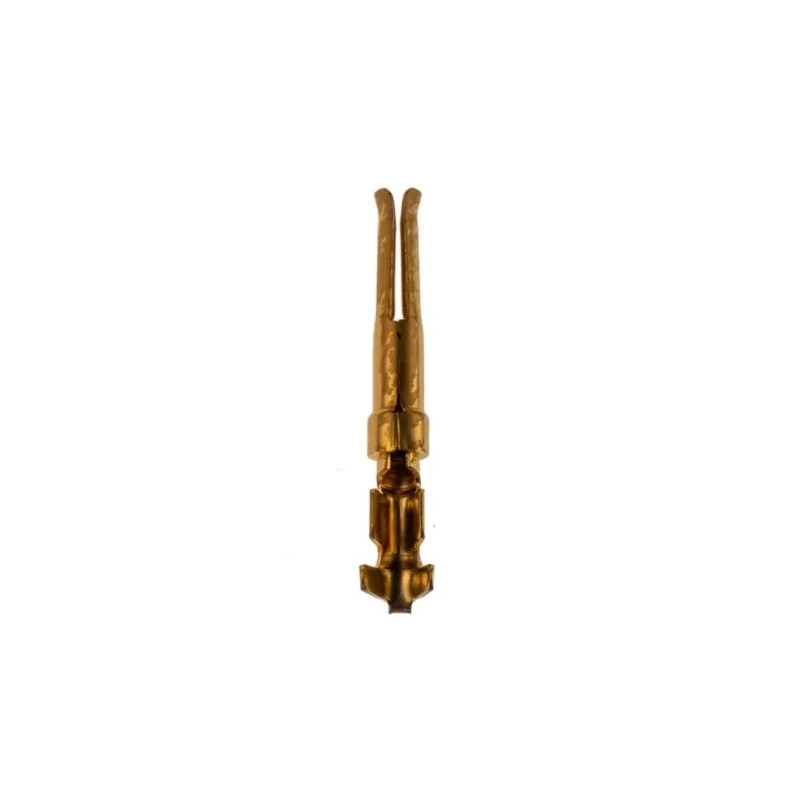

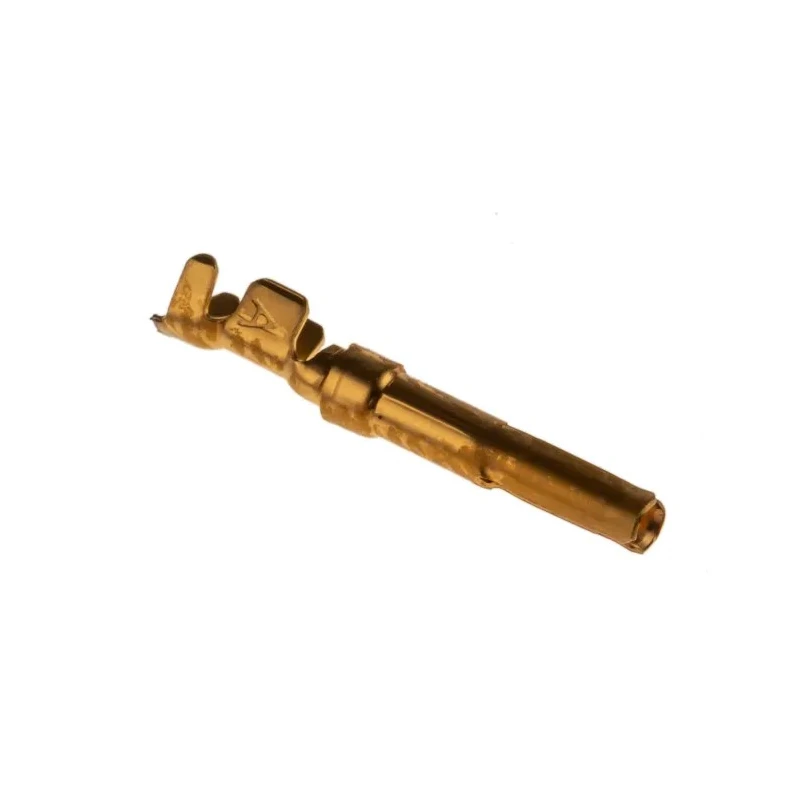

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66504-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66504-3

Name: TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66504-3
Brand: TE Connectivity
SKU: 210354
Price: 0.46 USD
Availability: InStock



Category D-Sub Connector Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	3.7A
Length	14.1mm
Model	66504-3
Gender	Female
Contact Material	Phosphor Bronze
Series	AMPLIMITE HDP-20
Termination Type	Crimp
Contact Type	Signal
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.6mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Contact Size	20
Maximum Contact Resistance	15mΩ
• Pin diameter	0.04 (1.02)

Key Features

Made of phosphor bronze for excellent conductivity and durability.
Gold over nickel plating enhances corrosion resistance and signal quality.
Designed for 20 AWG wire size for versatile wiring options.
Crimp termination type ensures secure and robust connection.
Compatible with AMPLIMITE HDP-20 D-Sub connector series.
Maximum current rating of 3.7A suitable for signal transmission.
Compact length of 14.1 mm supports dense connector configurations.
Minimum contact resistance of 15mΩ ensures low signal loss.

Product Description

TE Connectivity 66504-3 AMPLIMITE HDP-20 Series size 20 Female Crimp D-Sub Connector Contact is designed for high-reliability signal connectivity in electronic assemblies. This contact is crafted from phosphor bronze, ensuring strong mechanical and electrical performance. The contact is plated with gold over nickel, providing robust corrosion resistance and superior conductivity for critical signal applications in industrial, electronic, and communication devices.

With a current rating of 3.7 amps, this contact supports a wide range of signal requirements and is suitable for use with 20 AWG wire sizes. Its crimp termination method assures a secure attachment to wires, eliminating risks of loosening in harsh environments or vibration-prone installations. The contact measures 14.1 mm in length and features a 1.02 mm pin diameter, optimized for seamless integration into the AMPLIMITE HDP-20 D-Sub connector system.

This product is ideal for applications in electronics manufacturing, computing equipment, telecommunications, and other sectors where reliable and compact connectors are needed. While the series does not hold specific approvals or certifications, it meets demanding electrical and mechanical standards for signal transmission use.

Constructed of phosphor bronze for durability and conductivity. Gold over nickel plating protects against corrosion and enhances signal quality. Supports wire sizes from 24 to 20 AWG with a crimp termination. Current rating up to 3.7 amperes suitable for signal loads.

Compact 14.1 mm length fits in dense connector layouts. Pin diameter of 1.02 mm ensures fitting precision. Designed for use with AMPLIMITE HDP-20 connectors. Low maximum contact resistance of 15 mΩ reduces signal loss.

Increase assembly precision and connectivity reliability with the TE Connectivity AMPLIMITE HDP-20 Series Female Crimp D-Sub Connector Contact. This component enhances signal integrity and is suited for industrial electronics, laboratory equipment, manufacturing instrumentation, and communication hardware.

Explore the EnvMart catalog for more TE Connectivity connectors and accessories compatible with your electronic design and assembly requirements.
