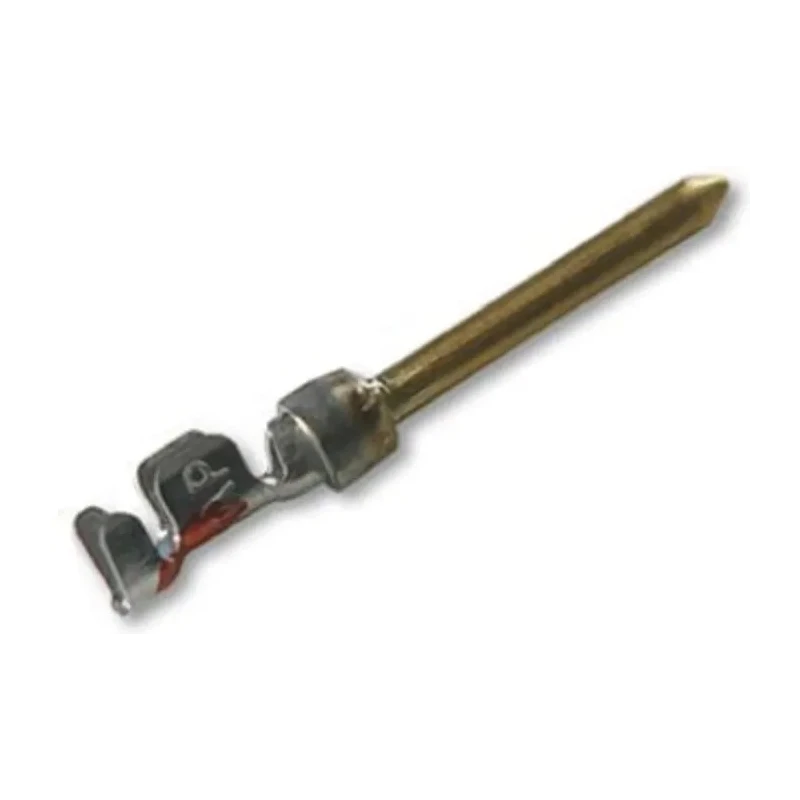

TE Connectivity AMPLIMITE HD-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold Pin 20 AWG 166293-1
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Length | 14.6mm |
| Model | 166293-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Termination Type | Crimp |
| Contact Type | Pin |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.22mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
Key Features
- The contact is made of brass material for durability and strength.
- Gold plating ensures low contact resistance of maximum 15 milliohms for reliable electrical performance.
- Designed for crimp termination with wire size range 24 AWG to 20 AWG (0.2 to 0.22 mm²).
- Male pin type contact with a length of 14.6 mm for easy insertion into D-Sub connectors.
- Part of the AMPLIMITE HD-20 series, offering compatibility with standard D-Sub connector assemblies.
- Manufactured in Poland and meets industrial quality standards though no specific approvals listed.
Product Description
TE Connectivity 166293-1 AMPLIMITE HD-20 Series Size 20 Male Crimp D-Sub Connector Contact with Gold Pin plating is a high-quality electronic connector component designed for reliable electrical connections in industrial and electronic applications.
This contact is manufactured from brass and plated with 0.76 µm gold to provide excellent conductivity and corrosion resistance, ensuring low maximum contact resistance of 15 milliohms. The contact is engineered for male pin configurations with a length of 14.6 mm, suitable for crimp termination methods.
With support for wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.22 mm²), this contact integrates seamlessly with AMPLIMITE HD-20 series cable mount D-Sub connectors, making it ideal for power and signal transmission uses in industrial, manufacturing, and electronic equipment assemblies.
The TE Connectivity AMPLIMITE range is known for high performance in demanding environments, providing secure and durable connections for electronic components. This product originates from Poland and is offered as a new component with consistent manufacturing quality.
The contact is made of brass material for durability and strength. Gold plating ensures low contact resistance of maximum 15 milliohms for reliable electrical performance. Designed for crimp termination with wire size range 24 AWG to 20 AWG (0.2 to 0.22 mm²).
Male pin type contact with a length of 14.6 mm for easy insertion into D-Sub connectors. Part of the AMPLIMITE HD-20 series, offering compatibility with standard D-Sub connector assemblies. Manufactured in Poland and meets industrial quality standards though no specific approvals listed.
This D-Sub Connector Contact is widely used in electronic component manufacturing, industrial control, telecommunications, and lab equipment assembly where reliable and corrosion-resistant electrical contacts are critical.
Browse the Electronics & Electricals > Power Connectors category at EnvMart for more TE Connectivity AMPLIMITE series connectors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact resistance is 15 milliohms, ensuring reliable electrical performance.
It is designed for crimp termination with wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.22 mm²).
The male pin contact has a length of 14.6 mm for easy insertion into D-Sub connectors.
The contact is made from brass, which provides durability and strength.
This model uses crimp termination for connecting wires.
The current rating for this contact is 1.2A, suitable for various applications.
It is part of the AMPLIMITE HD-20 series, designed for compatibility with standard D-Sub connector assemblies.
This product is manufactured in Poland, ensuring consistent quality standards.
The contact type is a male pin, specifically designed for D-Sub connectors.
The contact is plated with gold, which enhances conductivity and corrosion resistance.
The 20 AWG size indicates the maximum wire size that can be crimped onto the contact, ensuring effective electrical connections.
This contact is widely used in electronic component manufacturing, industrial control, telecommunications, and lab equipment assembly.
