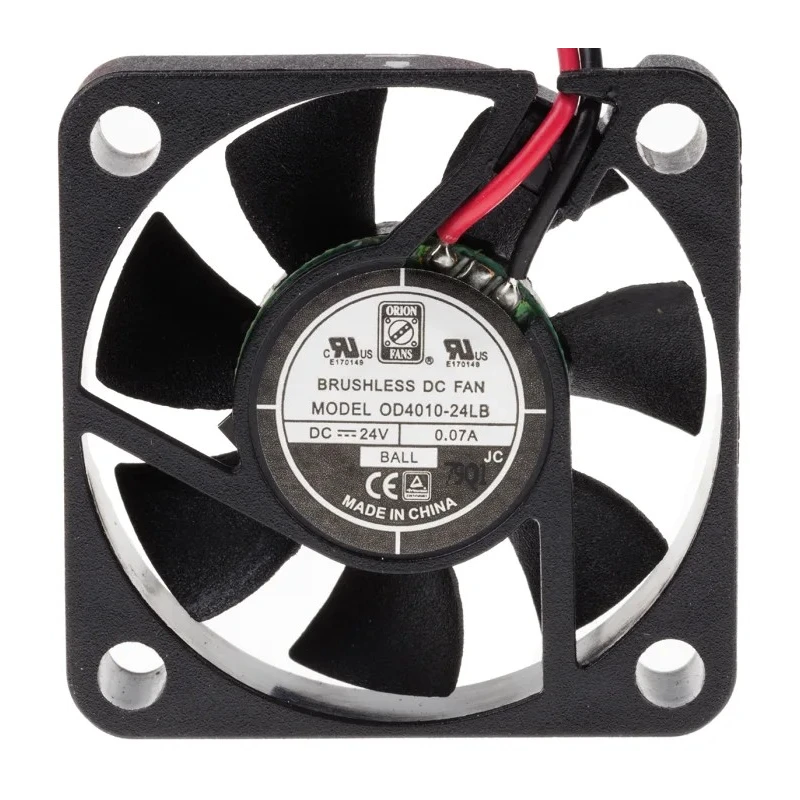

RS PRO Axial Fan, 24V DC, 1.68 W, 70 mA Max, 8.5 m³/h Air Flow, IP55, Ball Bearing, 40 mm Frame Size IP55
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | 1.68W |
| Brand | RS PRO |
| Height | 40mm |
| Fan Speed | 4200rpm |
| Air Flow | 8.5m³/h |
| Model | IP55 |
| Depth | 10.5mm |
| IP Rating | IP55 |
| Noise Level | 14dB |
| Width | 40mm |
| Series | RS PRO |
| Maximum Current | 70mA |
| Terminal type | Screw |
| Supply Voltage | 24V dc |
| Bearing Type | Ball |
| Standards/Approvals | RoHS |
| Fan Frame Size | 40 mm |
| Fan Frame Type | Square |
| Direction of Curve | Forward |
Key Features
- Operates at 24V DC with a power consumption of 1.68 W.
- Delivers an air flow rate of 8.5 cubic meters per hour.
- Features a compact 40 mm square frame size and IP55 ingress protection rating.
- Equipped with durable ball bearings for extended service life.
- Fan speed runs at 4200 rpm for smooth airflow and low noise.
- Constructed with PBT thermoplastic casing ensuring high durability and chemical resistance.
- Suitable for horizontal and vertical mounting positions.
- Low noise emission at just 14 dB makes it ideal for quiet environments.
Product Description
RS PRO IP55 axial fan is a high-quality cooling solution powered by a 24V DC supply and consuming only 1.68 watts of power. It provides a modest air flow of 8.5 cubic meters per hour and operates at 4200 rpm with a maximum current of 70 mA. Encased in a robust PBT thermoplastic square frame measuring 40 mm with an IP55 ingress protection rating, the fan is designed to withstand harsh environments, including dust and water exposure.
This axial fan incorporates ball bearing technology, which ensures a long service life and allows the fan to be mounted in any axial position without performance degradation. The screw-type terminals facilitate straightforward electrical connections. Its ultra-low noise level of 14 dB makes it suitable for quiet office, laboratory, and industrial spaces.
RS PRO axial fans are broadly used in industrial, HVAC, computing, and automotive cooling applications, including air compressors, generators, and motor engines. The unit’s forward curve design enhances air flow efficiency and reliability.
The fan supports both horizontal and vertical mounting to fit various equipment configurations. It meets RoHS standards, demonstrating compliance with environmental safety requirements.
Dimensions include a 40 mm width, 40 mm height, and 10.5 mm depth, making it compact yet effective for space-limited installations. The package includes a single RS PRO IP55 axial fan.
Operates at 24V DC with a power consumption of 1.68 W. Delivers smooth and efficient air flow at 8.5 m³/h. Durable PBT thermoplastic casing with square frame design. Ball bearing system enables long service life and versatile mounting.
Low noise level of 14 dB for quiet operation. Compact 40 mm x 40 mm x 10.5 mm dimensions. Meets RoHS compliance standards. Explore the complete range of Axial Fans and cooling solutions at EnvMart for industrial, laboratory, HVAC, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fan operates with a power consumption of 1.68 watts.
It delivers an air flow rate of 8.5 cubic meters per hour.
The fan has a compact square frame size of 40 mm x 40 mm.
This model operates at a maximum fan speed of 4200 rpm.
The axial fan emits a low noise level of 14 dB, making it suitable for quiet environments.
It is equipped with durable ball bearings, which contribute to its extended service life.
The fan has an IP55 ingress protection rating, indicating resistance to dust and water exposure.
This axial fan operates at a supply voltage of 24V DC.
The dimensions are 40 mm in width, 40 mm in height, and 10.5 mm in depth.
It supports both horizontal and vertical mounting positions to fit various equipment configurations.
Yes, it meets RoHS standards, demonstrating compliance with environmental safety requirements.
The fan features screw-type terminals for straightforward electrical connections.
