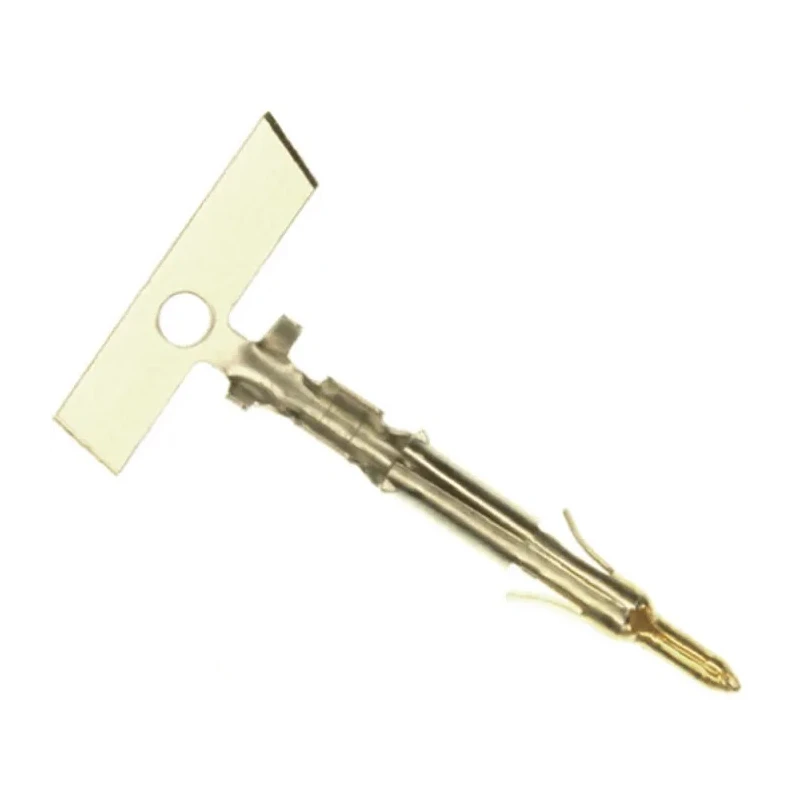

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 9.5A Current 22AWG Min, 18AWG Max Wire 1-770987-0
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 9.5A |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with Mini-Universal MATE-N-LOK Connector Housing.
- Constructed from brass with gold-plated contacts for durability.
- Accepts wire sizes from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
- Rated for continuous operation from -55°C to 105°C.
- Termination is by crimp method ensuring secure wire connection.
- Maximum contact resistance is 20 milliohms for minimal signal loss.
- Supports a current rating of 9.5 amperes.
- Manufactured in the United States to high-quality standards.
Product Description
TE Connectivity 1-770987-0 Mini-Universal MATE-N-LOK Male Crimp Terminal is a high-quality electrical connector designed to provide reliable and secure wire termination solutions. Rated for a current of 9.5 amperes, this crimp terminal supports wire sizes from 22 AWG minimum up to 18 AWG maximum, making it versatile for various electronic and power connector needs.
The terminal features brass contact material with a gold plating, which offers excellent conductivity along with enhanced corrosion resistance, extending the operational life even in challenging environments. The crimp termination method ensures a stable and robust connection, critical for maintaining signal integrity in PCB connectors and wire housings.
Designed to operate safely across a temperature range from -55°C up to 105°C, the terminal is suitable for use in industrial, manufacturing, electronic assembly, and power distribution applications. The maximum contact resistance is low at 20 milliohms, minimizing energy losses.
Manufactured in the United States, this product assures compliance with stringent quality standards and is ideal for demanding environments requiring dependable electrical connections.
Compatible with Mini-Universal MATE-N-LOK Connector Housing. Brass construction with gold-plated contacts for durability. Wire size range from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²). Current rating of 9.5 amperes suitable for moderate power applications.
Operating temperature from -55°C to 105°C. Termination by crimp for secure connections. Low contact resistance of 20 milliohms ensures efficiency. Manufactured in the United States.
This crimp terminal is widely employed in electronics manufacturing, automotive, aerospace, and other industrial sectors where high reliability and consistent electrical performance are crucial. Explore the TE Connectivity range for complementary connectors and tooling on EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male crimp terminal has a current rating of 9.5 amperes, making it suitable for moderate power applications.
It accepts wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
The maximum operating temperature for this terminal is 105°C, allowing it to function in high-temperature environments.
This terminal can operate at temperatures as low as -55°C, making it suitable for cold environments.
It uses a crimp termination method, ensuring a secure and stable wire connection.
The maximum contact resistance is 20 milliohms, which helps minimize energy losses during operation.
The terminal is constructed from brass and features gold plating for enhanced conductivity and corrosion resistance.
Yes, it is compatible with the Mini-Universal MATE-N-LOK Connector Housing.
This terminal is manufactured in the United States, adhering to high-quality standards.
It is widely employed in electronics manufacturing, automotive, aerospace, and other industrial sectors where reliable electrical connections are crucial.
This crimp terminal is male, designed to connect with compatible female terminals.
This terminal belongs to the Mini-Universal MATE-N-LOK series, known for its versatility in various electronic applications.
