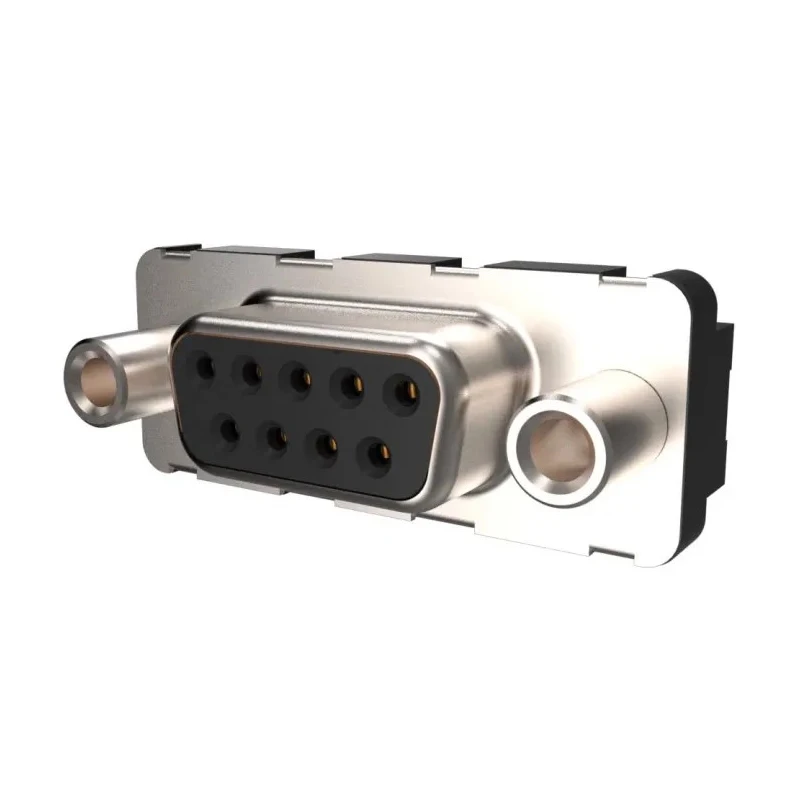

Amphenol Communications Solutions LD 9 Way Right Angle 2.74 mm Pitch Plug-in D-Sub Connector, Female, Screw LD09S33E4GX00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | LD09S33E4GX00LF |
| Mount Type | Plug-in |
| Contact Material | Phosphor Bronze |
| Series | LD |
| Mounting Hardware | Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- Features 9 contacts with a 2.74 mm pitch for precise connectivity.
- Right angle orientation with a plug-in mount type for space-efficient applications.
- Female connector gender with screw mounting hardware for secure installation.
- Contact plating is gold over nickel to ensure durability and superior conductivity.
- Rated for 5A current and 250V voltage for reliable power transmission.
- Contact material is phosphor bronze offering strength and resilience.
- Operating temperature range from -55°C to 105°C supports harsh environment usage.
- Termination type is solder for strong electrical connections.
Product Description
Amphenol Communications Solutions LD09S33E4GX00LF D-Sub Connector with 9 way right angle configuration and 2.74 mm pitch, suitable for a wide array of industrial and electronic applications.
This plug-in D-Sub Connector features female contacts with gold over nickel plating for optimal electrical performance and corrosion resistance. It is designed with a screw mounting hardware to ensure secure engagement in PCB or panel installations.
The connector supports a current rating of 5A and a voltage rating of 250V, making it ideal for applications in telecommunications, industrial control, consumer electronics, instrumentation, military, and medical sectors.
With a robust phosphor bronze contact material and solder termination type, the connector guarantees durability and reliable soldered connections. Operating temperature ranges from -55°C to 105°C, allowing stable performance under various environmental conditions.
Compliance with DIN 41652 and MIL-C-24308 ensures dimensional and performance standards adherence, supporting easy integration within existing systems. Its right-angle orientation allows compact board layouts and efficient space usage.
Features 9 pins with 2.74 mm pitch. Right angle plug-in mount type. Gold over nickel plated female contacts. Rated for 5A current and 250V voltage. Solder termination ensures reliable connections. Contact material: phosphor bronze.
Operating temperature: -55°C to 105°C. Mounting hardware included: screw type. Conforms to DIN 41652 and MIL-C-24308 standards. Suitable for industrial, telecommunications, and military applications. Explore more connectors and electronic components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 5A and a voltage of 250V, making it suitable for reliable power transmission in various applications.
The contacts have a pitch size of 2.74 mm, allowing for precise connectivity in compact layouts.
It features a solder termination type, ensuring strong and reliable electrical connections.
The contacts are made of phosphor bronze, providing strength and resilience for effective performance.
It includes screw mounting hardware, which ensures secure installation in PCB or panel setups.
It complies with DIN 41652 and MIL-C-24308 standards, ensuring adherence to dimensional and performance requirements.
This model features a right angle orientation, which allows for efficient space utilization in board layouts.
It has 9 contacts, designed for various industrial and electronic applications.
It has a female connector gender, which is standard for many D-Sub applications.
The connector is manufactured in India, ensuring compliance with international standards.
