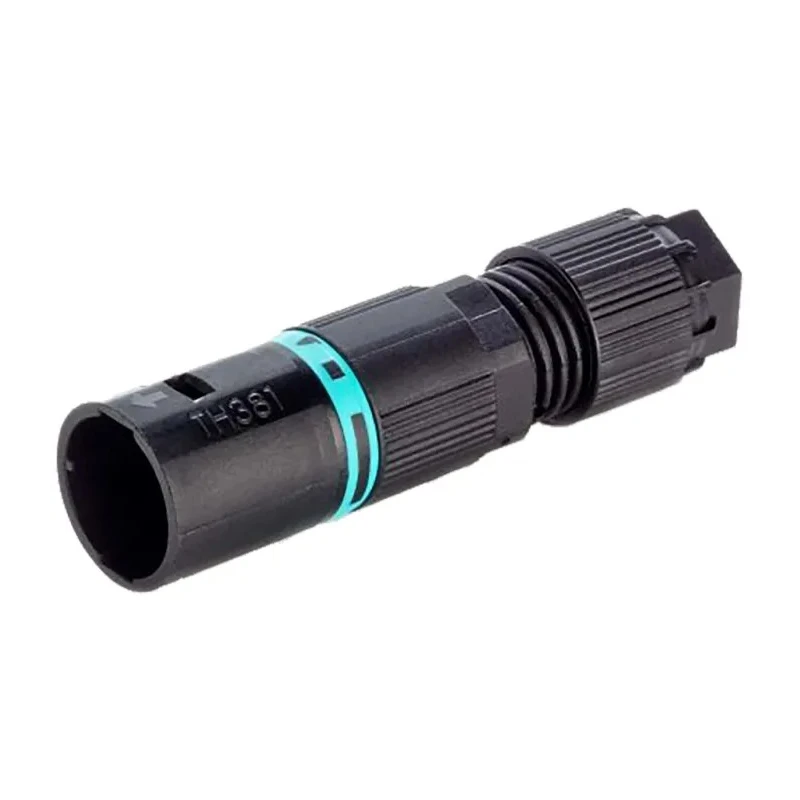

RS PRO Cable Tee Plug Male Screw 2-Pole 10A 1-Way IP68 400V RS PRO 136-9896
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 400V |
| Diameter | 14mm |
| Brand | RS PRO |
| Colour | Black |
| Model | 136-9896 |
| IP Rating | IP68 |
| Number Of Ways | 1 |
| Mount Type | Cable |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Screw |
| Sub Type | Tee Plug |
| Wire size | 7, 8mm |
| Pole Format | 2 |
| Contact Plating | Silver |
| Contact Gender | Male |
| Connector Gender | Male |
| Lighting Connector Current | 10A |
Key Features
- The connector features a miniature 14 mm diameter for compact applications.
- It offers IP68 waterproof protection for submersion up to 30 meters for 1 hour.
- IP69K rating provides resistance to high-pressure water jets up to 100 bar and 16 L/min flow.
- Push-pull coupling mechanism allows quick and easy mating with audible locking click.
- Strong retention force of up to 25 kg prevents accidental disconnections.
- Available in locking and quick release versions for safety and convenience.
- Constructed with brass contacts plated in silver for reliable conductivity and corrosion resistance.
- Designed for cable mounting with screw termination type for secure wire connections.
Product Description
RS PRO 136-9896 Cable Tee Plug Male Screw is a 2-pole lighting connector with a current rating of 10A and voltage rating of 400V. It features a compact 14 mm diameter design tailored for use in harsh and underwater lighting applications.
This RL381 series connector is certified to IP68 and IP69K standards, ensuring it is waterproof and dustproof, suitable for permanent submersion and protection against high-pressure jets of water.
The connector employs a secure push-pull coupling mechanism with a tactile audible click upon locking. It provides a strong retention force rated up to 25 kg, preventing accidental disconnection even under opposing forces.
Available as cable mount with screw termination, this connector uses brass contacts plated with silver to ensure efficient conductivity and protection against corrosion. The wire size supported is 7 to 8 mm diameter cables.
Applications include architectural lighting, street and underwater lighting installations, illumination for road signs and billboards, and class 2 electrical device connections, both indoor and outdoor.
The miniature 14 mm diameter allows installation in space-limited environments. IP68 rating ensures the connector withstands dust ingress and immersion up to 30 meters for 1 hour. IP69K rating enables resistance to high-pressure cleaning with water jets up to 100 bar.
Push-pull coupling provides quick mating and unmating with locking latch for safety. Strong retention force up to 25 kg secures the connection against mechanical stress. Locking versions can only be released with a screwdriver, enhancing safety in critical installations.
Brass contacts with silver plating provide durability and corrosion resistance. Cable mount termination with screws ensures reliable wire attachment. Designed for a range of harsh environmental lighting applications. Set includes one RS PRO Cable Tee Plug Male Screw connector as described. Country of origin is Italy. Product condition is new.
Explore more quality Lighting Connectors and power connectors from RS PRO in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 10A and a voltage rating of 400V.
It is rated IP68, which means it is waterproof and can withstand submersion up to 30 meters for 1 hour, as well as being dustproof.
The connector features a compact diameter of 14 mm, making it suitable for space-limited applications.
The contacts are made of brass and are plated with silver to ensure reliable conductivity and corrosion resistance.
The push-pull coupling mechanism allows for quick mating and unmating of the connector, providing an audible click to confirm a secure connection.
It uses a screw termination type for secure wire connections, accommodating wire sizes of 7 to 8 mm in diameter.
This model is suitable for architectural lighting, street and underwater lighting installations, and connections for class 2 electrical devices, both indoors and outdoors.
The connector provides a strong retention force rated up to 25 kg, preventing accidental disconnections even under opposing forces.
Yes, there are locking versions available that can only be released with a screwdriver, enhancing safety in critical installations.
The connector is manufactured in Italy.
This model is available in black.
The IP69K rating provides resistance to high-pressure water jets up to 100 bar, making it suitable for environments where high-pressure cleaning is required.
