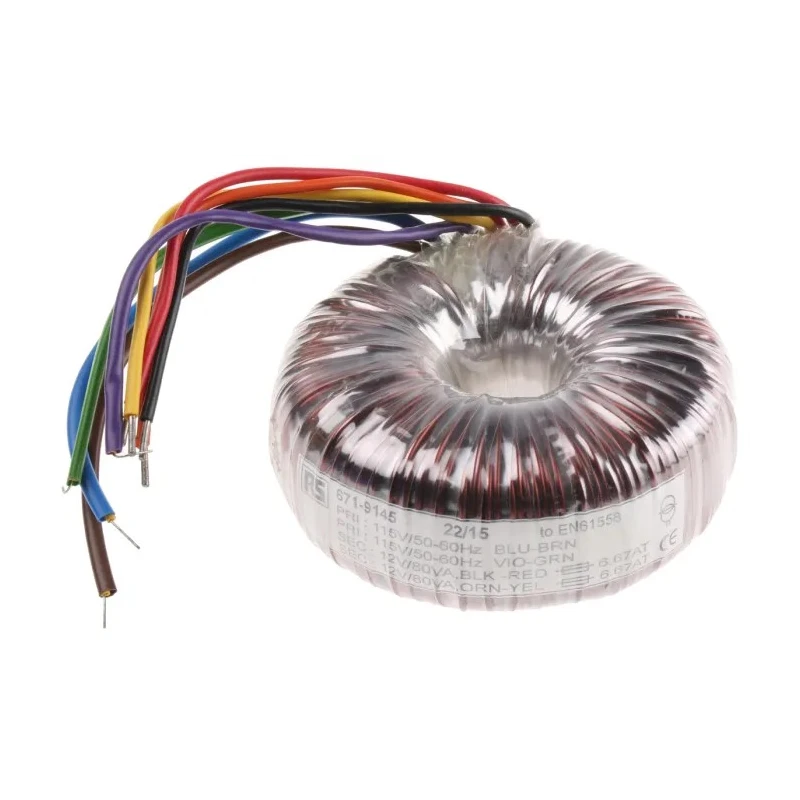

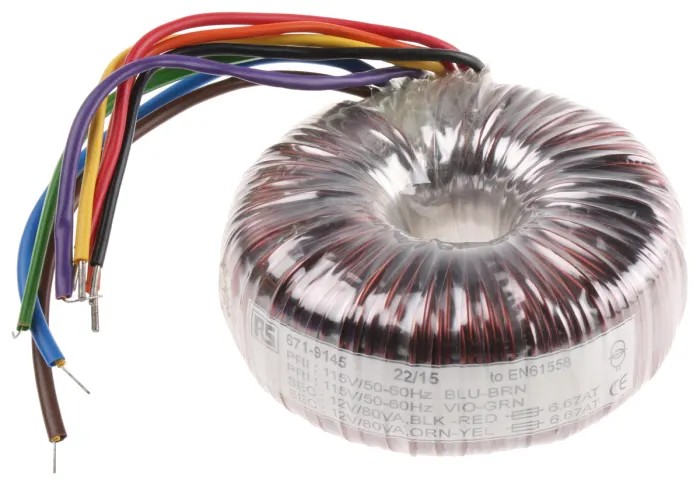

RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 160 VA, IEC 61558 Class II, RoHS, UL 506, EN 61558 Class 671-9145

RS PRO 671-9145 is a toroidal transformer featuring a 230 V ac primary voltage and dual 12 V ac secondary outputs, each capable of delivering a combined power rating of 160 VA. This transformer is designed with high quality open style toroidal construction, featuring dual 115 Vac 50/60 Hz primary windings and twin secondary windings that can be connected in series, parallel, or used independently based on the application requirements.

The compact and lightweight design provides significant advantages over traditional stacked lamination transformers, offering an extremely low level of radiated magnetic field and minimal induced noise or hum. Its efficiency is further enhanced by very low iron losses, making it ideal for precision electronic systems, power supplies, and industrial equipment.

Key safety and compliance features include adherence to international standards such as IEC 61558 Class II, RoHS, UL 506, EN 61558 Class II, and VDE0570 Class II, ensuring reliable and safe operation in demanding environments. The transformer is terminated with copper conductors for durability and consistent electrical contact.

Physical dimensions include a diameter of 109 mm and a height of 46 mm, with a total weight of 1.74 kg, facilitating easy installation in constrained spaces. Double insulated primary leads provide an added layer of safety to prevent electrical hazards.

High quality open wound toroidal transformer with dual 115 V primary. Two 12 V secondary outputs adaptable for various wiring configurations. Compact size with minimal magnetic radiation and noise. Certified to multiple international safety and environmental standards.

Copper conductor terminations ensure consistent connectivity. Lightweight and easy to install in industrial and electronic systems. Low iron loss for improved transformer efficiency. Suitable operating frequency range from 50 Hz to 60 Hz.

Double insulated primary leads for enhanced safety. Ideal for applications requiring stable voltage and current outputs.

This toroidal transformer is widely suitable for industrial, laboratory, electronic manufacturing, HVAC systems, water treatment plants, and commercial power supply configurations. Its design balance ensures efficient energy transfer with minimal interference, making it a reliable choice in precision and high performance applications.
