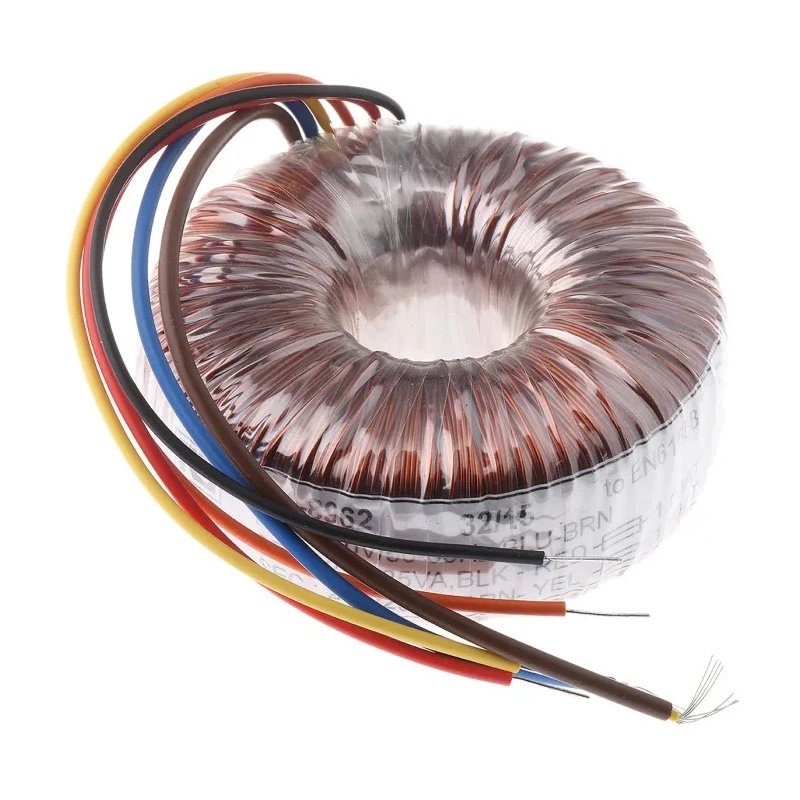

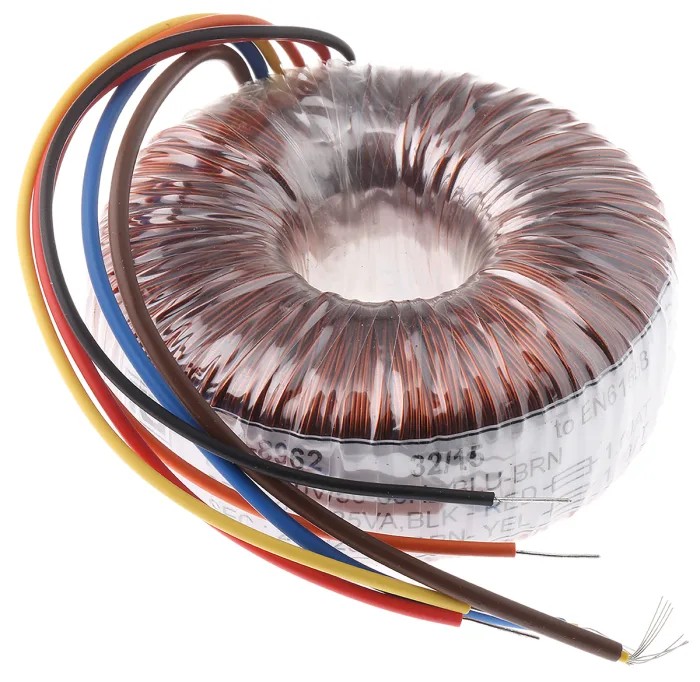

RS PRO 230 V ac 2 x 25 V ac Toroidal Transformer 2 Output 50 VA EN 61558 Class II VDE0570 Class II UL 506 IEC 61558 671-8962

RS PRO 671-8962 Toroidal Transformer operates at 230 V ac primary voltage with dual 2 x 25 V ac outputs, delivering 50 VA power with a 1 A secondary current rating. This transformer is engineered with a toroidal core design to provide efficient magnetic flux distribution while minimizing space requirements and noise emissions. The robust copper conductor termination wires ensure secure and reliable electrical connectivity.

Featuring a diameter of 80 mm and height of 33 mm, its compact build supports installation in tight industrial and commercial settings. The transformer efficiently functions between 50 Hz and 60 Hz frequencies, meeting worldwide power standards. Compliance with EN 61558 Class II, VDE0570 Class II, UL 506, and IEC 61558 Class II certifications highlights its suitability for sensitive electronic environments.

This product is particularly suited for audio equipment, medical devices, telecommunications infrastructures, industrial control systems, and various power supply units. Its low electromagnetic interference and reduced audible noise are advantageous for precision applications requiring minimal operational disturbances.

The transformer includes high electrical isolation and double insulated primary leads, ensuring user safety and device protection. Note that mounting hardware is not supplied and must be procured separately. Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework to avoid creating a dangerous shorted turn.

RS PRO Toroidal Transformers represent an efficient, reliable solution for modern power transformation challenges in diverse industrial and laboratory contexts. Compact and lightweight toroidal core design for space-efficient installations.

Dual 2 x 25 V ac outputs with 1 A secondary current capacity. Meets multiple international safety and performance standards. Low electromagnetic interference and minimal noise generation. Robust copper conductor termination wire ensures reliable connections.

Suitable for use in medical, audio, telecom, and industrial applications. High electrical isolation and double insulated leads for enhanced safety. Operates within 50 Hz to 60 Hz frequency range for versatile compatibility.

Compact dimensions of 80 mm diameter and 33 mm height. Explore more transformers and related components in the Electronics & Electricals section at EnvMart for comprehensive solutions addressing your power supply needs.
