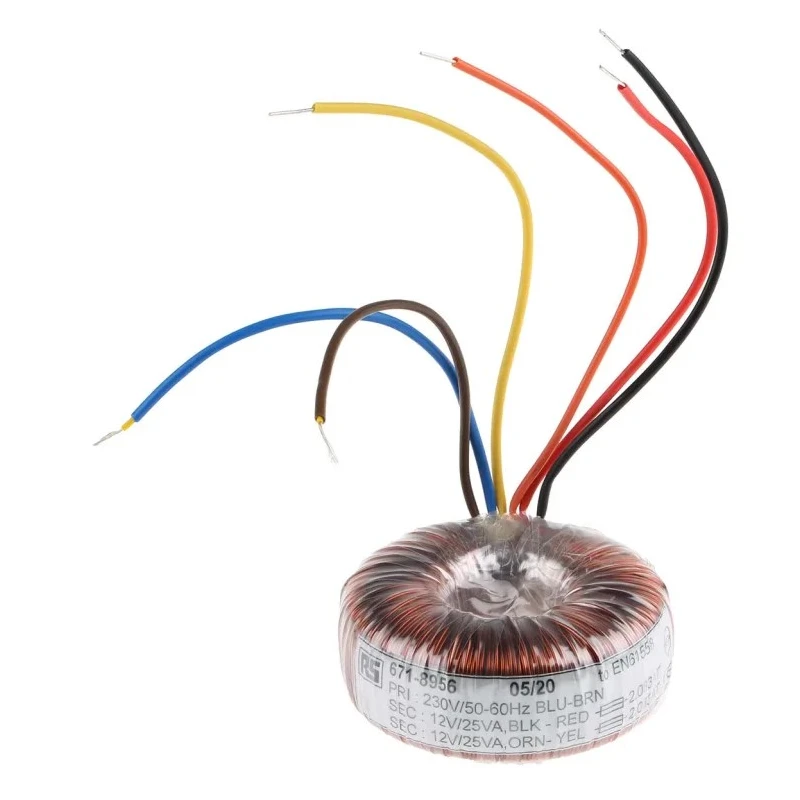

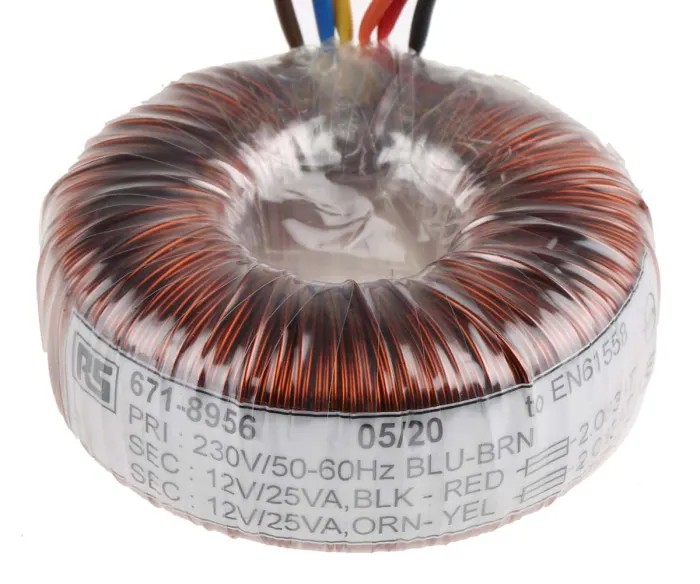

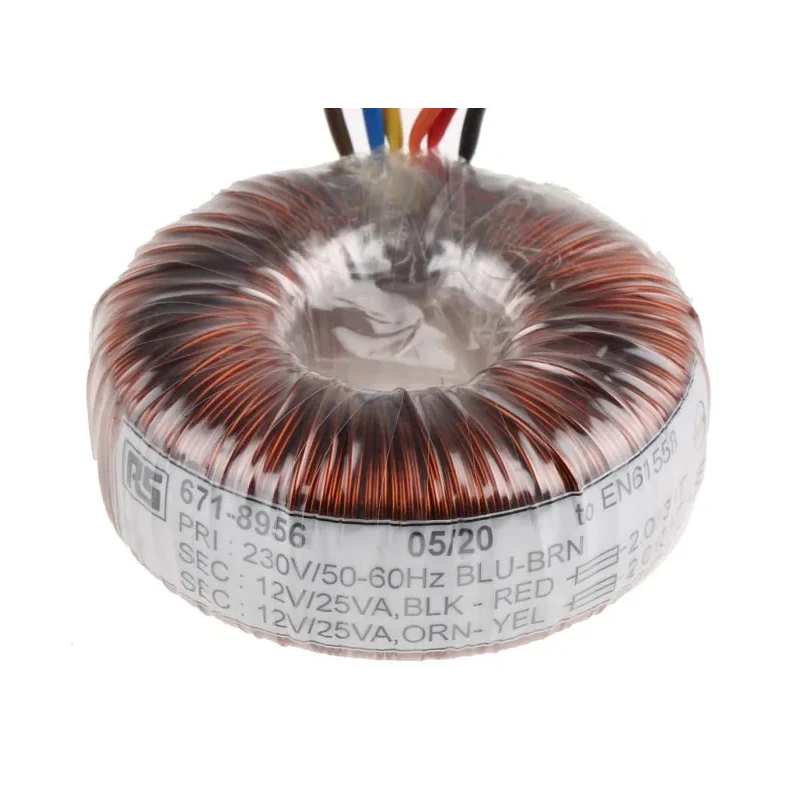

RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 50 VA 671-8956

RS PRO 671-8956 Toroidal Transformer is a high-efficiency power transformer with a primary voltage rating of 230 V AC and dual 12 V AC secondary outputs, each capable of delivering a current of 2.083 A. This toroidal transformer features a compact and lightweight core with an 80 mm diameter and 33 mm height, ensuring space-saving installation and reduced overall device weight.

The transformer core is engineered to provide optimal magnetic flux distribution, resulting in superior electrical efficiency and minimal energy loss. It operates with reduced electromagnetic interference (EMI) and extremely low audible noise, making it ideal for use in sensitive electronic equipment environments.

Constructed with copper conductor termination wires and double insulated primary leads, this transformer ensures outstanding electrical isolation and safe operation. It supports a minimum operating frequency of 50 Hz and a maximum operating frequency of 60 Hz, adhering to common industrial power standards.

This Toroidal Transformer is suitable for a broad range of applications including audio equipment, medical devices, telecommunication systems, industrial control panels, and various power supply solutions requiring two isolated outputs.

Compact toroidal core design ensures efficient magnetic flux distribution. Low electromagnetic interference (EMI) for sensitive electronic systems. Reduced audible noise during operation. Double insulated primary leads provide enhanced electrical isolation.

Copper conductor termination wires for secure connectivity. Operates within 50 Hz to 60 Hz frequency range. Compact dimensions with 80 mm diameter and 33 mm height. Lightweight with a gross weight of 740 grams. Suitable for audio equipment, medical devices, telecommunications, and industrial control systems.

Designed for 2 outputs with secondary current of 2.083 A.

Note that mounting hardware is not supplied and needs to be purchased separately. Adhere to safety precautions such as avoiding simultaneous contact of both ends of the fixing bolt with the metal chassis to prevent hazardous shorted turns.
