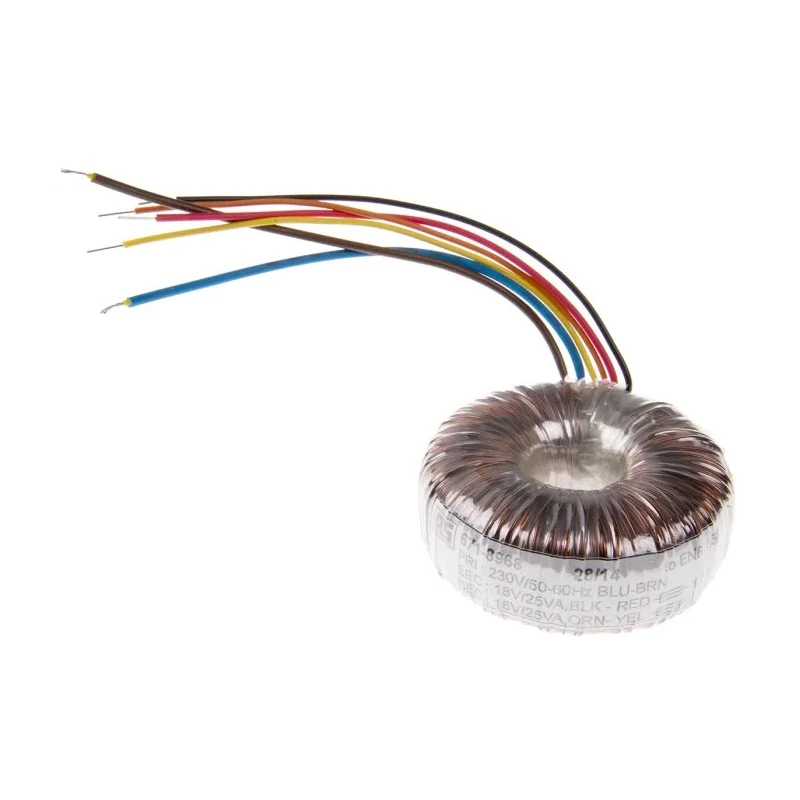

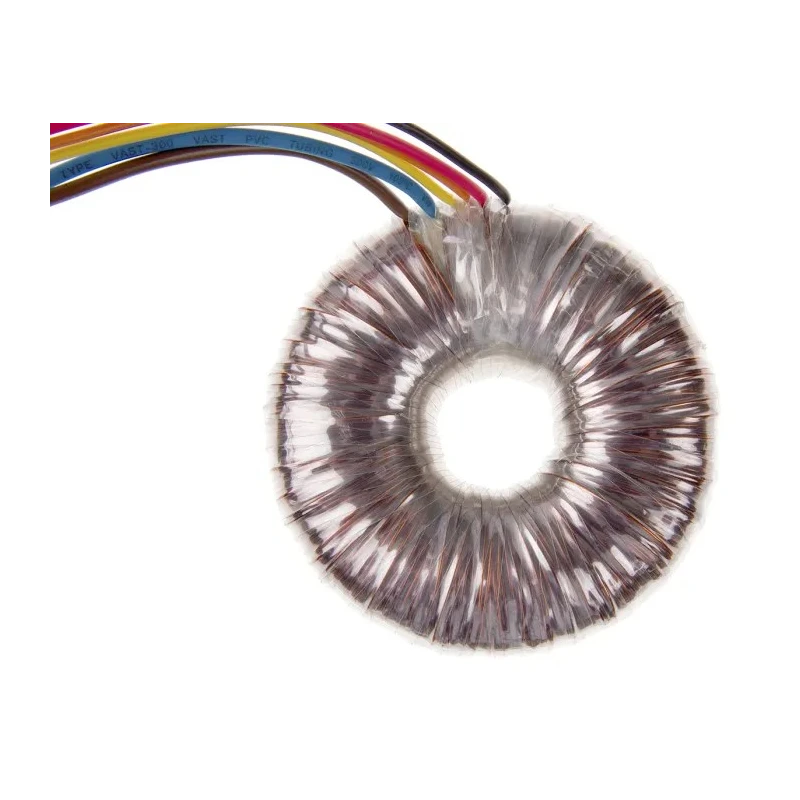

RS PRO 230 V ac Toroidal Transformer 2 x 18 V ac Output 50 VA Copper Conductor Termination Wire 671-8968

RS PRO 671-8968 Toroidal Transformer is engineered for superior magnetic flux distribution and efficient power conversion in electronic systems. Operating at a primary voltage of 230 V ac, it features two secondary outputs each delivering 18 V ac at 1.389 A current, with a total power rating of 50 VA.

This transformer boasts a compact size with a diameter of 80 mm and a height of 33 mm, optimized for space-constrained environments. Its copper conductor termination wire allows secure and durable connections, while double insulated primary leads provide enhanced electrical safety.

Designed to minimize electromagnetic interference and audible noise, this model is ideal for sensitive applications such as audio equipment, medical devices, telecommunications, industrial control systems, and power supplies. The unit meets stringent international standards including VDE0570 Class II, EN 61558 Class II, RoHS compliance, UL 506, and IEC 61558 Class II, ensuring reliable and safe operation.

With a lightweight structure of 740 g and maximum operating frequency of 60 Hz, the RS PRO Toroidal Transformer combines efficiency with ease of installation. The low electromagnetic interference supports stable and noise-free performance, critical for professional and industrial environments.

Please note that mounting hardware is not supplied with the product and should be procured separately. Caution must be exercised to avoid 'shorted-turn' conditions by ensuring that both ends of the fixing bolt do not simultaneously contact the metal chassis.

Operates efficiently at primary voltage of 230 V ac with two 18 V ac secondary outputs. Compact diameter of 80 mm and height of 33 mm for space-saving installation. Copper conductor termination wire ensures reliable connection.

Low electromagnetic interference (EMI) and reduced audible noise enhance sensitive electronic applications. Meets multiple standards including VDE0570 Class II, EN 61558 Class II, RoHS, UL 506, and IEC 61558 Class II. Dual outputs deliver a secondary current of 1.389 A suitable for various power supplies.

Designed for industrial, medical, telecommunications, and audio equipment applications. Maximum operating frequency of 60 Hz with minimum frequency of 50 Hz. Lightweight 740 g transformer offers easy handling and installation.

Double insulated primary leads ensure safety during operation.

RS PRO products are trusted worldwide for their quality and reliability. Explore our comprehensive catalog of Toroidal Transformers and other electronic components on EnvMart for your industrial and commercial electronic needs.
