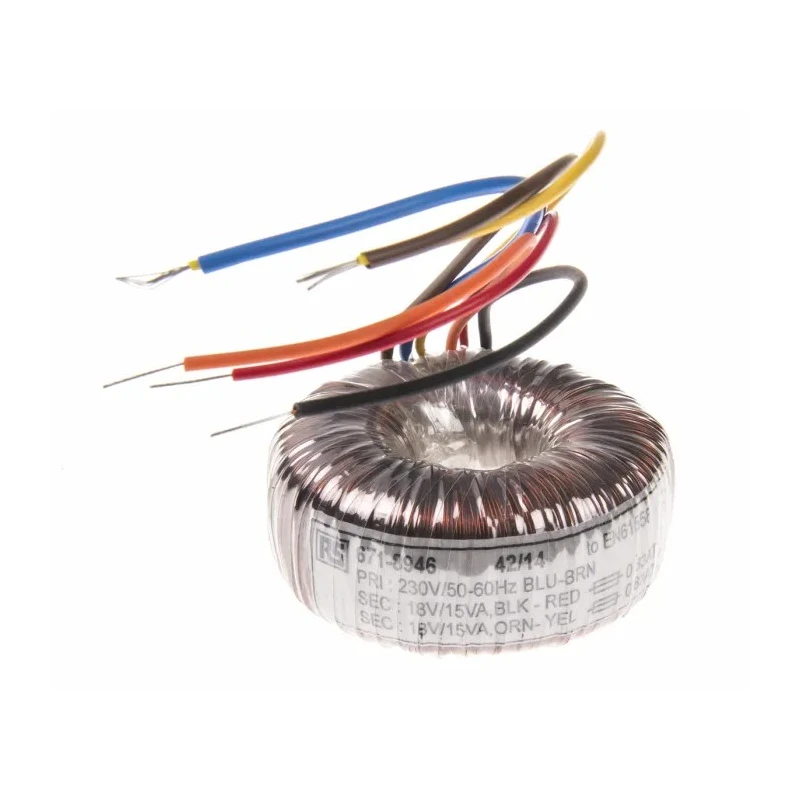

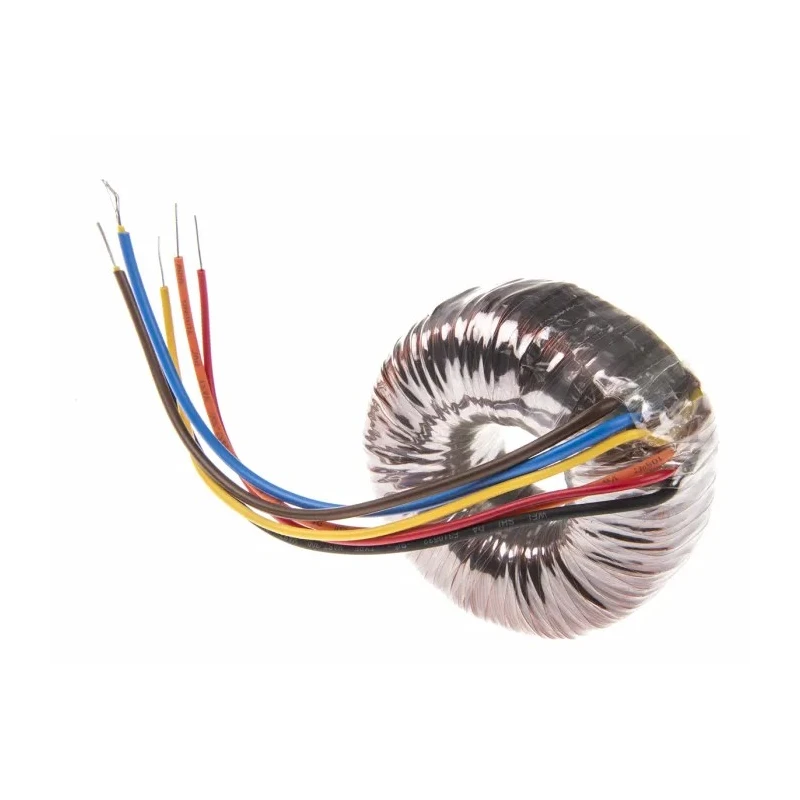

RS PRO 230 V ac 2 x 18 V ac Toroidal Transformer 2 Output 30 VA, UL 506, IEC 61558 Class II, VDE0570 Class II 671-8946

RS PRO 671-8946 Toroidal Transformer delivers efficient magnetic flux distribution with a dual output configuration of 2 x 18 V ac and a rated power of 30 VA. It operates at a primary voltage of 230 V ac and frequencies between 50 and 60 Hz, suitable for various industrial and electronic applications.

This transformer features a toroidal core design renowned for its compact size, reduced audible noise, and superior energy efficiency. Its lightweight construction simplifies installation and reduces system footprint. Copper conductor termination wires ensure reliable electrical connections.

The product complies with essential safety standards including UL 506, IEC 61558 Class II, VDE0570 Class II, and RoHS directives, guaranteeing performance and environmental safety.

Applications include audio electronic systems, medical devices requiring low noise power supply, telecommunications infrastructure, and industrial control apparatus. The double insulated primary leads provide excellent electrical isolation, minimizing risk and enhancing durability.

The transformer weighs approximately 503 grams, with a diameter of 70 mm and height of 32 mm, making it suitable for compact system integration.

Installation hardware is not included but can be acquired separately to facilitate mounting. Adherence to safety warnings regarding mounting bolt contact prevents hazardous conditions.

The transformer operates efficiently over a frequency range from 50 to 60 Hz. Low electromagnetic interference ensures suitability for sensitive electronic environments. High electrical isolation with double insulated leads promotes safe operation.

Optimized design allows for minimal audible noise during operation. The durable toroidal core design enhances longevity in industrial settings. RoHS compliance affirms the product's environmental standards. Compact 70 mm diameter and 32 mm height enable installation in restricted spaces.

Power rating of 30 VA supports a variety of mid-load electronic devices. Browse EnvMart’s extensive collection of transformers for advanced industrial and electronic solutions.
