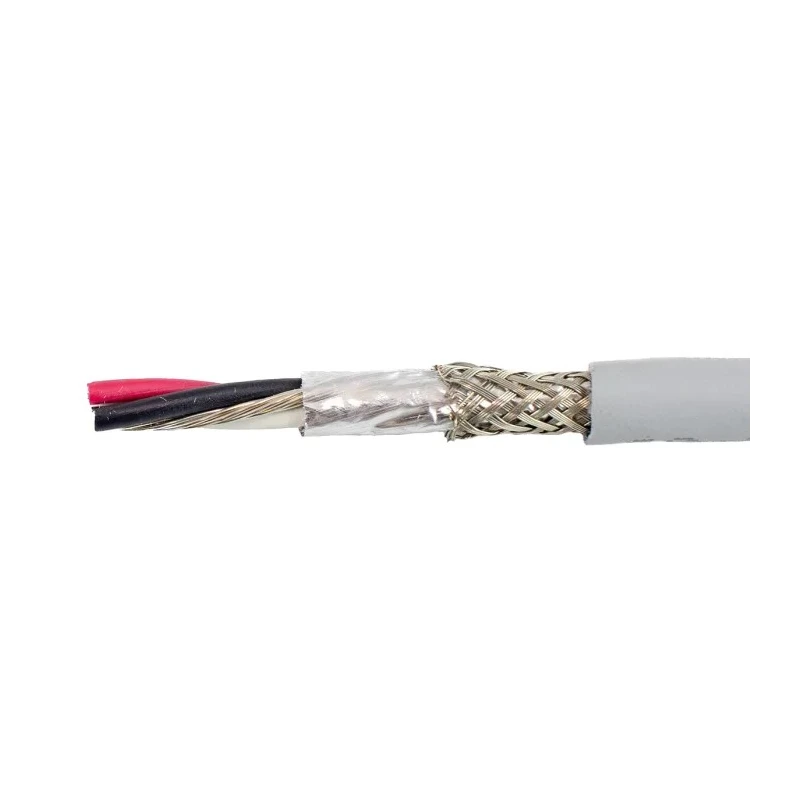

Alpha Wire Ecogen Ecocable Mini Screened Control Cable 6 Cores 0.24mm² 24 AWG 305 m Grey Modified Polyphenylene 78126 SL001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78126 SL001 |
| Cable Length | 305m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.96mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.156 inch (3.96 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.127mm |
| Size of Strands | 0.127mm |
| Cable CSA | 0.24mm² |
| Conductors | 6, Black, Brown, Red, Orange, Yellow, Green |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/36 |
Key Features
- This cable offers a nominal diameter of 3.96 mm and length of 305 meters.
- It is rated for 300V voltage and operates reliably between -40°C and 80°C.
- The jacket material provides zero halogen halogen-free fire behavior and resists EMI with foil shielding.
- Stranded with 19 strands of 0.127mm diameter wire for flexibility and durability.
- The cable is fully recyclable due to its mPPE insulation and jacket construction.
- Complies with CE, CSA, and UL standards with no hazardous area certification.
- Ideal for industrial automation, communication, telecommunication, and electronic circuit applications.
- Features a compact, lightweight design that is smaller and lighter than PVC equivalents.
Product Description
Alpha Wire 78126 SL001 Ecogen Ecocable Mini screened control cable is a high-quality, halogen-free electrical cable designed for industrial and commercial applications. It features six tin copper conductor cores of 0.24mm² cross-sectional area (24 AWG), housed within a grey modified polyphenylene ether (mPPE) jacket. The cable has a nominal diameter of 3.96 mm and is 305 meters in length, offering excellent flexibility with 19 strands per core conductor.
This cable supports a voltage rating of 300 V and operates effectively across a wide temperature range from -40°C to 80°C. Its mPPE jacket and insulation ensure zero halogen release, making it a safer choice for installations requiring strict fire safety measures. The foil shielded design consisting of aluminum/polyester and tinned copper wire provides superior protection against electromagnetic interference, ensuring clean and reliable signal transmission.

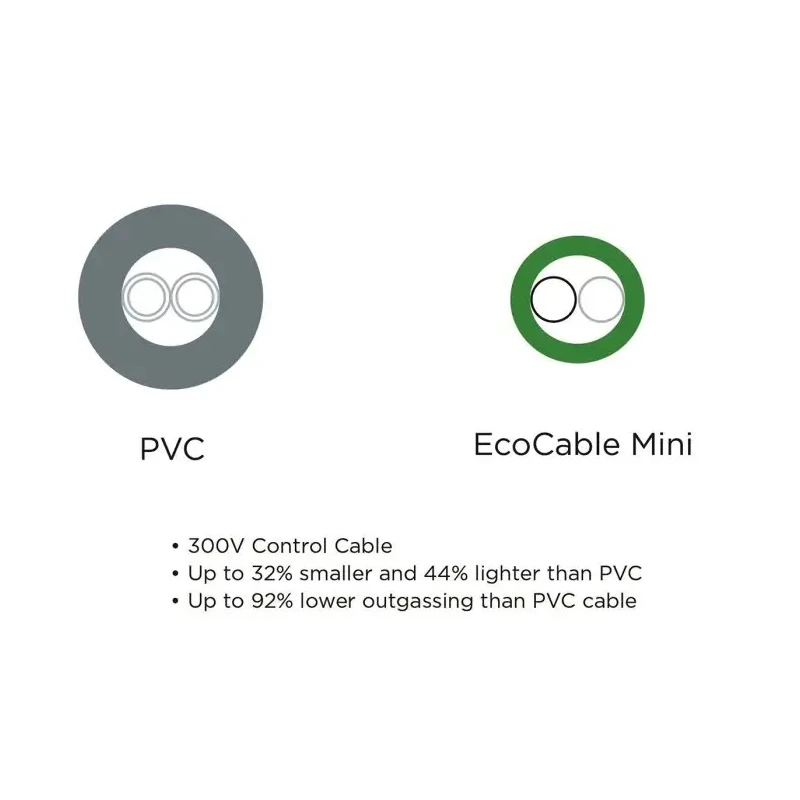

The ecological benefits of this EcoCable Mini include a significantly lighter and thinner profile compared to PVC equivalents, with a specific gravity of 1.03 and 100% recyclability. This makes it suited for environmentally conscious projects and applications with space and weight constraints.
Typical uses include communication systems such as radio transmitters, electronic circuits, telecommunication networks, automation systems, studios, and NFPA 79 compliant industrial machinery setups. The robust construction guarantees longevity and reliability in harsh industrial environments.
This cable is RoHS, REACH, WEEE, ISO 10993-5 compliant as well as UL AWM 21460, UL VW-1, and CSA I A/B FT1 approved. The screened foil shield offers moderate EMI resistance suitable for sensitive electronic communication.
For reliable and efficient Control Cable solutions, browse Alpha Wire products and industrial cables categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for a voltage of 300V.
It operates reliably between -40°C and 80°C.
This model features six cores.
The nominal diameter of the cable is 3.96 mm.
The jacket is made from modified polyphenylene ether (mPPE).
It features a foil shield made from aluminum/polyester and tinned copper wire for protection against electromagnetic interference.
The conductors have a cross-sectional area of 0.24 mm² (24 AWG).
It complies with CE, CSA, and UL standards.
The cable is 305 meters long.
Each conductor is stranded with 19 strands of 0.127 mm diameter wire.
Yes, the cable is fully recyclable due to its mPPE insulation and jacket construction.
It is suitable for industrial automation, communication systems, telecommunication, and electronic circuit applications.
