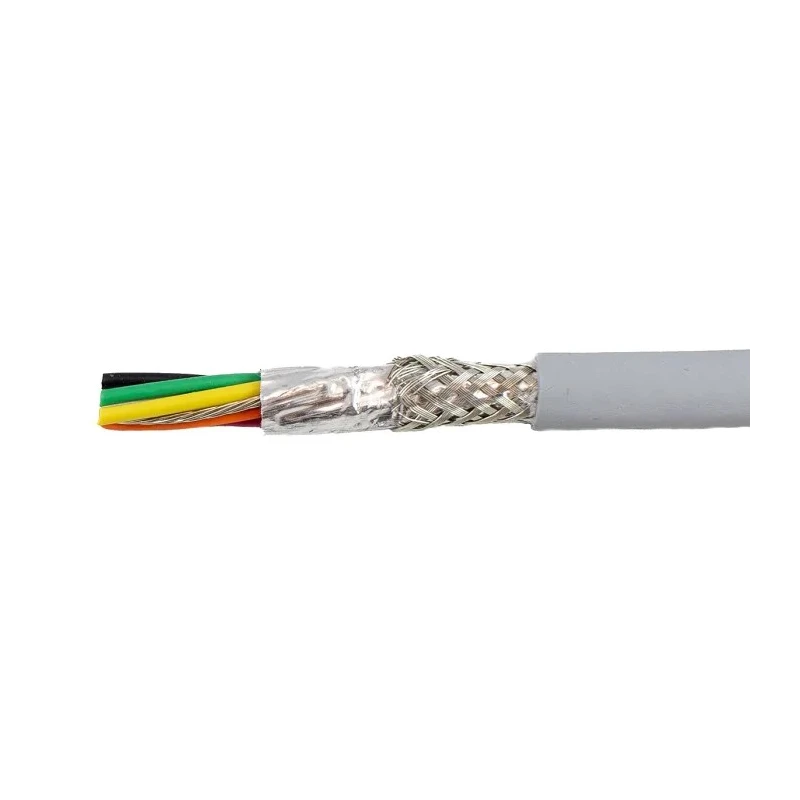

Alpha Wire Ecogen Ecocable Mini Control Cable, 6 Cores, 0.09mm² 28 AWG, Screened, 300 V, 30 m Length, Grey 78306 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78306 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.94mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.155 inch (3.94 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CSA, CE, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.079mm |
| Size of Strands | 0.079mm |
| Cable CSA | 0.09mm² |
| Conductors | 6, Black, Brown, Red, Orange, Yellow, Green |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- The cable is 30 meters in length, suitable for various electrical and automation uses.
- Stranded conductors improve flexibility and durability.
- Screened with Supra-Shield foil and braid for excellent EMI performance.
- The jacket is halogen-free and made from mPPE material, ensuring low outgassing and environmental safety.
- The cable operates safely in temperatures from -40°C to +80°C.
- Complies with CSA, CE, and UL standards for quality assurance.
- The cable is lightweight and smaller than PVC equivalents due to its mPPE insulation.
- Designed for industrial, telecommunications, and automation applications requiring high signal integrity.
Product Description
Alpha Wire 78306 SL005 Ecogen Ecocable Mini Control Cable is a premium 300 V screened control cable with six cores of 0.09mm² (28 AWG) tin copper stranded conductors, sheathed with a durable grey modified polyphenylene ether (mPPE) jacket. This model offers exceptional electrical performance and environmental benefits.
The cable measures 30 meters in length and has a nominal diameter of 3.94 mm, featuring a jacket thickness of 0.38 mm and insulation thickness of 0.18 mm. The Supra-Shield foil combined with tinned copper braid shielding ensures excellent protection against electromagnetic interference (EMI), making it ideal for sensitive communication and control signals.
The mPPE jacket material is fully recyclable, halogen-free, and allows the cable to be thinner and lighter compared to traditional materials, mitigating installation weight and space concerns. Its operating temperature range spans from -40°C to +80°C, suitable for harsh industrial environments.
Compliant with CSA, CE, and UL standards, this cable is designed for rigorous applications including industrial automation, radio transmission, telecommunication circuits, and studios. It also meets NFPA 79 guidelines, enhancing safety in electrical and fire hazard protection for industrial machinery.
The cable offers low-level outgassing and is environmentally responsible. Stranded conductor construction enhances mechanical flexibility and longevity. Screening provides superior electromagnetic compatibility (EMC) shielding.
The grey mPPE jacket provides mechanical resilience and chemical resistance. Halogen-free materials improve safety in case of fire. Compact design enables use in space-constrained applications. Suitable for communication, automation, and control signal transmission.
Alpha Wire's Ecogen Ecocable Mini range is ideal for industrial, laboratory, telecommunications, and HVAC environments where high-quality control cables are essential. This model balances performance with environmental responsibility, providing reliable long-term operation in demanding conditions.
Browse our extensive range of Control Cables for diverse industrial applications and ensure optimum signal integrity with Alpha Wire solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is +80°C.
This model has a length of 30 meters.
It features six cores.
The nominal diameter of the cable is 3.94 mm.
The cable is sheathed with a modified polyphenylene ether (mPPE) jacket.
Yes, this model is screened with Supra-Shield foil and braid for excellent EMI performance.
The conductors are made of tin copper wire.
It complies with CSA, CE, and UL standards.
The size of the strands in the conductors is 0.079 mm.
The insulation thickness is 0.18 mm.
This model is designed for industrial automation, telecommunications, and control signal transmission applications.
The jacket is halogen-free, improving safety in case of fire.
