Lovato Electric Motor Protection Circuit Breaker SM1X, 690V Operating Voltage, IP20, -20°C to 60°C SM1X

Lovato Electric SM1X Motor Protection Circuit Breaker is engineered for motor protection in electrical automation and control gear systems. Designed to operate at a supply voltage of 690V, this circuit breaker offers reliable motor safeguarding within an operating temperature range from -20°C to +60°C.

Featuring a compact form factor, with an overall length of 18mm, width of 80mm, and depth of 90mm, the device fits easily into control panels demanding space efficiency. The IP20 rating ensures protection against foreign solid objects larger than 12 mm, making it suitable for typical industrial indoor environments.

This motor protection circuit breaker complies with multiple standards including IEC/EN 60947-1, EAC, cULus, CSA, UL 508, and meets RoHS requirements, confirming its electrical safety, reliability, and environmental compliance.

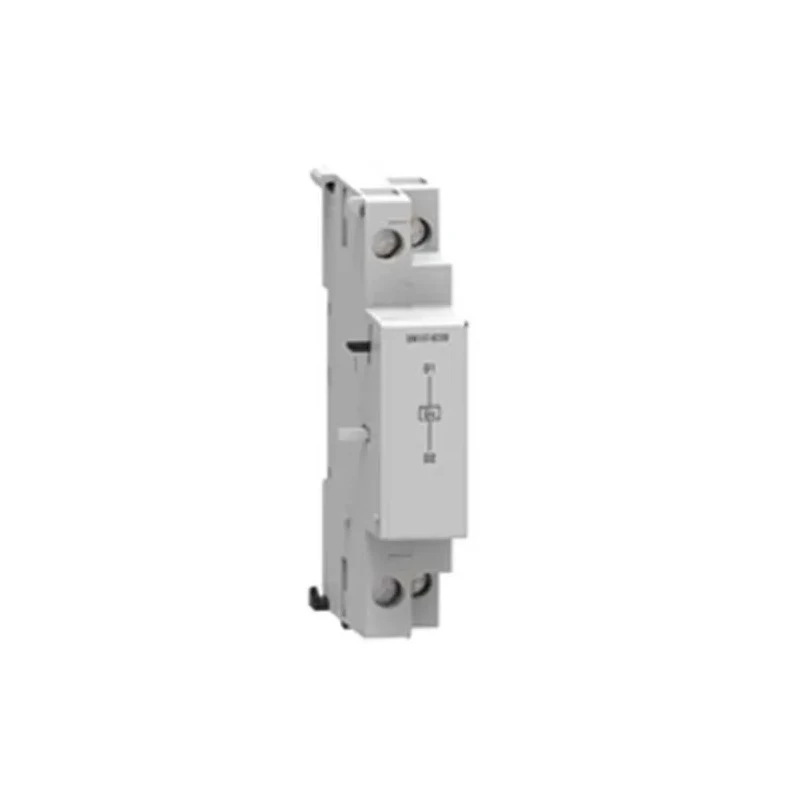

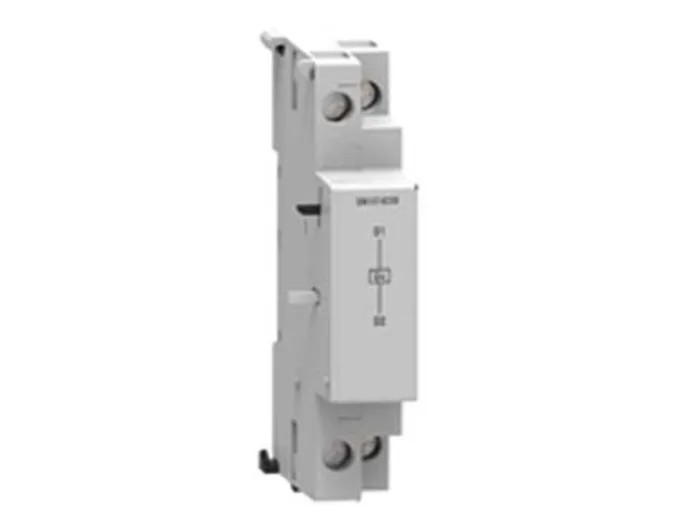

The SM1 undervoltage trip release mechanism connects conveniently to the left side of the SM1 breaker, with drop-out voltage between 0.35 to 0.7 Us and pick-up voltage 0.85 to 1.1 Us. This feature offers added control and safety in motor circuit applications.

The conductor cross section supports wiring sizes of 18 to 14 AWG, ensuring flexible installation options according to wiring standards.

Lovato Electric SM1X is part of the SM1X series, built for industrial motor protection use cases in manufacturing plants, HVAC systems, water treatment facilities, and commercial electrical infrastructures. It is an essential component for maintaining motor operational safety by preventing overloads, short circuits, and undervoltage situations.

Operates reliably within temperature span of -20 degrees Celsius minimum and 60 degrees Celsius maximum. Compact dimensions with 18mm length, 80mm width, and 90mm depth for easy installation. Rated IP20 for protection against solid objects larger than 12mm and no liquid ingress protection.

Complies with IEC/EN 60947-1, EAC, cULus, CSA, UL 508 standards and RoHS directives. Includes SM1 undervoltage trip release suitable for connection on the left side of SM1 breaker. Conductor cross section compatibility is 18/14 AWG ensuring secure wiring connections.

Ideal for motor protection applications in industrial and commercial electrical setups. Series SM1X assures consistent performance adhering to Lovato Electric quality standards. Discover more Motor Protection Circuit Breakers and industrial control gear components at EnvMart to equip your electrical projects with trusted quality and safety.
