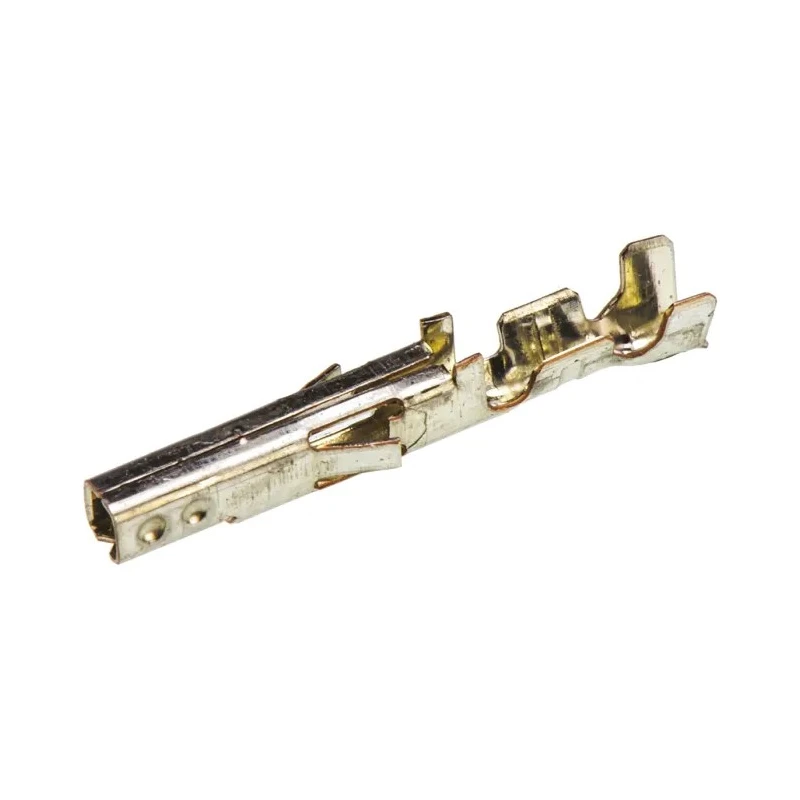

Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings, 28 AWG 39-00-0066

Free Delivery in India | Lowest Global Shipping Charges

Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings, 28 AWG 39-00-0066

Name: Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings, 28 AWG 39-00-0066
Brand: Molex
SKU: 206915
Price: 0.19 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	9A
Gender	Female
Contact Material	Phosphor Bronze
Series	5556
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10
Molex 5558 Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand	Molex

Key Features

Designed for wire sizes between 28 AWG minimum and 22 AWG maximum.
Supports a current rating of 9 amperes for efficient power transmission.
Constructed with phosphor bronze contact material and tin plating for corrosion resistance.
Features multiple points of contact and locking tangs for enhanced connection reliability.
Operates reliably in temperatures ranging from -40°C to 85°C.
Termination by crimping ensures solid mechanical and electrical connection.
Ideal for automotive, industrial, medical, communications, and consumer electronics applications.
Manufactured in the United States ensuring high-quality standards.

Product Description

Molex 39-00-0066 female crimp terminal is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. This crimp contact terminal accommodates wire sizes ranging from 28 AWG minimum to 22 AWG maximum, supporting a current rating of up to 9 amperes.

Featuring a contact material made of phosphor bronze with tin plating, this terminal provides excellent corrosion resistance and electrical conductivity. The multiple points of contact and locking tangs secure the terminal firmly within the connector housing, ensuring reliable and consistent electrical connections even under demanding conditions.

Its termination is accomplished by crimping, guaranteeing both mechanical durability and electrical integrity. Operating temperature ranges from -40°C to 85°C, making it suitable for varied industrial and automotive environments.

This series is widely used in applications such as automotive, industrial automation, medical equipment, communications, networking, and consumer electronics. The product is manufactured in the United States, reflecting adherence to quality and regulatory standards.

Wire size range: 28 AWG min to 22 AWG max. Current rating: 9A. Contact plating: Tin. Contact material: Phosphor Bronze. Operating temperature: -40°C to 85°C. Termination type: Crimp. Reliable multiple contact points and locking tangs.

Applications include automotive, industrial, medical, and communications. Explore our extensive range of electronic and power connectors for your industrial and commercial needs at EnvMart.
