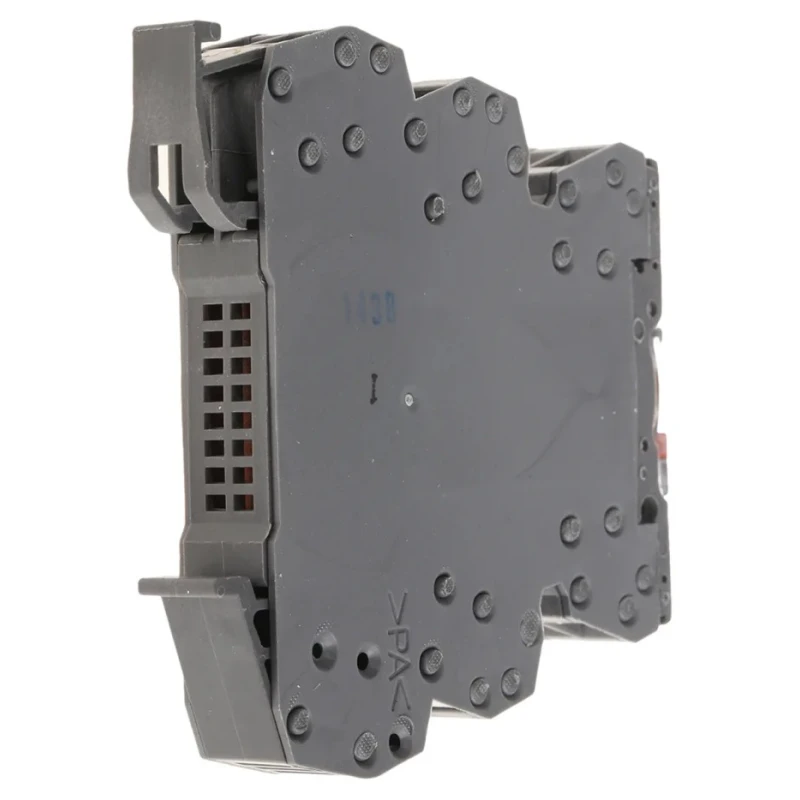

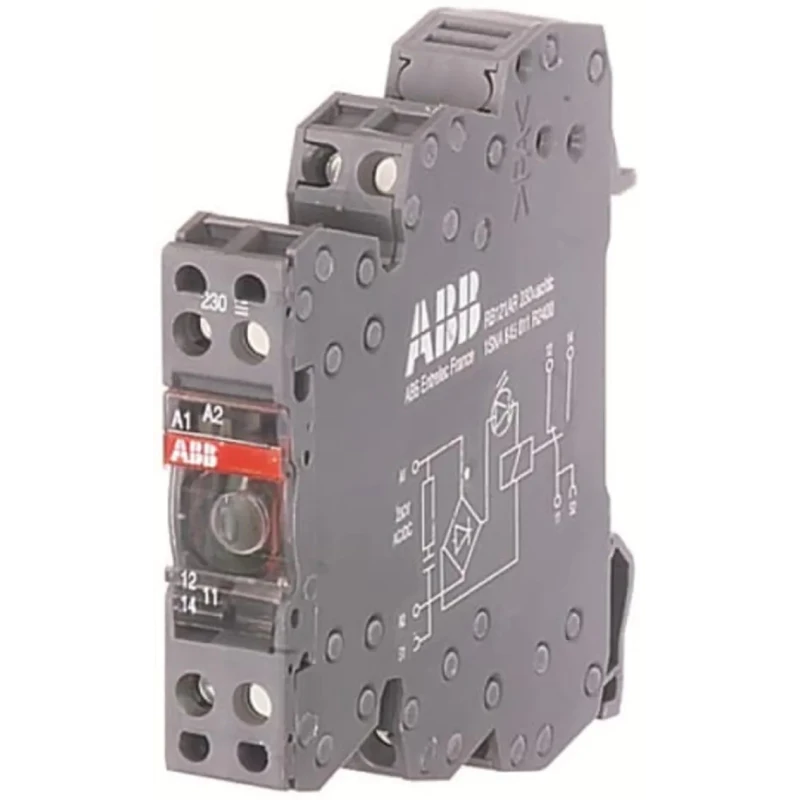

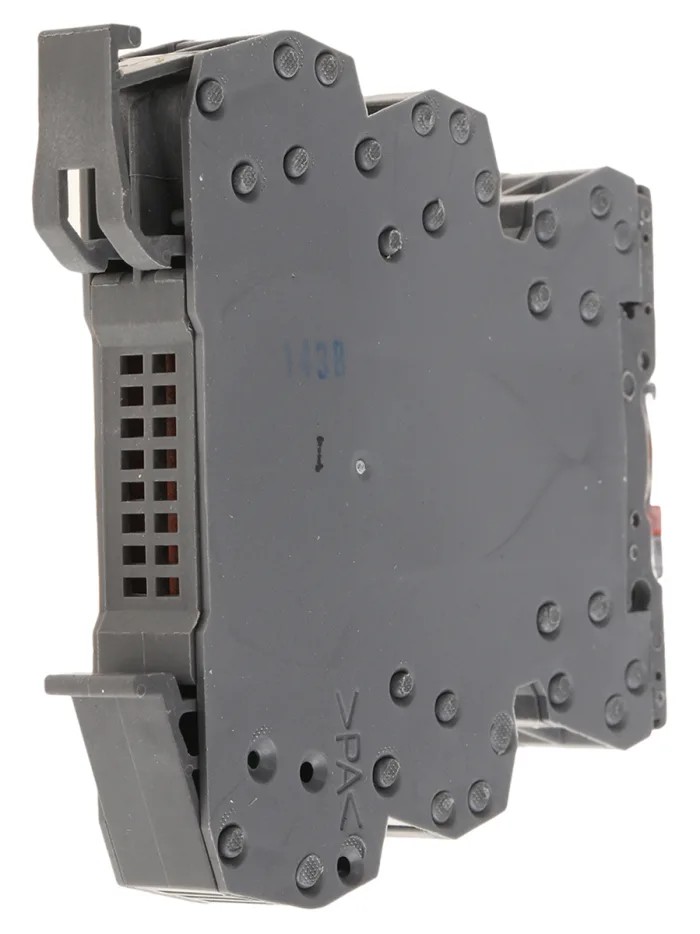

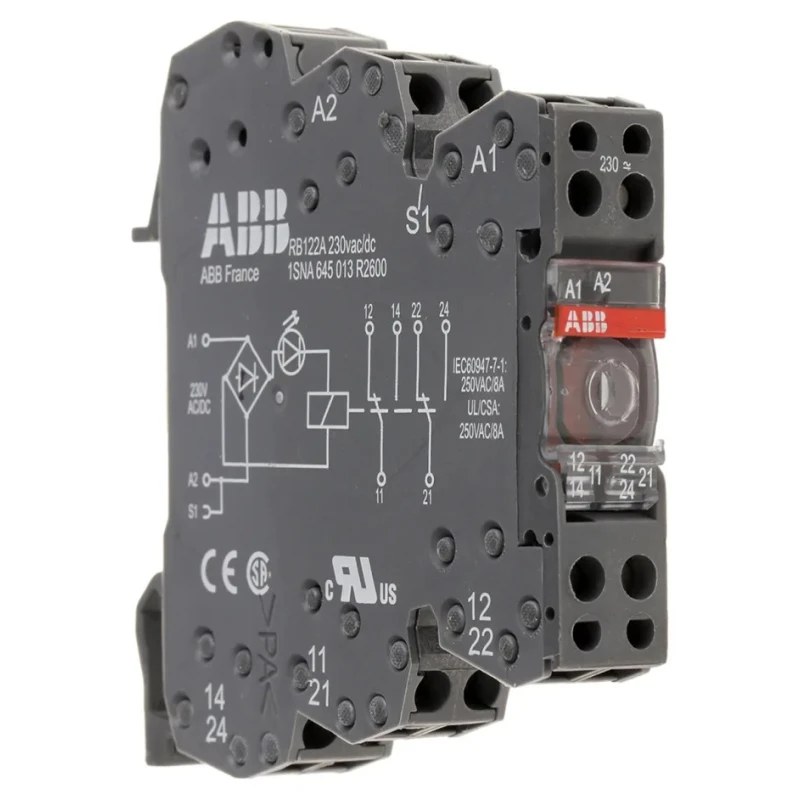

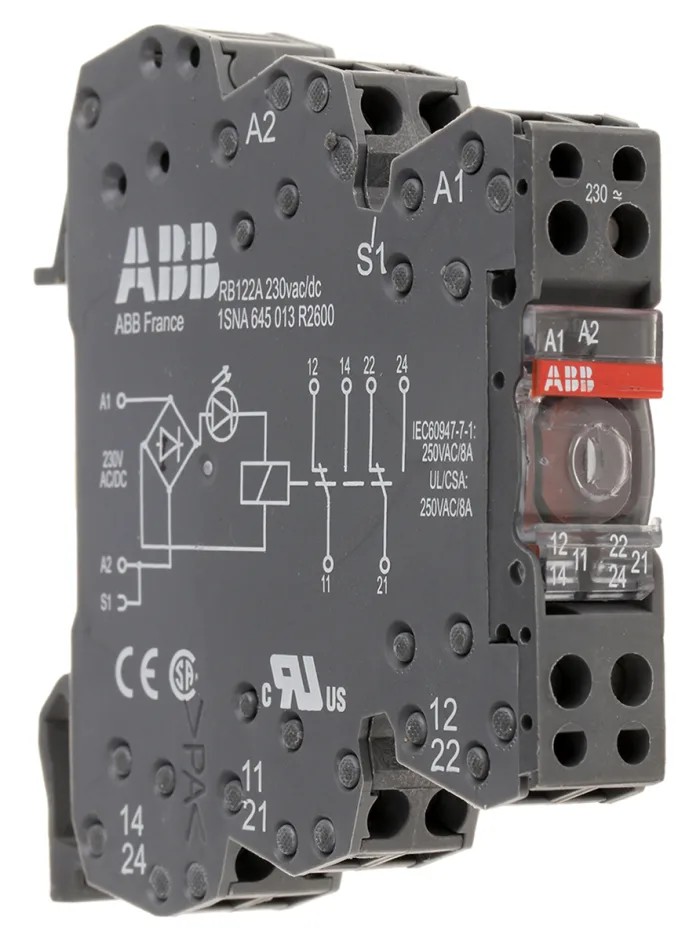

ABB R600 Series Electromechanical Interface Relay, DIN Rail Mount, 230V AC/DC Coil, DPDT 1SNA645013R2600 RB122G-230VUC
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | ABB |
| Height | 75mm |
| Length | 70mm |
| Model | 1SNA645013R2600 RB122G-230VUC |
| Mount Type | DIN Rail |
| Series | R600 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Switching Current | 8A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Voltage | 230V ac/dc |
| Coil Current | 5mA |
| Switching DC Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Finder 38 Series Interface Relay, DIN Rail, 230V ac/dc Coil, DPDTBrand | Finder |
| ABB Interface Relay Module, DIN Rail Mount, SPDT, 8A LoadBrand | ABB |
| ABB R600 Series Interface Relay, DIN Rail, 110V ac/dc Coil, DPDT, 5mABrand | ABB |
Key Features
- Operates at a coil voltage of 230V AC/DC with a coil current of 5mA.
- Equipped with a double-pole double-throw (DPDT) contact configuration supporting up to 8A switching current.
- Features screw terminal type for reliable electrical connections.
- Designed for operation in temperatures from -20°C up to 70°C.
- Compact size with dimensions 70mm length and 75mm height, weight approximately 40g.
- Includes built-in LED indicator for easy status monitoring.
- Snap-on DIN rail mounting allows simple and tool-free installation.
- IP20 rated enclosure offers finger-safe protection against objects larger than 12mm.
Product Description
ABB 1SNA645013R2600 RB122G-230VUC R600 Series Electromechanical Interface Relay features a DIN Rail mounting style with a coil voltage rating of 230V AC/DC and a coil current of 5mA. This DPDT contact relay provides a switching current capacity of 8A, suitable for industrial automation and control applications.
The relay is engineered to operate reliably within a temperature range of -20°C to 70°C, making it ideal for use in various industrial environments including manufacturing lines, transportation systems, and X-ray equipment.
The device has a compact form factor with dimensions of 70mm in length and 75mm in height, and a light weight of 40g which minimizes mechanical strain on mounting surfaces. Screw terminals ensure secure electrical connections, and the gold-plated contacts offer superior corrosion resistance and durability.
A built-in LED indicator allows operators to quickly verify operational status, significantly aiding troubleshooting and system monitoring. The snap-on DIN rail mounting facilitates straightforward and tool-free installation, reducing setup time.
With an IP20 rating, the relay is protected against ingress of objects larger than 12 mm, providing finger-safe use in industrial and commercial applications. The flame-resistant construction enhances safety by halting combustion in less than 10 seconds should a fire incident occur.
This ABB interface relay supports galvanic isolation between control and switching circuits to eliminate electrical noise and protect sensitive equipment.
Suitable for industrial, laboratory, manufacturing, transportation, and automation applications, this relay ensures safety and reliable signal transmission in demanding environments.
Operates at a coil voltage of 230V AC/DC with a coil current of 5mA. DPDT contact configuration supporting 8A switching current. Screw terminal type for electrical connections. Operating temperature range from -20°C to 70°C.
Compact dimensions and light weight of 40g. Built-in LED indicator for status monitoring. Snap-on DIN rail mounting for easy installation. IP20 rated for finger-safe protection. Gold-plated corrosion-resistant contacts. Flame-resistant design self-extinguishes in under 10 seconds.
Explore more ABB products in Interface Relay category at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 230V AC/DC.
It has a switching current capacity of 8A.
This model features a double-pole double-throw (DPDT) contact configuration.
The coil current rating is 5mA.
The relay has dimensions of 70mm in length and 75mm in height, with a weight of approximately 40g.
It operates reliably within a temperature range of -20°C to 70°C.
This relay features snap-on DIN rail mounting for easy and tool-free installation.
It uses screw terminals for secure electrical connections.
Yes, it includes a built-in LED indicator for easy status monitoring.
The relay has an IP20 rating, providing finger-safe protection against objects larger than 12mm.
It complies with RoHS standards.
This relay is suitable for industrial automation, control applications, manufacturing lines, and transportation systems.
