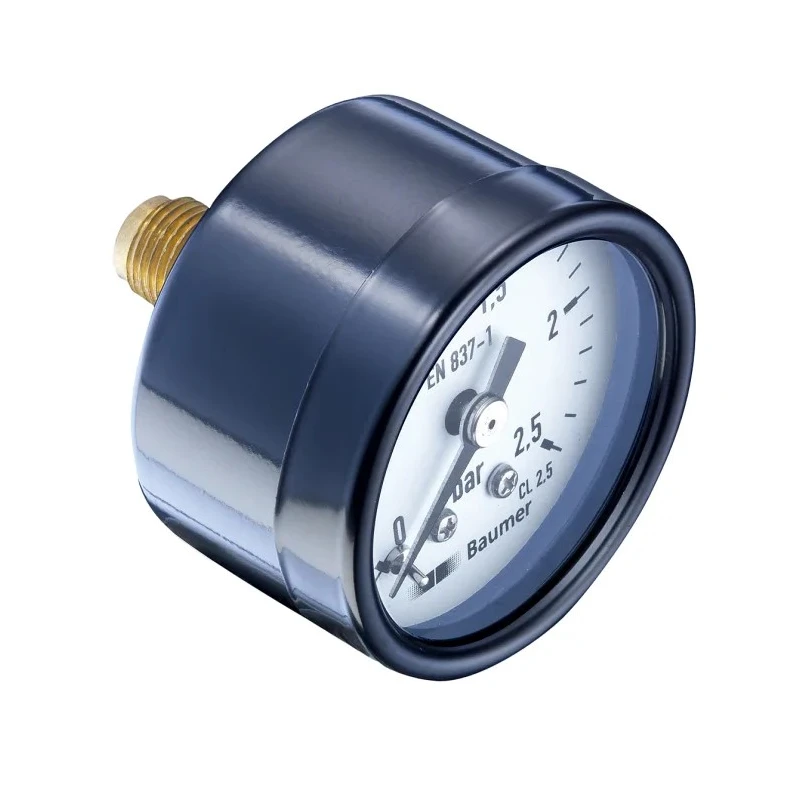

Bourdon 40 mm G 1/8 Pressure Gauge 2.5 bar MAT1-F10.B18

Bourdon MAT1-F10.B18 is a reliable 40 mm diameter pressure gauge designed for measuring pressures up to 2.5 bar with an accuracy of ±2.5%. The gauge features a black painted steel case and a black and white dial for clear reading. It uses a cupreous metal Bourdon tube with a welded tube connection assembly, combined with a brass connection sized at G 1/8 and located at the back entry point.

The gauge complies with industry standards EN 837-1 and PED 97/23/CE, ensuring quality and safety in measurement. It operates effectively at temperatures up to 70°C, making it versatile for a range of industrial applications including compressed gas systems, lubricating circuits, and hot or cold water networks.

The black aluminium knife-edge pointer and Kostil technopolymer dial enhance readability and durability in industrial environments. This product is manufactured in China and is suitable for users needing precise and robust pressure measurement instrumentation.

Black painted steel case for mechanical protection. Accuracy class of ±2.5 % for dependable measurement results. Back entry G 1/8 connection allows for flexible installation. 40 mm dial size with contrast black and white coloration for ease of use.

Maximum operating temperature rating at 70°C supports various fluid power applications. Compliance with EN 837-1 and PED 97/23/CE ensures regulatory conformity. Applications include pneumatic and hydraulic pressure measurement in industrial, laboratory, manufacturing, and water treatment environments.
