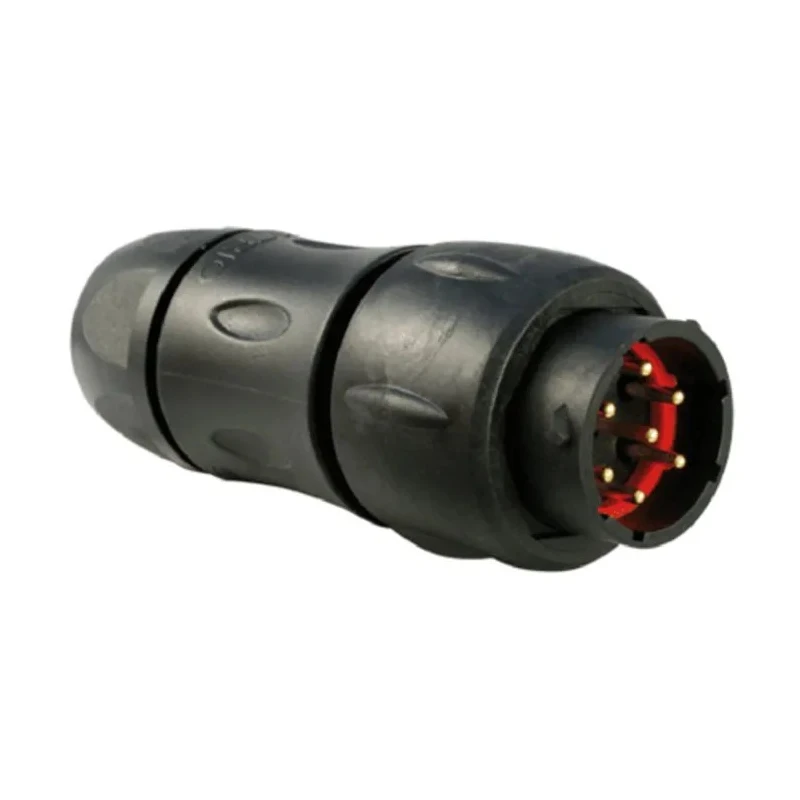

Souriau Sunbank by Eaton Industrial Circular Connector 7 Contacts Cable Socket Male 300V 15A Thermoplastic UTS1JC1477P

Souriau Sunbank by Eaton UTS1JC1477P industrial circular connector is a high-quality, 7-contact cable-mounted socket with a male contact gender configuration. This connector is part of the UTS series designed under IEC61140 standards for Class II and double insulated equipment, suitable for demanding industrial and outdoor applications requiring robust waterproofing and durability.

The connector offers IP68 and IP69K ingress protection, allowing continuous underwater immersion and resistance to high-pressure water jets, making it ideal for environments exposed to water, dust, and harsh weather conditions. The housing is constructed from thermoplastic material that is UV resistant to withstand prolonged outdoor exposure without degradation.

The male socket connector features 15A current rating and 300V voltage rating, with gold-plated copper contacts for superior electrical performance and resistance to corrosion. The shell size 14 connector includes a quick connect termination type, providing ease of wiring and installation in the field.

This UTS series connector employs a bayonet 1/3 coupling mechanism, delivering a quick, reliable mating process confirmed by an audible click. The ergonomic design facilitates comfortable handling and operation during installation and maintenance tasks. Additionally, the keying system prevents improper mating, enhancing safety and reliability in critical power and signal applications.

With an operating temperature range from -40°C to 105°C, this connector is built to endure extreme temperature variations, making it a dependable solution for solar energy systems, outdoor lighting fixtures, fiber to the home/access applications (FTTH/FTTA), off-road machinery, and measurement and instrumentation sectors.

Designed according to IEC61140 for Class II and double insulated equipment. Certified IP68/IP69K rated waterproof protection for robust use. UV resistant thermoplastic housing suitable for outdoor applications. Quick connect termination type and bayonet coupling for efficient assembly.

Gold plated copper contacts for enhanced electrical conductivity. Operates reliably between -40°C to 105°C ambient temperatures. Ergonomic and keyed design to prevent mating errors and ease handling. Ideal for solar, lighting, FTTH/FTTA, off-road, and instrumentation uses.
