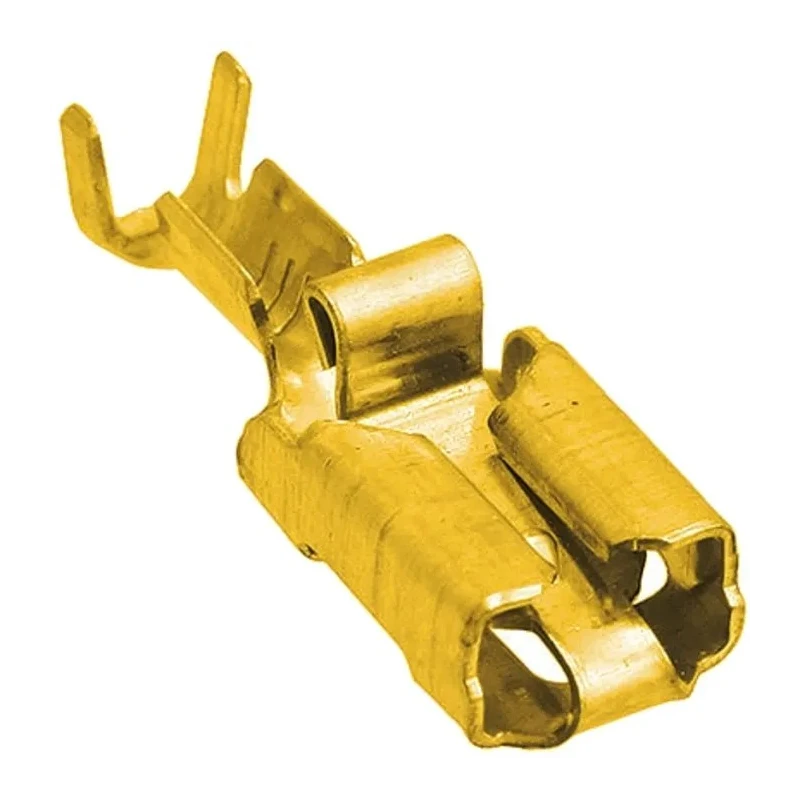

TE Connectivity Positive Lock .250 Mk I Yellow Uninsulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 160759-1

TE Connectivity 160759-1 Positive Lock .250 Mk I Yellow Uninsulated Female Spade Connector provides a robust and reliable solution for electrical connections using crimp termination techniques. This connector offers a tab size of 6.35 x 0.8 mm and is designed to accept wire sizes ranging between 20 AWG and 16 AWG, supporting wire cross-section areas from 0.5 mm² to 1.5 mm².

Manufactured from high-quality brass, the contact is plated with tin to improve resistance to corrosion and to ensure excellent electrical conductivity over extended periods. The yellow color coding assists in quick identification and proper wire gauge matching. Being uninsulated, it facilitates easy and direct crimping without the need for additional insulation covers.

The connector features a straight orientation and has an overall length of 22.3 mm. It belongs to the Positive Lock .250 Mk I series, well-known for its reduced insertion force and snap action locking mechanism that ensures secure mating with matching tab terminals, which may include holes or dimples for mechanical locking. The integral depressor design allows detachment only when intentionally operated, enhancing safety and connection integrity.

This Spade Connector is suitable for various industrial and commercial applications including electrical wiring, power distribution, and control systems where secure and durable connections are mandatory. Its design aligns with standard engineering requirements for wire terminations in electronic and electrical components.

Constructed from brass for durability and reliable electrical conductivity. Features tin plating for corrosion resistance and long service life. Yellow color denotes specific wire gauge compatibility and identification. Uninsulated design allows straightforward crimp connection without additional insulation materials.

Straight orientation ensures efficient and practical installation in electrical assemblies. Overall length of 22.3 mm provides compact and effective connector size. Part of the Positive Lock .250 Mk I series offering snap action locking for secure connections.

Accepts wire size range from 20 AWG (0.5 mm²) to 16 AWG (1.5 mm²) to accommodate varied wiring needs. No formal certifications or approvals listed, aligned with standard industrial electrical applications. Explore the wide range of TE Connectivity solutions on EnvMart for reliable connectors and accessories suitable for electronic and power management requirements.
