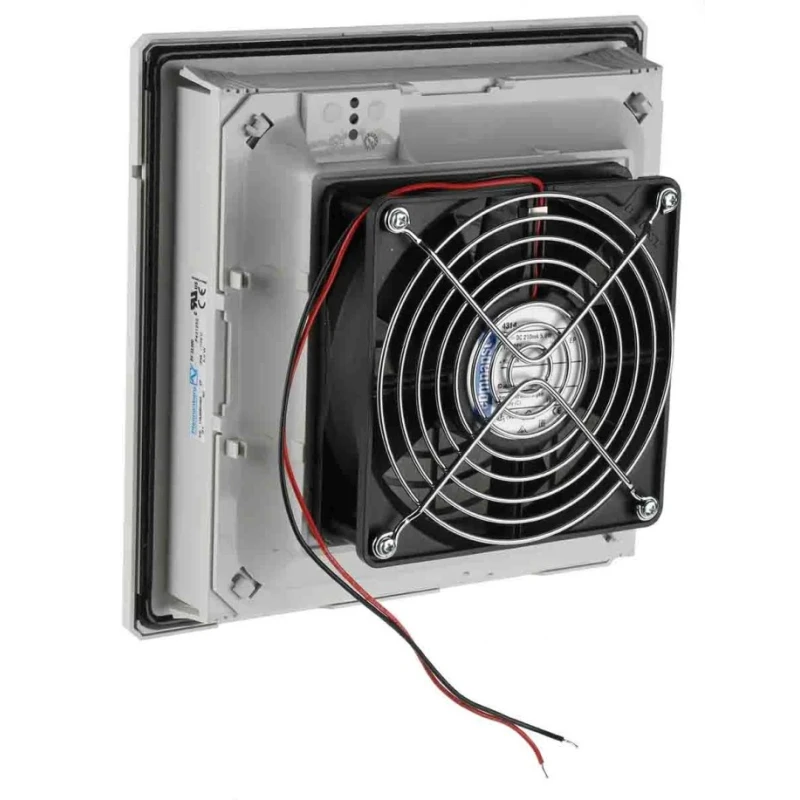

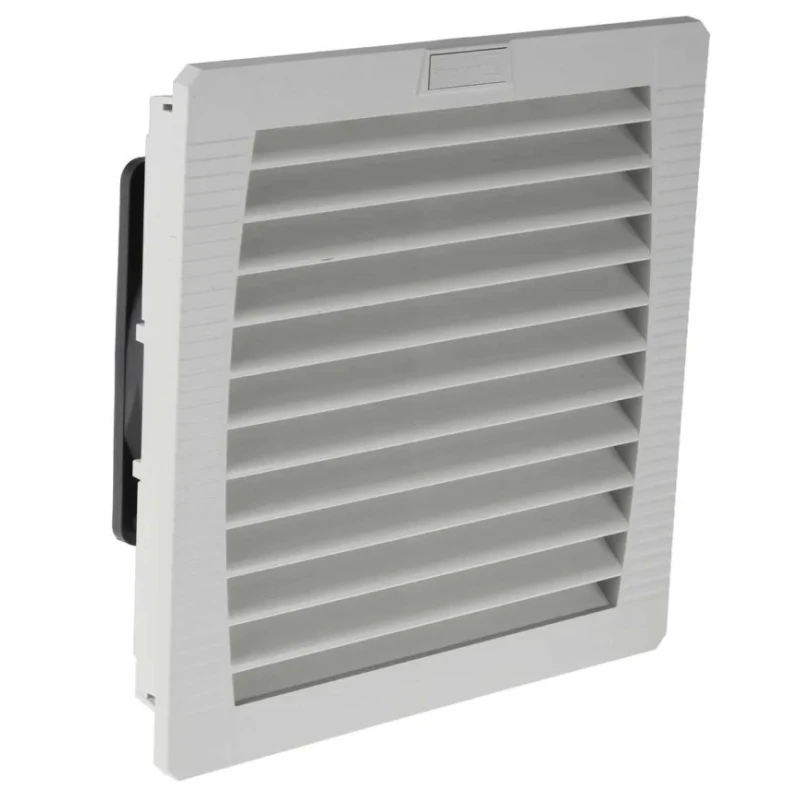

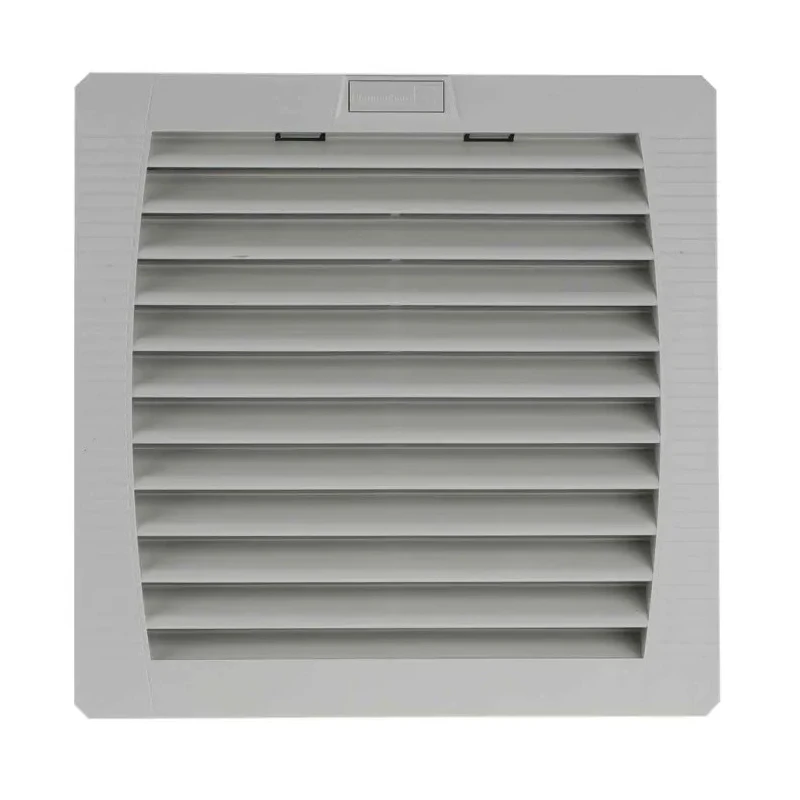

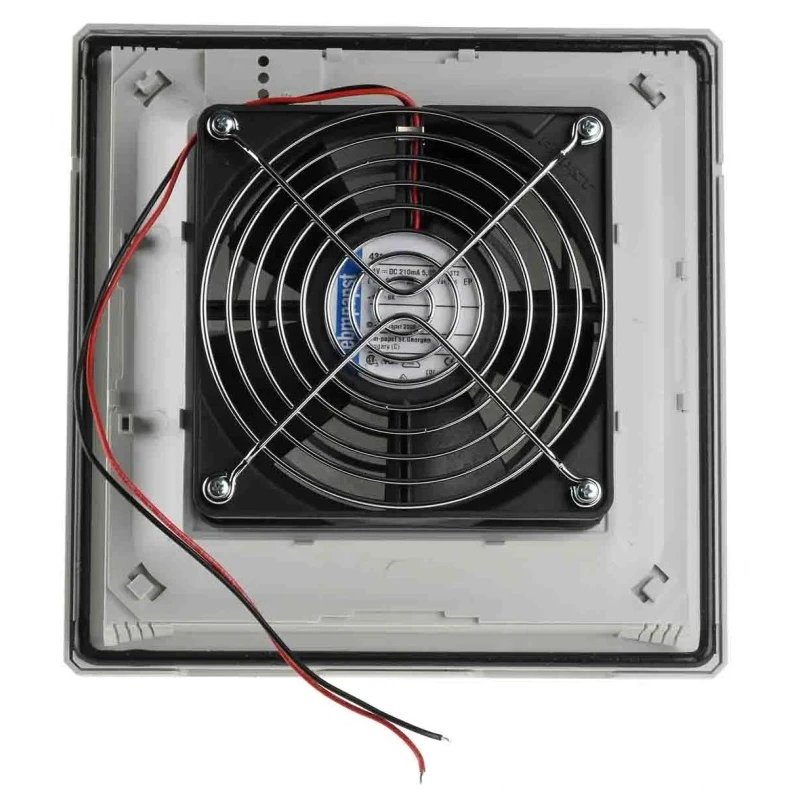

Pfannenberg PF 32.000 Series Filter Fan 24V DC 5W 110 m³/h Filtered Airflow IP54 202 mm Face Size IP54
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Pfannenberg |
| Colour | RAL 7035 (except Manu Part No suffix 50 : RAL 9011 / Black) |
| Model | IP54 |
| IP Rating | IP54 |
| Noise Level | 40dB |
| Series | PF 32.000 |
| Configuration | Flatpack |
| Input power | 5W |
| Installation Depth | 87mm |
| Input current | 210mA |
| Supply Voltage | 24V dc |
| Bearing Type | Ball |
| Standards/Approvals | cUL, RoHS, ISO, EN, UL |
| AC or DC Operation | DC |
| Unimpeded Air Flow | 178.5m³/h |
| Filtered Air Flow | 110m³/h |
| Face Height | 202mm |
| Face Width | 202mm |
Key Features
- Extremely high air flow performance with 178.5 m³/h unimpeded airflow.
- Filtered air flow rated at 110 m³/h offers effective filtration to IP54 standards.
- Operates on 24V DC power with a low input current of 210mA and 5W power consumption.
- Noise level measured at a quiet 40dB ensuring low acoustic disturbance.
- Flatpack configuration with ball bearing for extended durability and reliable operation.
- Features patented pleated fabric filter and patented water and dust pre-separation technology.
- “Click and Fit” design ensures quick, hardware-free installation and easy filter replacement.
- Reversible unit capable of air intake or extraction for flexible mounting.
Product Description
Pfannenberg PF 32.000 Series Filter Fan, model PF 32.000, is engineered for high air flow efficiency in industrial environments. Operating at 24V DC with a 5W input power, this filter fan provides 110 m³/h filtered air flow while allowing an unimpeded air flow of 178.5 m³/h. The face size is 202 mm by 202 mm, with an installation depth of 87 mm, and features an IP54 ingress protection rating. It is designed to filter dust and water effectively using a new pleated fabric filter combined with patented pre-separation lamellas that reduce water and dust reaching the filter mat, extending its service life and reducing maintenance frequency.
The PF 32.000 series includes a patented 4-corner locking system and a reversible design, allowing installation for either air intake or outlet positions. The innovative “Click and Fit” design facilitates hardware-free mounting and simple filter mat replacement, significantly reducing downtime in industrial applications. Furthermore, the terminal cage clamp design allows wiring orientation changes via 90° steps for installation flexibility.
This series complies with multiple international standards including cUL, RoHS, ISO, EN, and UL, guaranteeing reliable and safe operation. The filter fan’s ball bearing construction enhances durability for long-term continuous operation. The noise level is kept minimal at 40dB, balancing performance with acoustic comfort.
This product is manufactured in Germany, featuring a RAL 7035 color (light grey) finish, with specific variant colors for certain part number suffixes. The unit is suitable for industrial, electrical, HVAC, and automation applications requiring efficient enclosure ventilation and dust filtration.
Extremely high air flow with patented patented water and dust pre-separation technology. Reversible airflow unit with user-friendly click and fit installation system. Quiet operation at 40dB noise level. Compliance with international safety and quality standards.
Durable ball bearing design for enhanced lifespan. IP54 ingress protection for resistance against dust and water splashes. Flexible wiring orientation with terminal cage clamp design. Suitable for industrial and HVAC filter fan applications.
Explore more industrial Filter Fans and cooling solutions at EnvMart for your specialized ventilation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PF 32.000 series filter fan provides a filtered air flow capacity of 110 m³/h.
This model has an unimpeded air flow rating of 178.5 m³/h.
The filter fan operates on 5W of input power.
It operates on a supply voltage of 24V DC.
The noise level of the PF 32.000 filter fan is measured at a quiet 40dB.
The face size of the filter fan is 202 mm by 202 mm.
The installation depth for this model is 87 mm.
The PF 32.000 filter fan has an IP54 ingress protection rating, making it resistant to dust and water splashes.
This model features a ball bearing construction for enhanced durability.
It includes a patented 4-corner locking system and a 'Click and Fit' design for easy hardware-free installation and filter replacement.
The filter fan complies with multiple international standards including cUL, RoHS, ISO, EN, and UL.
Yes, this model is designed to be reversible, allowing for both air intake and extraction installations.
