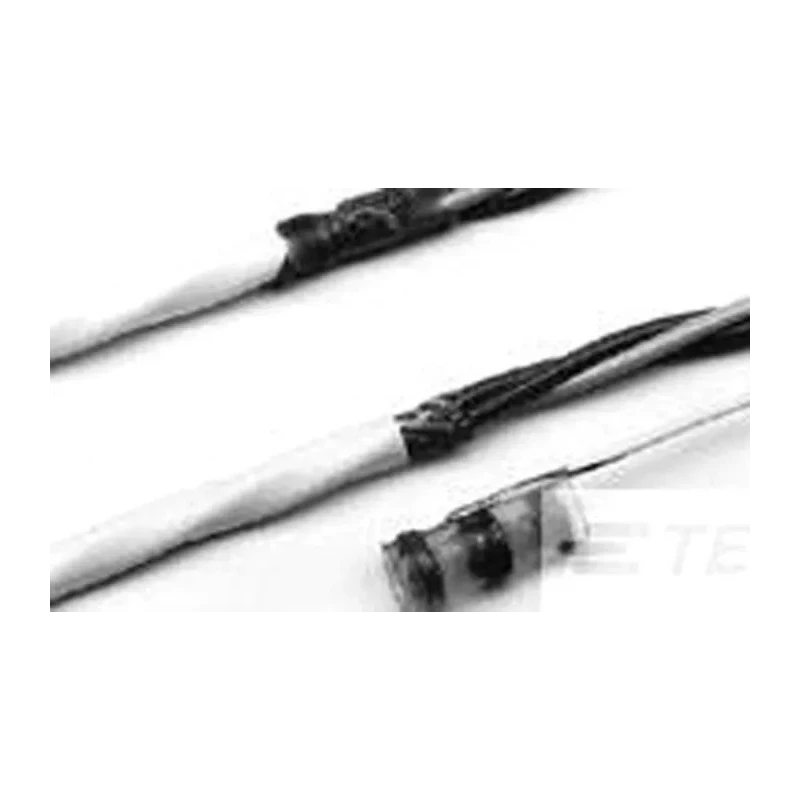

TE Connectivity Natural Polyvinyl Fluoride Solder Sleeve 19.05mm Length 6.48 mm Max Cable Diameter 3.18 mm Min D-142-56

TE Connectivity D-142-56 natural polyvinyl fluoride solder sleeve features a 19.05 mm length and supports cables with diameters ranging from 3.18 mm minimum to 6.48 mm maximum. This terminator-type solder sleeve is designed to provide reliable, insulated, and mechanically robust soldered connections for cable joints.

Made from durable polyvinyl fluoride material, the sleeve offers superior chemical resistance and excellent dielectric strength rated at 2kV. It shrinks at 105°C to tightly seal soldered connections, ensuring protection against mechanical stress and environmental factors.

Operating temperature ranges from -55°C to 125°C allow this product to function efficiently in diverse industrial settings. It adheres to ANSI J-STD-004 and ANSI J-STD-006 standards, making it well suited for demanding applications, including aerospace and military sectors, with approvals such as NAS-1745 and MIL-STD-105, except for D-142-65.

The natural-colored sleeve allows for clear visual inspection of the solder joint for quality assurance purposes. The D-142 series compact terminals facilitate earth tag creation on screened cables and are compatible with multiple dielectric and insulating materials, including heat-sensitive types.

This product is manufactured in Mexico under strict quality control to ensure reliability and consistency. It provides an easy-to-use solution for creating insulated solder joints by simply placing the terminal and wire together and applying heat via a hot air gun, making it ideal for industrial, manufacturing, electrical, and aerospace cable assembly applications.

The solder sleeve offers excellent electrical insulation with 2kV dielectric strength. Constructed using high-quality polyvinyl fluoride material for durability and chemical resistance. Operates reliably between -55°C and 125°C operating temperature range.

Shrinks at 105°C to provide secure and protected cable joints. Compliant with ANSI J-STD-004 and ANSI J-STD-006 industry standards. Suitable for use in harsh environments including aerospace and military applications. Natural color allows easy visual inspection of solder joint quality.

Series D-142 is compatible with various insulating materials including heat-sensitive types. Explore the range of TE Connectivity solder sleeves and cable accessories in the Electronics & Electricals category at EnvMart for your cable joint and wiring needs.
