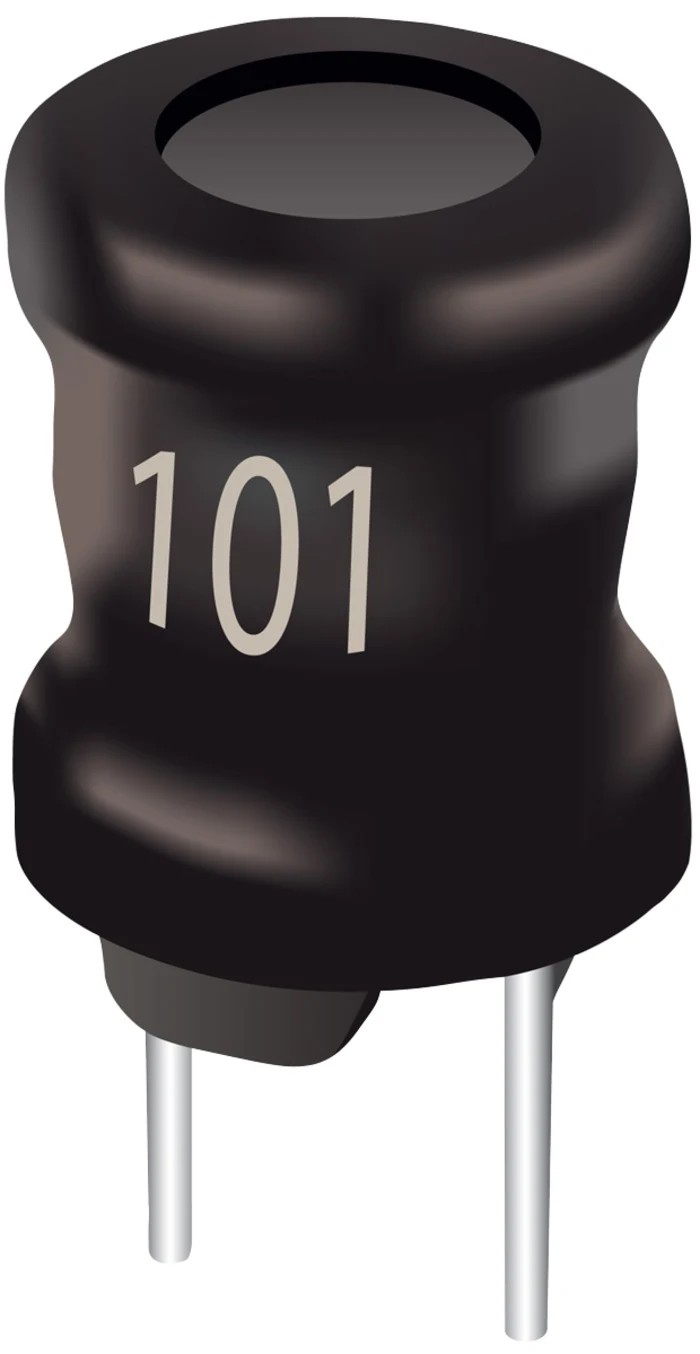

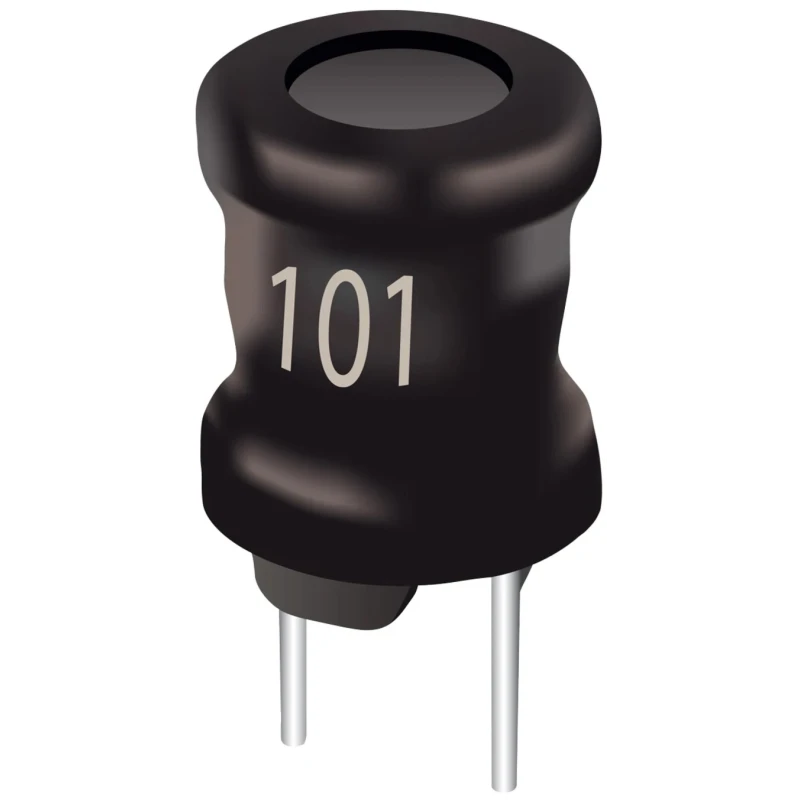

Bourns 1.2 mH Ferrite Leaded Inductor Radial Mount 130 mA Max DC Current 4 Ω Rdc 1.1 MHz Max SRF RLB0913
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8.5mm |
| Brand | Bourns |
| Height | 12.5mm |
| Length | 17.5mm |
| Model | RLB0913 |
| Depth | 12.5mm |
| Packaging | Tray |
| Mount Type | Radial |
| Series | RLB0913 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Test Frequency | 0.25MHz |
| Core Material | Ferrite |
| Inductance | 1.2mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 130mA |
| Maximum DC Resistance | 4Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Radial Lead |
| Maximum Self Resonant Frequency | 1.1MHz |
| Minimum Quality Factor | 50 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.65mm |
| Bourns 1.2 mH Ferrite Leaded Inductor, Max SRF | 1.1 MHz, Q:50, 130 mA Idc, 4 Ω Rdc, RLB0913 |
Key Features
- Inductance rated at 1.2 mH with ±10% tolerance.
- Maximum DC current rating is 130 mA ensuring stable operation.
- Maximum DC resistance of 4 Ω minimizes power losses.
- Constructed with ferrite core material for effective electromagnetic performance.
- Maximum self-resonant frequency of 1.1 MHz enhances filtering capabilities.
- Radial lead termination style with 0.65 mm lead diameter and 5 mm lead pitch.
- Compact dimensions of 17.5 mm length, 8.5 mm diameter, 12.5 mm height and depth.
- Suitable for use in DC-DC converters, power supplies, EMI/RFI filters, and output chokes.
Product Description
Bourns RLB0913 1.2 mH Ferrite Leaded Inductor is a precision radial mount inductor designed for reliable performance in electronic power management applications. With an inductance of 1.2 mH and tolerance of ±10%, it ensures consistent operation in circuits requiring stable inductive components.
This inductor features a ferrite core to provide low loss and high magnetic permeability, suited for filtering and energy storage in DC-DC converters, power supplies, EMI/RFI filters, and output chokes. Its radial lead design with a 0.65 mm lead diameter and 5 mm lead pitch allows easy PCB mounting and secure electrical connections.
The component supports a maximum DC current of 130 mA and a maximum DC resistance of 4 Ω, balancing current handling with minimal power dissipation. The device has a maximum self-resonant frequency (SRF) of 1.1 MHz, optimizing performance in high frequency filtering applications. Its quality factor (Q) of 50 enhances selectivity and reliability in signal processing.
Physically, it measures 17.5 mm in length, with an 8.5 mm diameter and 12.5 mm height and depth, making it compact for various circuit board layouts. The operating temperature range from -55°C up to 125°C makes it suitable for demanding industrial and commercial electronic environments.
Bourns inductors comply with RoHS standards, ensuring environmentally responsible manufacturing and material usage. Packaged in trays, these inductors are ideal for mass assembly and high volume production.
Inductance: 1.2 mH ±10% tolerance. Maximum DC current: 130 mA. Maximum DC resistance: 4 Ω. Ferrite core material for efficient magnetic properties. Radial lead termination with 0.65 mm lead diameter. Maximum self-resonant frequency of 1.1 MHz.
Compact dimensions: 17.5×8.5×12.5 mm. Operating temperature range: -55°C to 125°C. RoHS compliant manufacturing process.
This product is widely used in industrial, laboratory, power supply, and electronic manufacturing applications where precise inductance and reliable filtering are critical. For detailed design integration, Bourns provides technical documents and 3D models accessible via their platform.
Explore more Bourns Leaded Inductors and passive electronic components at EnvMart to meet diverse design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance of 1.2 mH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 130 mA.
The maximum DC resistance of this unit is 4 Ω, which helps minimize power losses.
It has a maximum self-resonant frequency of 1.1 MHz, enhancing its filtering capabilities.
The dimensions are 17.5 mm in length, 8.5 mm in diameter, and 12.5 mm in height and depth.
It features a lead diameter of 0.65 mm and a lead pitch of 5 mm.
The operating temperature range is from -55°C to 125°C, making it suitable for various environments.
This inductor is constructed with a ferrite core material, which provides effective electromagnetic performance.
The minimum quality factor (Q) for this unit is 50, which enhances its selectivity in signal processing.
It uses a radial lead termination style for easy PCB mounting and secure electrical connections.
Yes, the Bourns RLB0913 complies with RoHS standards, ensuring environmentally responsible manufacturing.
