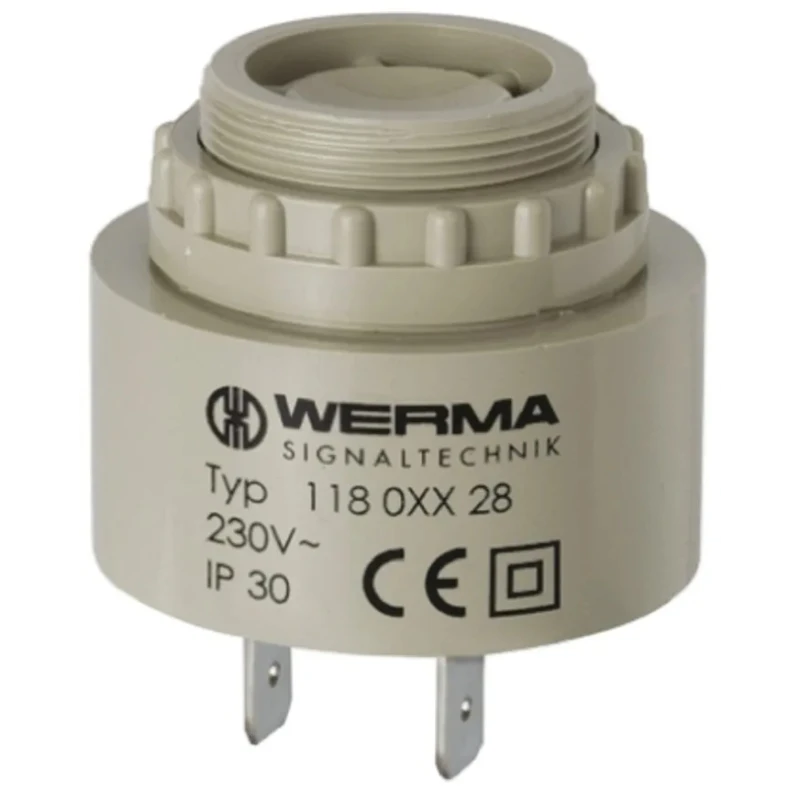

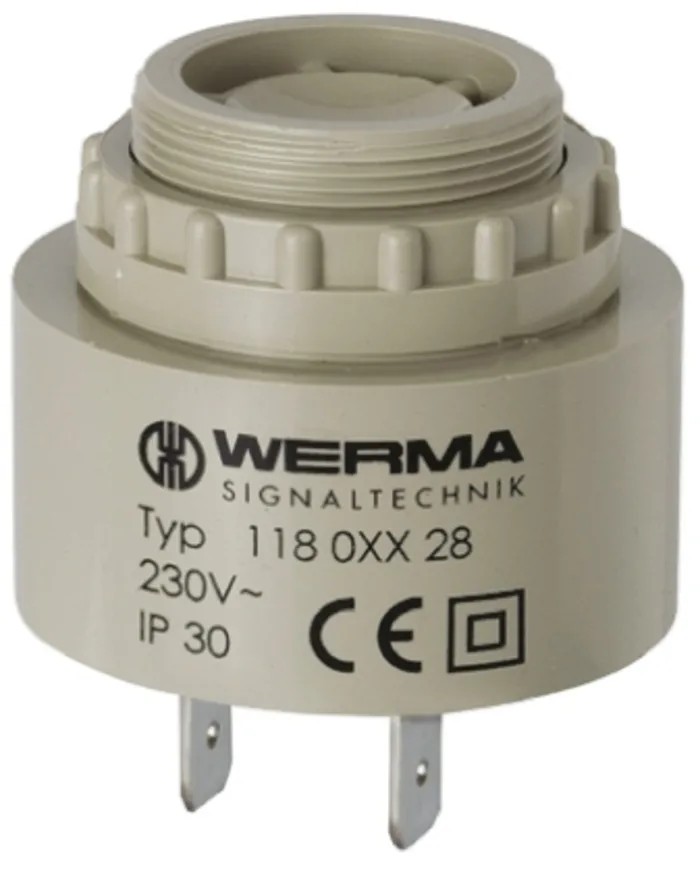

Werma Piezo Buzzer Component Panel Mount 230V AC 90dB Thermoplastic Housing 119.068.28

Werma 119.068.28 Piezo Buzzer Component is a panel mount electronic sounder designed for industrial automation and signaling applications. Operating at a maximum supply voltage of 230V AC, this buzzer produces a loud 90 dB sound output with slow pulse and continuous tones to effectively notify operators of machine states or alarm conditions.

The device features a compact footprint measuring 43 x 38 mm, enclosed in a durable thermoplastic PC/ABS housing that withstands temperatures up to 60°C, supporting reliable operation in demanding industrial environments. Its IP30 ingress protection rating guards against intrusion by tools or fingers larger than 2.5 mm, enhancing device longevity and safety.

This buzzer’s piezoelectric ceramic element and metal plate work together to generate vibrations that create audible sound waves when energized. The panel mount design allows straightforward installation without soldering thanks to three or more 6.3 x 0.8 mm faston connectors.

With a rated acoustic lifespan of over 5,000 hours, the Werma buzzer provides consistent performance for alarm systems in automotive applications, assembly plants, and general industrial signaling. The internal circuitry supports both slow pulse and continuous sound outputs for versatile use cases.

Panel mount electronic piezo buzzer component. Operates on 230V AC maximum supply voltage. Produces 90 dB sound output with slow pulse and continuous tone options. Heat-resistant PC/ABS housing rated for 60°C maximum operating temperature.

IP30 ingress protection against tools and small objects. Long acoustic lifespan of at least 5,000 hours. Faston terminals enable easy panel mounting installation. Suitable for alarm systems, automotive alerts, and assembly plants.

This Werma piezo buzzer is manufactured in Germany, complying with UL, RoHS, CSA, and CE standards, ensuring quality and safety for industrial and commercial use. Browse more devices in the Piezo Buzzer Component category at EnvMart for your automation and control gear needs.
